Product Details | SWITCH ACTUATOR ADAPTER

5930-00-489-2855 An adapter designed to be mounted on a switch so that the switch may be opened or closed by an action of force not adapted to directly actuate the integral switching mechanism. Does not include knobs. See also EXTENSION, SHAFT.

Part Alternates: MD3211Q21, 5930-00-489-2855, 00-489-2855, 5930004892855, 004892855

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG) NSN Assign. NIIN
59 27 JUN 1974 00-489-2855

Drawings & Photos | NSN 5930-00-489-2855


Cross Reference | NSN 5930-00-489-2855

Part Number Cage Code Manufacturer
MD3211Q21 91929 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-489-2855

Technical Data | NSN 5930-00-489-2855

Characteristic Specifications

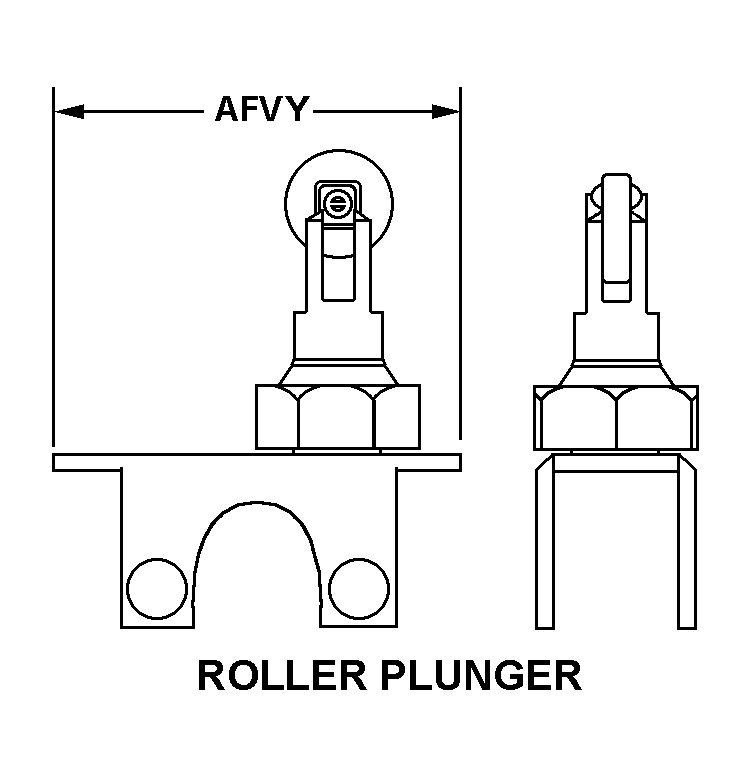

ACTUATOR ADAPTER STYLE 13 ROLLER PLUNGER
CENTER TO CENTER DISTANCE BETWEEN ADAPTER MOUNTING FACILITIES PARALLEL TO LENGTH 2.070 INCHES NOMINAL
MOUNTING METHOD UNTHREADED HOLE AND THREADED BUSHING
THREAD QUANTITY PER INCH 32
FEATURES PROVIDED NONADJUSTABLE
SPECIAL FEATURES WEAPON SYSTEM ESSENTIAL
CRITICALITY CODE JUSTIFICATION FEAT
III END ITEM IDENTIFICATION S-3A VIKING AIRCRAFT.

Restrictions/Controls & Freight Information | NSN 5930-00-489-2855

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:YThe item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061300 CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 658 unknown
Originating Activity Code TX Defense Supply Center Columbus
Columbus, OH 43218
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5930-00-489-2855

Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
