5930-00-489-2440 An item actuated by an external magnetic field and having two or more contacts inclosed in a sealed capsule. Do not use if switch has an actuator, such as a lever, push button, toggle, and the like. See SWITCH (as modified). For items provided with an operating coil, use RELAY (as modified). It includes items in which a contact may be moved into a mercury pool by a magnetic field.
Part Alternates: MR106, MR-106, MR1065585AMPERETURNS, MR106-55-85AMPERETURNS, S0326, 102314, 5930-00-489-2440, 00-489-2440, 5930004892440, 004892440
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAR 1972 | 00-489-2440 | 28945 ( SWITCH, REED ) |
Drawings & Photos | NSN 5930-00-489-2440
Cross Reference | NSN 5930-00-489-2440
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102314 | 06811 | BEI SENSORS & SYSTEMS COMPANY, INC. DBA SYSTRON DONNER INERTIAL |
| MR-106 | 95348 | GORDOS ARKANSAS INC |
| MR106 | 95318 | BRABANT BRASS MFG CO |
| MR106-55-85AMPERETURNS | 95348 | GORDOS ARKANSAS INC |
| S0326 | 06811 | BEI SENSORS & SYSTEMS COMPANY, INC. DBA SYSTRON DONNER INERTIAL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5930-00-489-2440
5930-00-489-2446, 5930-00-489-2494, 5930-00-489-2532, 5930-00-489-2543, 5930-00-489-2695
Technical Data | NSN 5930-00-489-2440
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 200.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 500.000 MILLIAMPERES RESISTIVE DC |

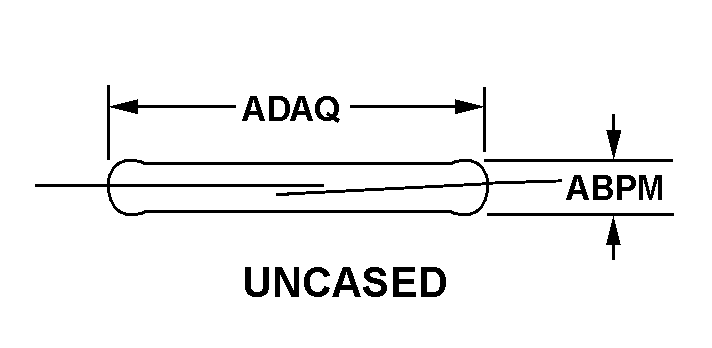

| BODY STYLE | 1L UNCASED |
