NSN 5930-00-421-9093 SCD800611, SCD8-006-11, EP205
Product Details | PROXIMITY SWITCH
5930-00-421-9093 A switch designed to perform the function of opening and/or closing one or more electrical circuits. The switching function is accomplished by means of separable contacts, semiconductor devices, or a combination of separable contacts and semiconductor devices. The item functions in response to electrical changes in its internal circuit caused by capacitance, inductance, or magnetic flux changes. It is activated by permanent magnets, metallic materials, or nonmetallic materials which come within its sensing range. For sensing switches which respond to changes other than capacitance, inductance, or magnetic flux, see SWITCH, AIRFLOW; SWITCH, CENTRIFUGAL; SWITCH, INERTIA; SWITCH, PRESSURE; SWITCH, PRESSURE-THERMOSTATIC; SWITCH, THERMOSTATIC; and SWITCH, TILT.
Part Alternates: SCD800611, SCD8-006-11, EP205, GS839DV5, 550056, 550-056, 5930-00-421-9093, 00-421-9093, 5930004219093, 004219093
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 FEB 1972 | 00-421-9093 | 35487 ( SWITCH, PROXIMITY ) |
Drawings & Photos | NSN 5930-00-421-9093
Demand History | NSN 5930-00-421-9093
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-421-9093 | 2024-08-232 | 38 | HK |
Cross Reference | NSN 5930-00-421-9093
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 550-056 | 66258 | MODERN CONTROLS CORPORATION |
| EP205 | 58657 | LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH |
| GS839DV5 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| SCD8-006-11 | 08748 | ELDEC CORPORATION DBA CRANE AEROSPACE & ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-421-9093
Technical Data | NSN 5930-00-421-9093
| Characteristic | Specifications |
|---|---|

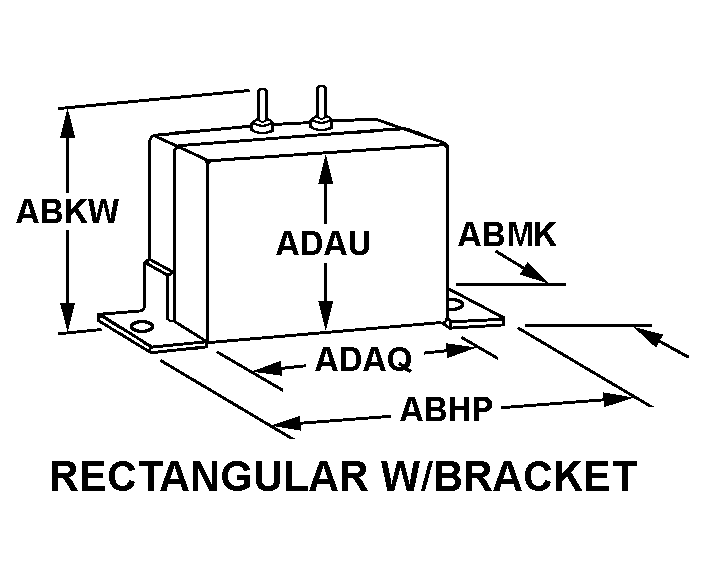

| STYLE DESIGNATOR | 11 RECTANGULAR W/BRACKET |
| OVERALL LENGTH | 2.100 INCHES NOMINAL |
| OVERALL HEIGHT | 0.770 INCHES MAXIMUM |
| OVERALL WIDTH | 1.330 INCHES NOMINAL |
| BODY LENGTH | 1.200 INCHES NOMINAL |
| BODY HEIGHT | 0.770 INCHES MAXIMUM |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE AND DEACTUATION POINT NOT ADJUSTABLE |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL SINGLE VOLTAGE |
| CONTACT LOAD CURRENT RATING | 200.0 MILLIAMPERES RESISTIVE LOAD AND 200.0 MILLIAMPERES INDUCTIVE LOAD AND 100.0 MILLIAMPERES LAMP LOAD SINGLE VOLTAGE |
| OPERATING TEMP RATING | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| TERMINAL TYPE | WIRE LEAD |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.218 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.660 INCHES NOMINAL |
| SPECIAL FEATURES | UTILIZED ON F-14A AIRCRAFT AND CONSIDERED A HIGHLY CRITICAL APPLICATION THAT INVOLVES SAFETY OF FLIGHT COMPETITION SHOULD BE RESTRICTED TO ELDEC CORP. |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III UNPACKAGED UNIT WEIGHT | 0.280 POUNDS |
Restrictions/Controls & Freight Information | NSN 5930-00-421-9093
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-421-9093
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
