NSN 5930-00-409-5609 600TQX5, 600-TQX5, 00-409-5609
Product Details | TOGGLE SWITCH
5930-00-409-5609 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: 600TQX5, 600-TQX5, 5930-00-409-5609, 00-409-5609, 5930004095609, 004095609
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 JUL 1970 | 00-409-5609 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-00-409-5609
Cross Reference | NSN 5930-00-409-5609
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 600-TQX5 | 01121 | ROCKWELL AUTOMATION, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-409-5609
Technical Data | NSN 5930-00-409-5609
| Characteristic | Specifications |
|---|---|

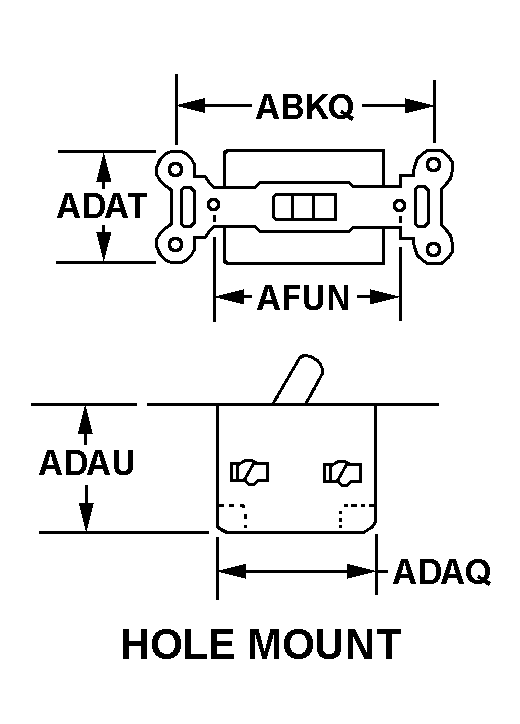

| BODY STYLE | 19P HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.281 INCHES NOMINAL |
| BODY WIDTH | 1.688 INCHES NOMINAL |
| BODY HEIGHT | 1.532 INCHES NOMINAL |

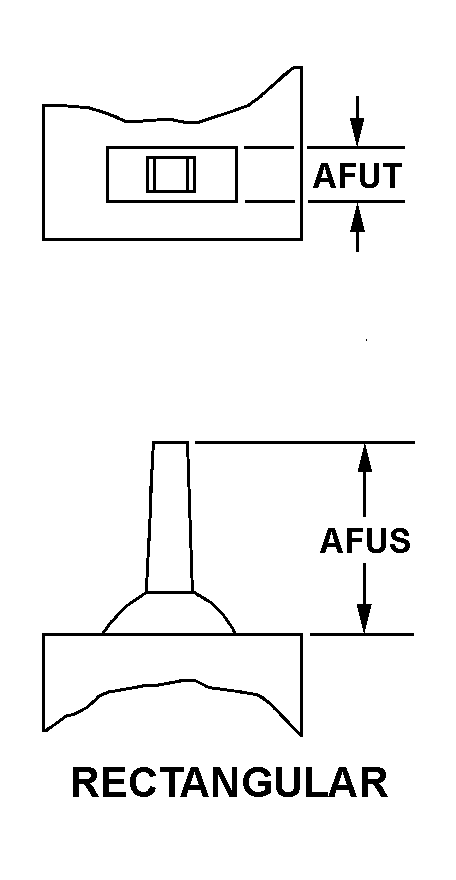

| ACTUATOR STYLE | 29 RECTANGULAR |
| ACTUATOR HEIGHT | 0.656 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.375 INCHES NOMINAL |
| ACTUATOR INSCRIPTION | ON-OFF SINGLE ACTUATOR |
| INCLOSURE TYPE | FULLY INCLOSED |
| III OVERALL LENGTH | 4.625 INCHES NOMINAL |
| III OVERALL WIDTH | 2.750 INCHES NOMINAL |
| III OVERALL HEIGHT | 2.188 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5930-00-409-5609
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-409-5609
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
