NSN 5930-00-400-1820 MS14104B, MS14-104B, M4022441

Product Details | PUSH SWITCH

5930-00-400-1820 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.

Part Alternates: MS14104B, MS14-104B, M4022441, M402244-1, M8805/23-003, M880523003, MIL-PRF-8805/23, MILPRF880523, MILS880523, MILS8805-23, 10126792 , 10511943, 140573, 1405-7-3, 14H104B, 4PB328T, 4PB714T2, 4PB714-T2, 4PB716T2, 4SJ681D, 4SJ6-81D, 5396 4116-714, 53964116714, 7530034402, 753-00344-02, 77C708616P003, 5930-00-400-1820, 00-400-1820, 5930004001820, 004001820

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	07 MAR 1969	00-400-1820	00406 ( SWITCH, PUSH )

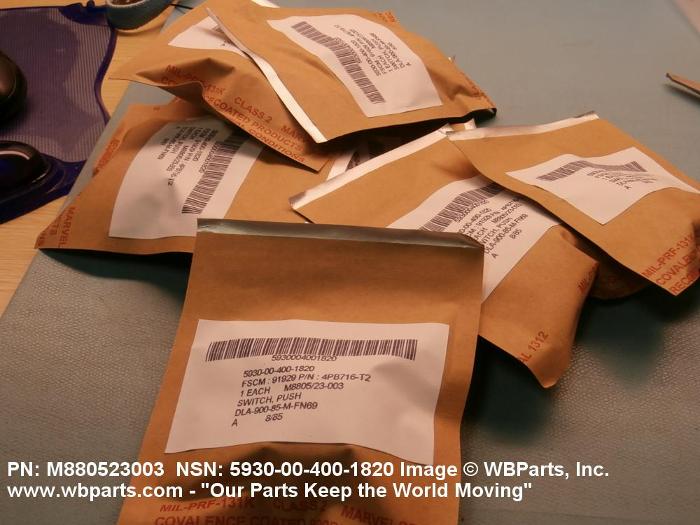

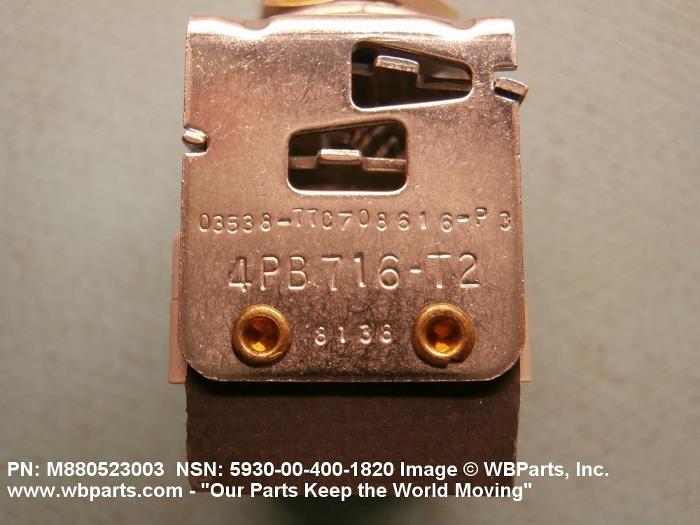

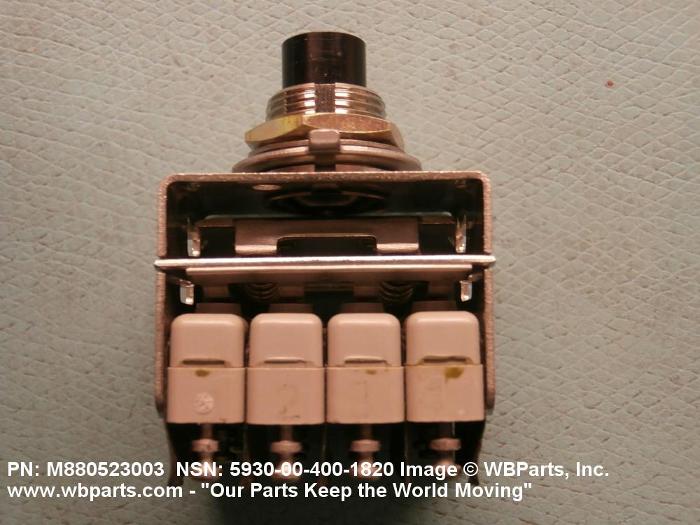

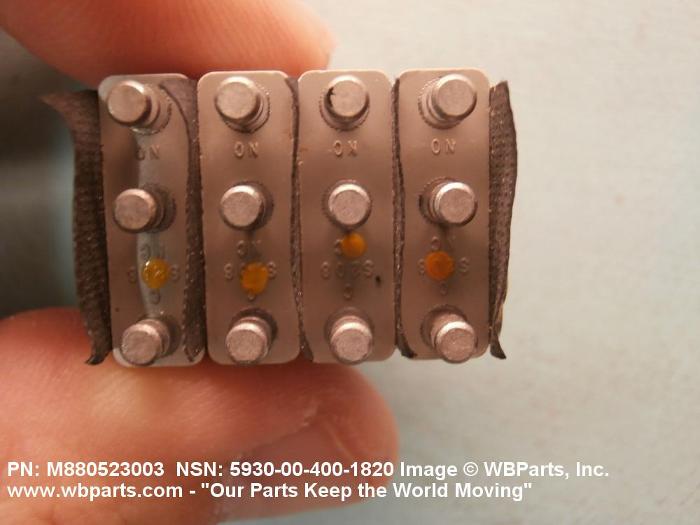

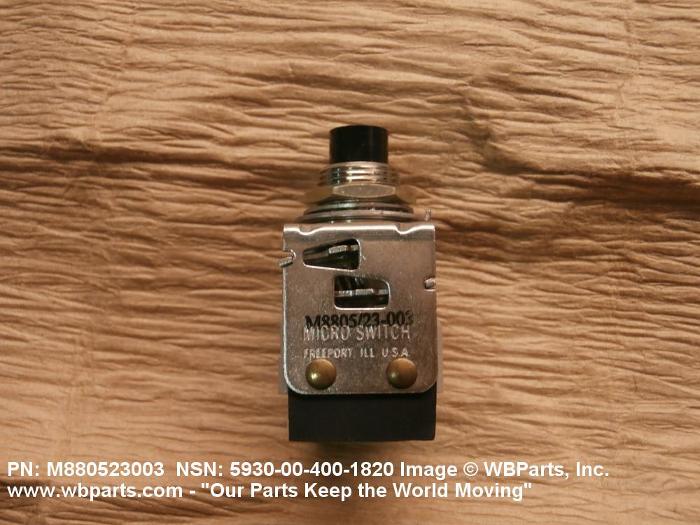

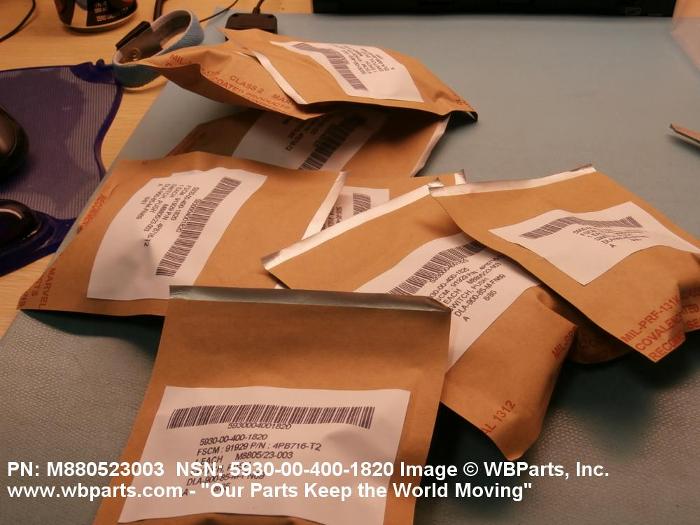

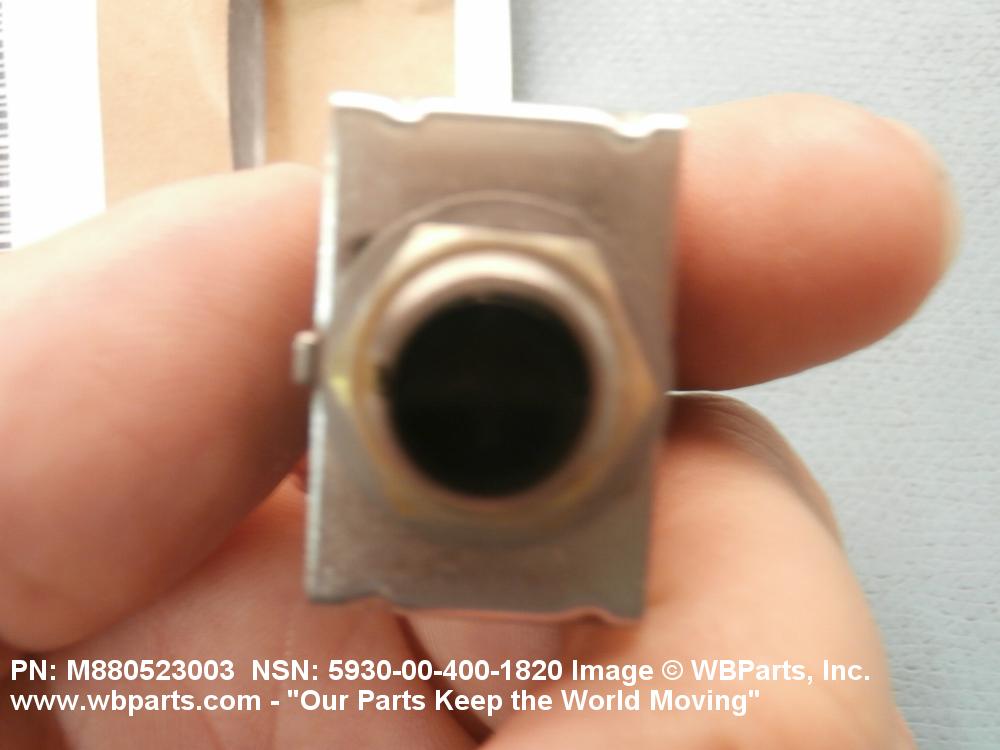

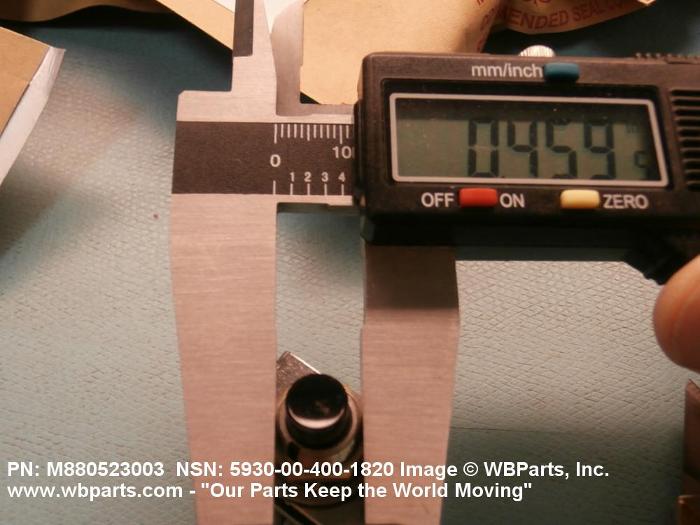

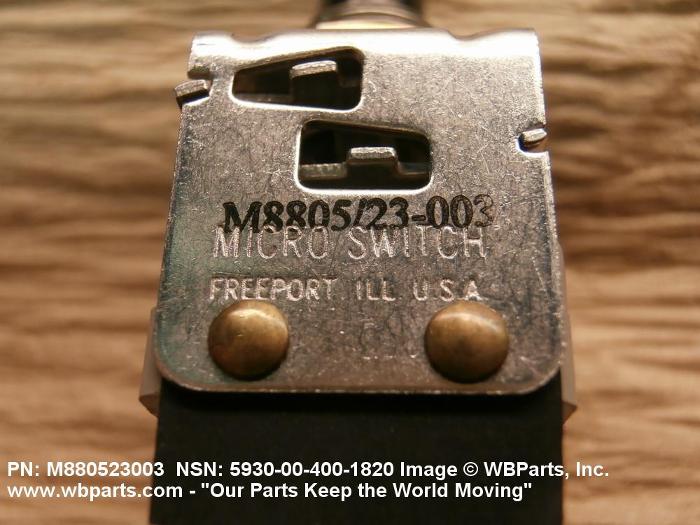

Drawings & Photos | NSN 5930-00-400-1820

Part Number	Request Date	QTY	Origin
5930-00-400-1820	2024-10-280	43	DIBBS
M880523003	2024-10-278	1	United States
M880523003	2024-10-278	1	United States
M880523003	2024-10-278	1	United States
M880523003	2024-08-242	4	United States
5930-00-400-1820	2024-06-165	54	DIBBS
5930-00-400-1820	2024-06-164	34	DIBBS
5930-00-400-1820	2024-05-127	46	DIBBS
5930-00-400-1820	2024-05-122	39	DIBBS
5930-00-400-1820	2024-04-120	13	DIBBS
5930-00-400-1820	2024-04-116	46	DIBBS
5930-00-400-1820	2024-04-109	13	DIBBS
5930-00-400-1820	2024-04-107	39	DIBBS
5930-00-400-1820	2024-02-57	7	DIBBS
5930-00-400-1820	2024-02-51	24	DIBBS
5930-00-400-1820	2024-02-36	24	DIBBS
5930-00-400-1820	2024-01-09	7	DIBBS
5930-00-400-1820	2023-12-359	7	DIBBS
5930-00-400-1820	2022-09-257	69	DIBBS
5930-00-400-1820	2021-09-271	48	DIBBS
5930-00-400-1820	2020-09-267	62	DIBBS
5930-00-400-1820	2020-01-16	89	DIBBS
5930-00-400-1820	2018-11-305	78	DIBBS
M880523003	2018-04-100	80	United States
5930-00-400-1820	2016-12-364	76	DIBBS
5930-00-400-1820	2016-12-353	76	DIBBS
4PB714T2	2015-06-156	18	US
5930-00-400-1820	2014-07-204	87	United States
5930-00-400-1820	2013-06-175	227	DIBBS
5930-00-400-1820	2012-11-316	137	DIBBS
4PB714T2	2012-07-193	8	US
M880523003	2012-07-192	8	United States
5930-00-400-1820	2011-08-213	102	DIBBS
5930-00-400-1820	2011-03-67	50	DIBBS
5930-00-400-1820	2011-02-39	52	DIBBS
5930-00-400-1820	2011-01-14	31	DIBBS
4PB714T2	2010-11-319	25	US
M880523003	2010-11-319	25	US
5930-00-400-1820	2010-09-263	37	DIBBS
5930-00-400-1820	2010-05-140	26	DIBBS
5930-00-400-1820	2008-09-270	36	DIBBS
5930-00-400-1820	2008-07-211	28	DIBBS
5930-00-400-1820	2007-04-106	40	DIBBS

Cross Reference | NSN 5930-00-400-1820

Part Number	Cage Code	Manufacturer
10511943	18876	U S ARMY AVIATION AND MISSILE COMMAND
1405-7-3	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
14H104B	96182	EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION
4PB328T	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
4PB714-T2	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
4PB716T2	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
4SJ6-81D	80207	C AND K COMPONENTS INC CLAYTON/UNIMAX DIV
5396 4116-714	S3465	BAE SYSTEMS HAGGLUNDS AB
753-00344-02	04773	GTE COMMUNICATION SYSTEMS CORP
77C708616P003	03538	LOCKHEED MARTIN CORPORATION DIV MST
77C708616P003	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M402244-1	8J967	CONDOR SYSTEMS INC EASTERN ENGINEERING AND DEVELOPMENT
M8805/23-003	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-PRF-8805/23	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILS8805-23	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS14-104B	96182	EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-400-1820

Compare

Related Products | NSN 5930-00-400-1820

5930-00-400-1823, 5930-00-400-1824, 5930-00-400-2798, 5930-00-400-2890, 5930-00-400-3390

Technical Data | NSN 5930-00-400-1820

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	4.000 AMPERES RESISTIVE DC AND 2.500 AMPERES INDUCTIVE DC AND 2.000 AMPERES LAMP DC AND 5.000 AMPERES RESISTIVE AC AND 5.000 AMPERES INDUCTIVE AC AND 1.500 AMPERES LAMP AC
BODY STYLE	13K BUSHING MOUNTED
BUSHING LENGTH	0.290 INCHES MINIMUM AND 0.330 INCHES MAXIMUM
BODY LENGTH	1.210 INCHES MAXIMUM
BODY WIDTH	0.850 INCHES MAXIMUM
BODY HEIGHT	5.000 INCHES NOMINAL
ACTUATOR DIAMETER	0.308 INCHES MINIMUM AND 0.338 INCHES MAXIMUM

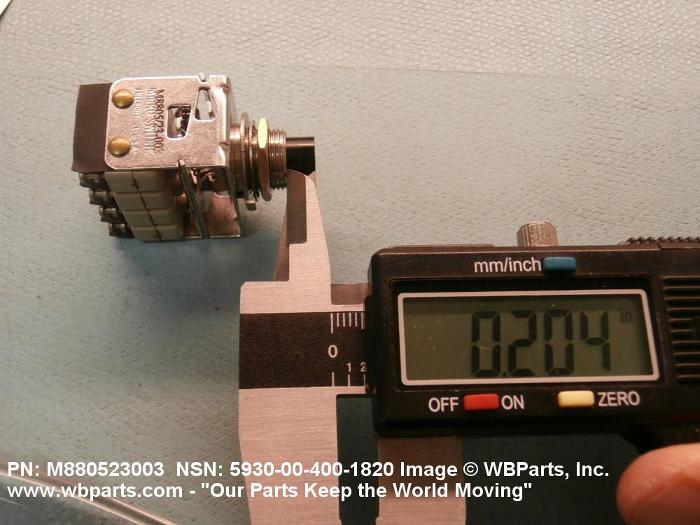

ACTUATOR HEIGHT	0.180 INCHES MINIMUM AND 0.220 INCHES MAXIMUM
ACTUATOR COLOR	BLACK SINGLE ACTUATOR
TERMINAL TYPE AND QUANTITY	12 TAB, SOLDER LUG
INCLOSURE TYPE	UNINCLOSED
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD QUANTITY PER INCH	32
THREAD PITCH DIAMETERS	0.4771 TO 0.4797 INCHES
TEST DATA DOCUMENT	81349-MIL-S-8805 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-S-8805/23 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-PRF-8805/23
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M8805/23-003

Restrictions/Controls & Freight Information | NSN 5930-00-400-1820

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-400-1820

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	T	Other Electronics Equipment
Weapons Systems/End Item or Homogeneous Group	TF	Gen Purp Elec Power
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
