NSN 5930-00-387-3025 24201H, 24201H1, 24201H3
Product Details | ROTARY SWITCH
5930-00-387-3025 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 24201H, 24201H1, 24201H3, 5930-00-387-3025, 00-387-3025, 5930003873025, 003873025
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 MAR 1974 | 00-387-3025 | 02134 ( SWITCH, ROTARY ) |

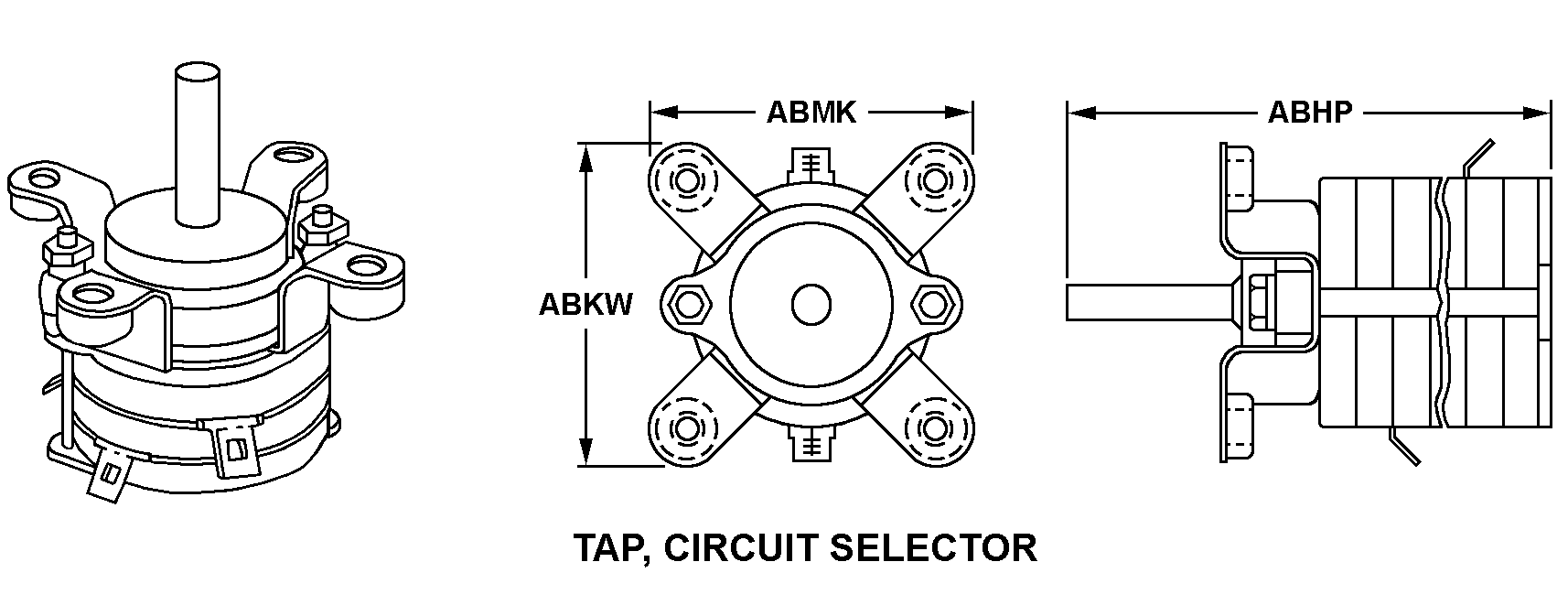

Drawings & Photos | NSN 5930-00-387-3025
Demand History | NSN 5930-00-387-3025
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-387-3025 | 2006-02-39 | 4 | DIBBS |
| 5930-00-387-3025 | 2005-12-356 | 8 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-387-3025
Related Products | NSN 5930-00-387-3025
Technical Data | NSN 5930-00-387-3025
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1 TAP, CIRCUIT SELECTOR |
| OVERALL LENGTH | 4.750 INCHES NOMINAL |
| OVERALL HEIGHT | 2.906 INCHES NOMINAL |
| OVERALL WIDTH | 2.813 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 2 SINGLE SECTION FRONT |
| THROW QUANTITY | 2 SINGLE SECTION FRONT |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES SINGLE SECTION FRONT |
| CONTACT VOLTAGE RATING IN VOLTS | 125.0 AC AT SEA LEVEL 500.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 20.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL 5.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 3 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 45.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| TERMINAL TYPE | TAB W/SCREW |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.221 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | ISOSCELES TRIANGLE SINGLE MOUNTING FACILITY |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.000 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SHORTEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.000 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 2.188 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | ACTUATOR KNOB |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | EXPLOSION PROOF |
| III KNOB MANUFACTURER CODE | 82121 |
