NSN 5930-00-328-0608 42YY23519, 42-YY-23519, 42YY23519ADJ
Product Details | ROTARY SWITCH
5930-00-328-0608 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 42YY23519, 42-YY-23519, 42YY23519ADJ, 885C954P0001, 885C954P1, 5930-00-328-0608, 00-328-0608, 5930003280608, 003280608
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 DEC 1973 | 00-328-0608 | 02134 ( SWITCH, ROTARY ) |

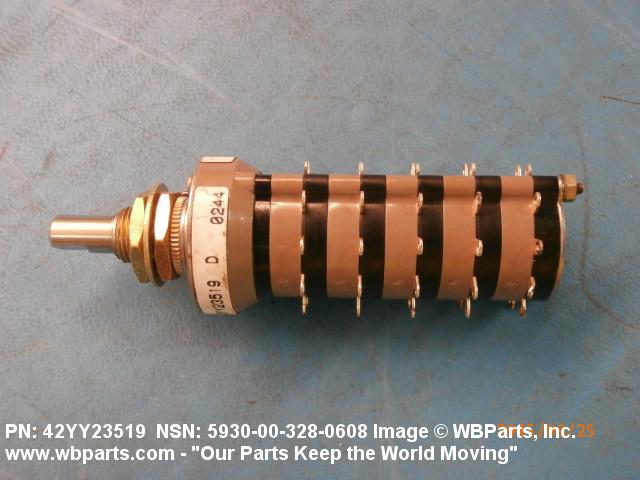

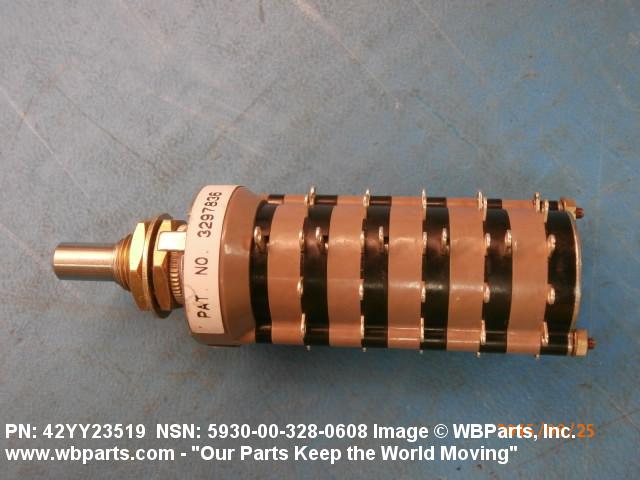

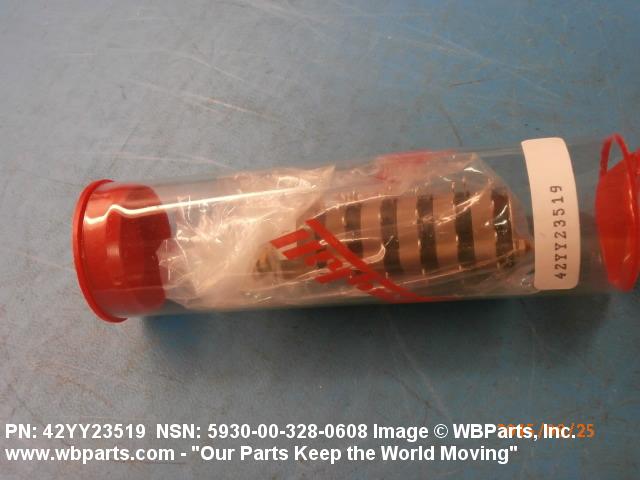

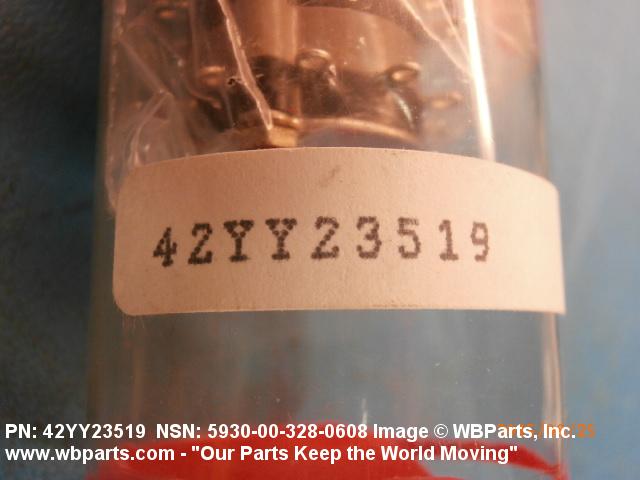

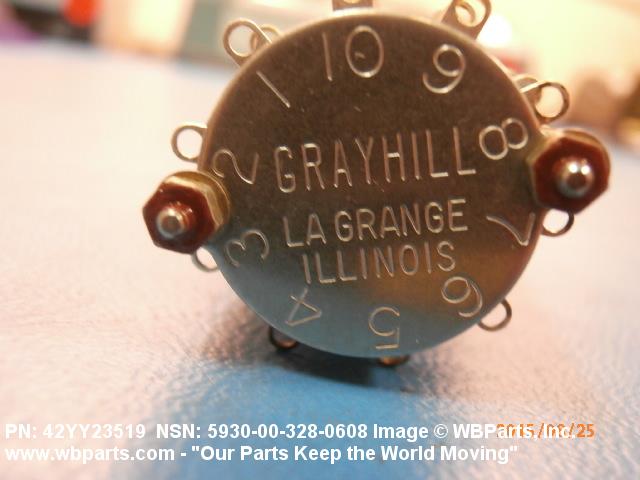

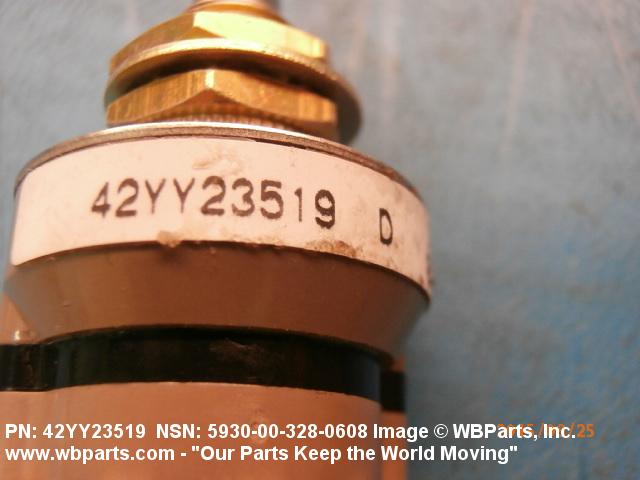

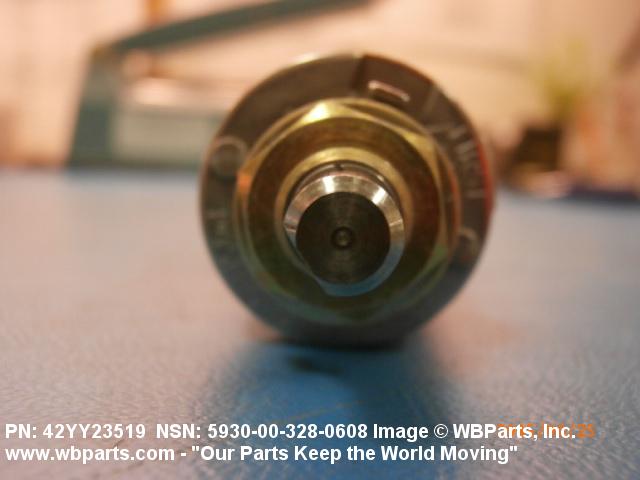

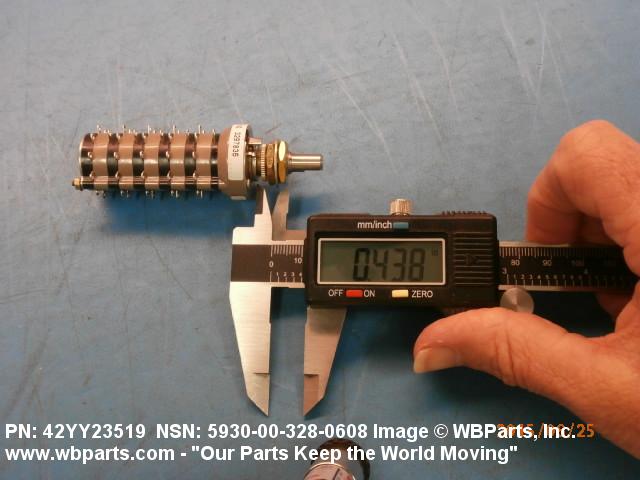

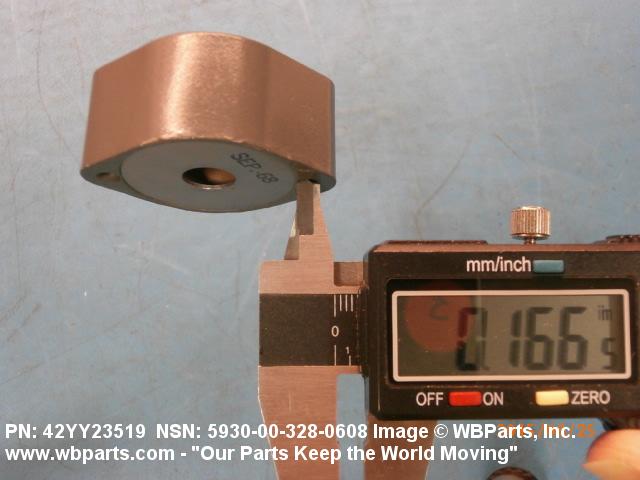

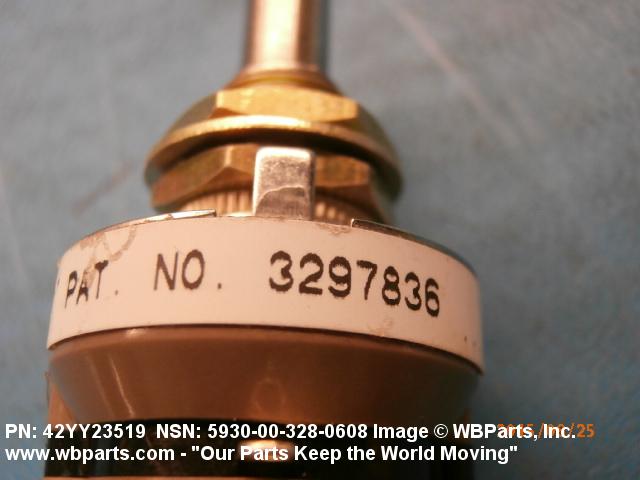

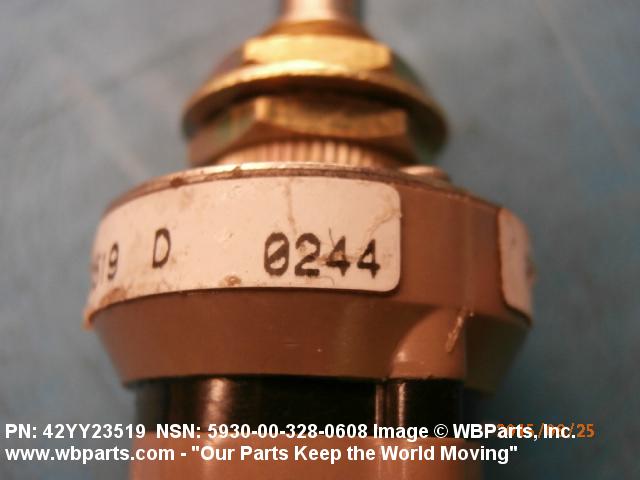

Drawings & Photos | NSN 5930-00-328-0608
Demand History | NSN 5930-00-328-0608
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 42YY23519 | 2015-08-226 | 1 | United States |
| 5930-00-328-0608 | 2013-02-32 | 13 | DIBBS |
| 5930-00-328-0608 | 2008-03-63 | 9 | DIBBS |
| 5930-00-328-0608 | 2007-06-169 | 9 | DIBBS |
| 5930-00-328-0608 | 2007-04-95 | 3 | DIBBS |
| 5930-00-328-0608 | 2007-03-67 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-328-0608
Related Products | NSN 5930-00-328-0608
Technical Data | NSN 5930-00-328-0608
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 9 TAP, CIRCULAR, BUSHING MOUNT |

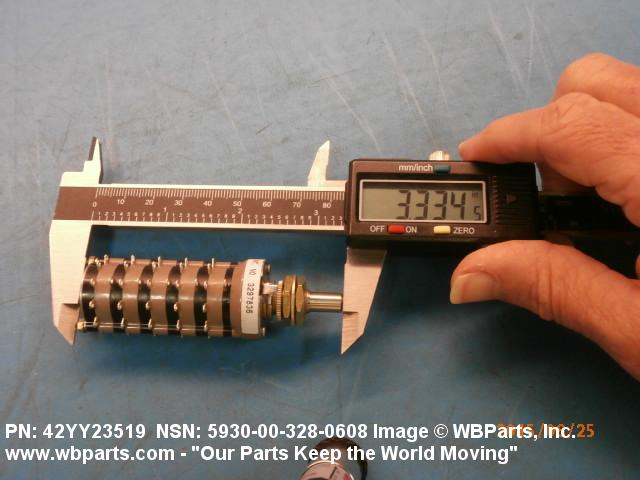

| OVERALL LENGTH | 3.349 INCHES MAXIMUM |

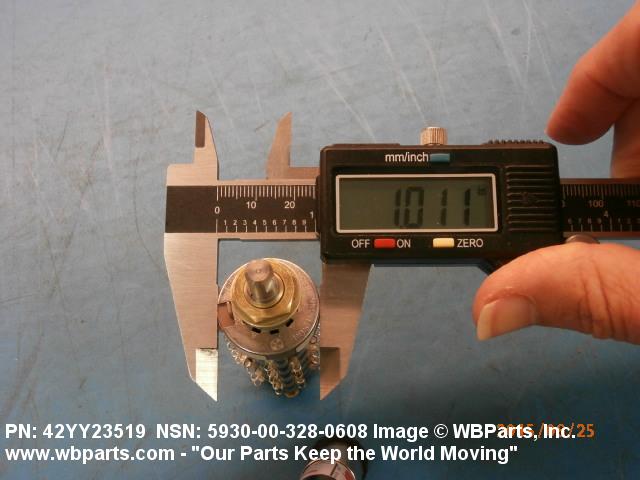

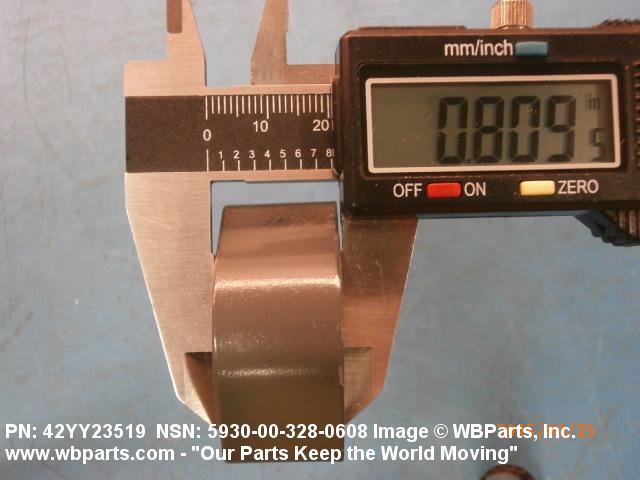

| OVERALL DIAMETER | 1.030 INCHES MAXIMUM |
| INDIVIDUAL SECTION QUANTITY | 5 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| ROTOR THROUGH CONNECTION QUANTITY | 1 EACH SECTION |
| POLE QUANTITY | 1 EACH SECTION FRONT |
| THROW QUANTITY | 10 EACH SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL 30.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 1.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL 500.0 MILLIAMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 10 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 36.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | ADJUSTABLE STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |
| FIRST FLAT LENGTH | 0.250 INCHES NOMINAL SINGLE ACTUATOR |

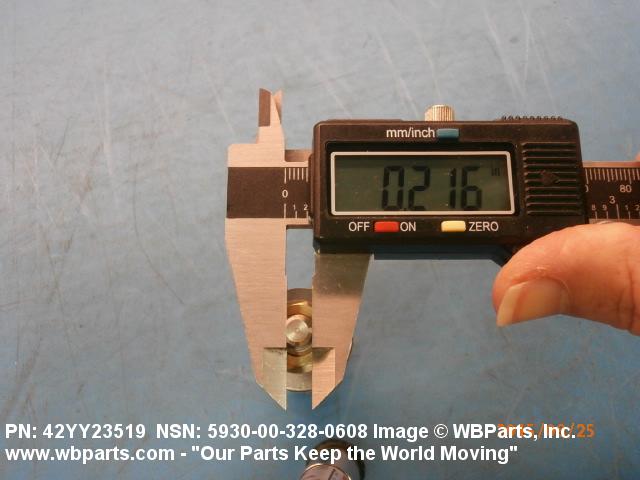

| FLAT HEIGHT | 0.218 INCHES NOMINAL SINGLE ACTUATOR |

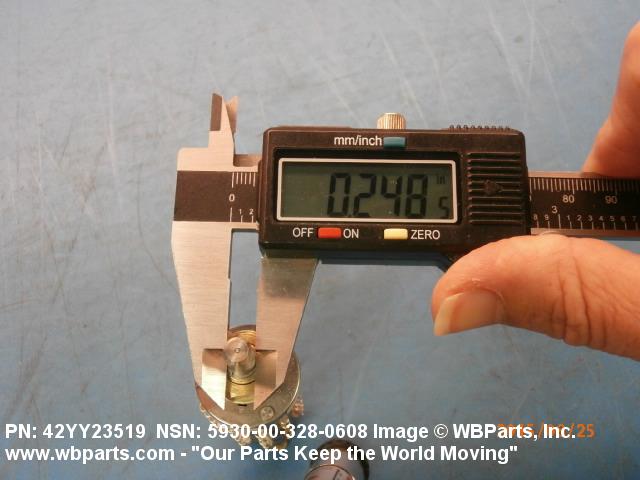

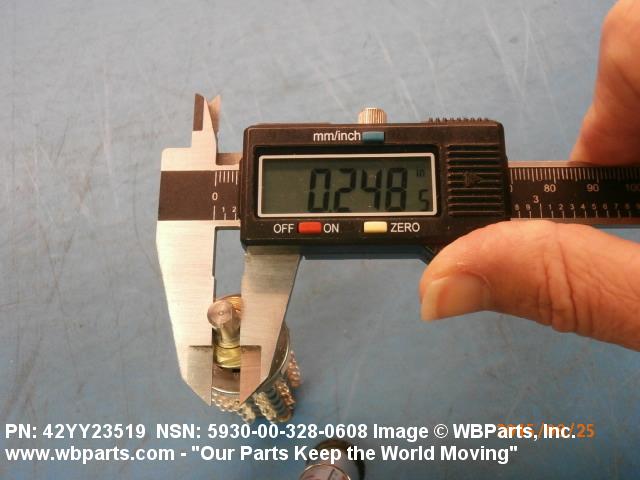

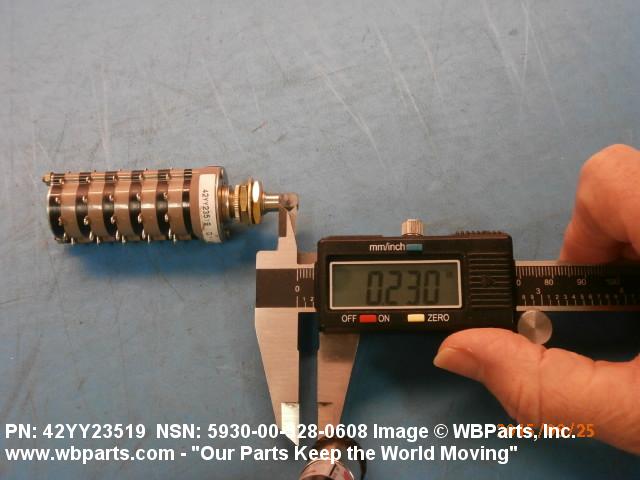

| SHAFT DIAMETER | 0.250 INCHES NOMINAL SINGLE ACTUATOR |

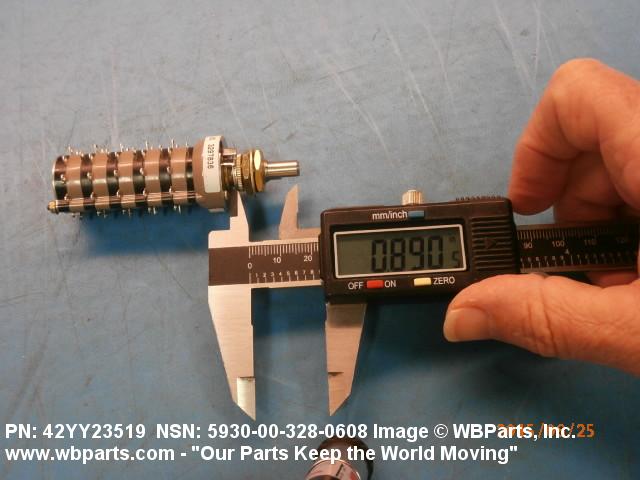

| SHAFT LENGTH | 0.874 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| NONTURN DEVICE TYPE | SLOTTED BUSHING AT 3:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.437 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| TEST DATA DOCUMENT | 96906-MIL-STD-202 STANDARD |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | EXPLOSION PROOF |
| III SHAFT FLAT/SLOT ANGULAR LOCATION | 180.0 DEGREES FROM CONTACT POSITION 1 SINGLE ACTUATOR |
| III OPERATING TEMP RANGE | -55.0 TO 85.0 DEG CELSIUS |
| III DETENT ROTATIONAL TORQUE RANGE | 12.000 TO 96.000 INCH-OUNCES SINGLE ACTUATOR |
Restrictions/Controls & Freight Information | NSN 5930-00-328-0608
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-328-0608
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
