NSN 5930-00-327-7340 SMC2097661, SMC209766-1, 1AC2
Product Details | PUSH-PULL SWITCH
5930-00-327-7340 A switch which is actuated in one direction by pushing and in the opposite direction by pulling. Excludes LIGHT-SWITCH ASSEMBLY.
Part Alternates: SMC2097661, SMC209766-1, 1AC2, 1AC22, 1AC27939, 1AC2-7939, 301051, 7522442, 8744900100, 87-44900-100, 5930-00-327-7340, 00-327-7340, 5930003277340, 003277340
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-327-7340 | 00407 ( SWITCH, PUSH-PULL ) |
Drawings & Photos | NSN 5930-00-327-7340
Demand History | NSN 5930-00-327-7340
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-327-7340 | 2018-04-116 | 12 | DIBBS |
| 5930-00-327-7340 | 2018-02-53 | 14 | DIBBS |
| 5930-00-327-7340 | 2017-09-257 | 12 | DIBBS |
| 5930-00-327-7340 | 2010-08-242 | 12 | DIBBS |
| 5930-00-327-7340 | 2010-04-120 | 9 | DIBBS |
| 5930-00-327-7340 | 2009-12-358 | 8 | DIBBS |
Cross Reference | NSN 5930-00-327-7340
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1AC2 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1AC2-7939 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1AC22 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 301051 | U3097 | PYSER SGI LIMITED |
| 7522442 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 87-44900-100 | 14170 | HUGHES MISSILE SYSTEMS CO SAN DIEGO |
| SMC209766-1 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| SMC209766-1 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-327-7340
Related Products | NSN 5930-00-327-7340
Technical Data | NSN 5930-00-327-7340
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 460.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 15.000 AMPERES RESISTIVE AC |

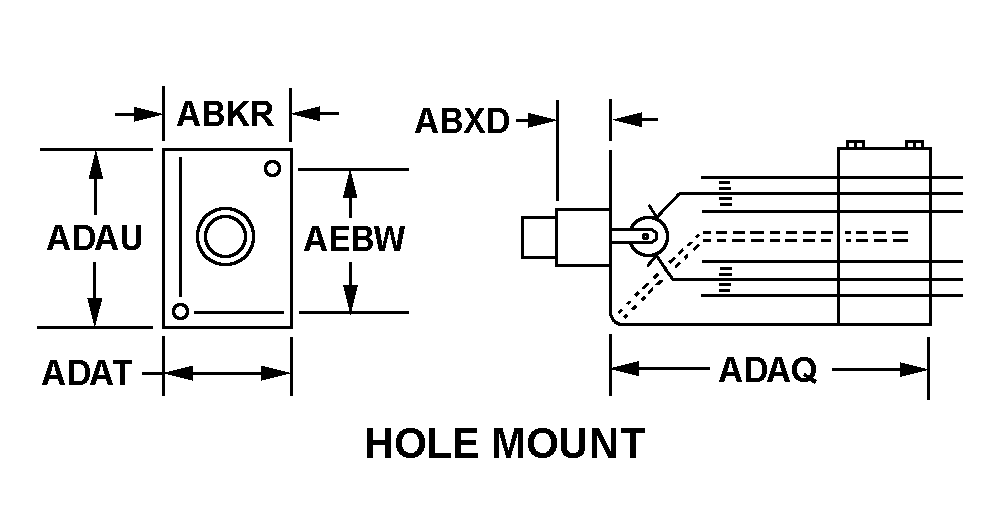

| BODY STYLE | 36K HOLE MOUNT |
