NSN 5930-00-296-9666 A2155, A7586489, 1314
Product Details | TOGGLE SWITCH
5930-00-296-9666 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: A2155, A7586489, 1314, 17020, 367343REVAPC13, 3673-43REVAPC13, 377365REVAPC13, 3773-65REVAPC13, 379353REVBLINE9, 3793-53REVBLINE9, 51012BM30, 51012CSP5, 51013CPC30, 5170, 5-170, 594, 7230874, 7501649048BM30, 7501-649048BM30, 7501649048SP5, 7501-649048SP5, 7501649049PC30, 7501-649049PC30, 80421, 80421181, 80421-181, 80421R, 8495100, 89919831, 8991983-1, 5930-00-296-9666, 00-296-9666, 5930002969666, 002969666
Electrical and Electronic Equipment Components | Switches
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1963 | 00-296-9666 | 00184 ( SWITCH, TOGGLE ) |
Demand History | NSN 5930-00-296-9666
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5170 | 2015-01-14 | 2 | United States |
17020 | 2014-01-24 | 1 | US |
5930-00-296-9666 | 2012-04-101 | 1 | US |
5170 | 2011-02-36 | 1 | |
80421181 | 2011-01-13 | 1 | US |
80421181 | 2011-01-13 | 1 | US |
1314 | 2010-01-05 | 10 | LK |
Cross Reference | NSN 5930-00-296-9666
Part Number | Cage Code | Manufacturer |
---|---|---|
1314 | 13059 | CLEVELAND RANGE LLC |
17020 | 1PQF4 | L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING |
17020 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
3673-43REVAPC13 | 96169 | ELECTRIC BOAT CORPORATION |
3773-65REVAPC13 | 96169 | ELECTRIC BOAT CORPORATION |
3793-53REVBLINE9 | 82126 | MARE ISLAND NAVAL SHIPYARD |
3793-53REVBLINE9 | 96169 | ELECTRIC BOAT CORPORATION |
5-170 | 57762 | STIMPSON COMPUTING SCALE CO INC SUB OF MOZLEY MFG CCO INC |
51012BM30 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
51012CSP5 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
51013CPC30 | 63743 | WARD LEONARD ELECTRIC COMPANY INC. |
594 | 56361 | REDCO INC |
7230874 | 01098 | SCHLAGE LOCK CO LCN DOORCLOSERS DIV |
7501-649048BM30 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
7501-649048SP5 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
7501-649049PC30 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
80421 | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
80421-181 | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
80421R | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
8495100 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
8991983-1 | 02769 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
8991983-1 | 49671 | LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS |
A2155 | 80969 | JAM HANDY ORGANIZATION INC |
A7586489 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5930-00-296-9666
Technical Data | NSN 5930-00-296-9666
Characteristic | Specifications |
---|---|
NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 20.000 AMPERES RESISTIVE AC |

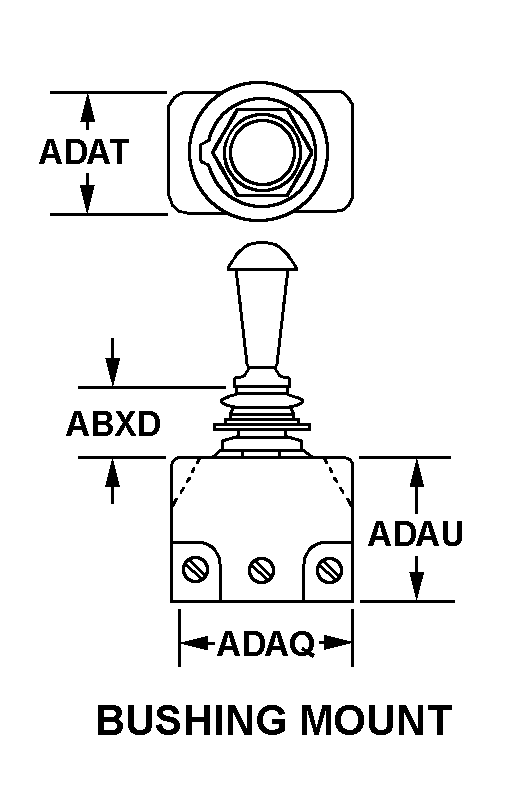

BODY STYLE | 9P BUSHING MOUNT |
BUSHING LENGTH | 0.344 INCHES NOMINAL |
BODY LENGTH | 2.250 INCHES NOMINAL |
BODY WIDTH | 1.125 INCHES NOMINAL |
BODY HEIGHT | 1.156 INCHES NOMINAL |
ACTUATOR STYLE | 26 ROUND |
ACTUATOR DIAMETER | 0.370 INCHES NOMINAL |
ACTUATOR HEIGHT | 0.531 INCHES NOMINAL |
ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
TERMINAL TYPE AND QUANTITY | 4 SCREW |
INCLOSURE TYPE | FULLY INCLOSED |
MOUNTING METHOD | THREADED BUSHING |
THREAD SERIES DESIGNATOR | UNS |
NOMINAL THREAD SIZE | 0.469 INCHES |
THREAD QUANTITY PER INCH | 32 |
III CASE MATERIAL | PLASTIC |
