NSN 5930-00-262-0889 M8805/55-001, M880555001, MILPRF8805
Product Details | PUSH SWITCH
5930-00-262-0889 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: M8805/55-001, M880555001, MILPRF8805, MIL-PRF-8805, MIL-PRF-8805/55 , MILPRF880555, MIL-S-8805/55, MILS880555, 1855, 8675427, 8870K2, 8911K525, 5930-00-262-0889, 00-262-0889, 5930002620889, 002620889
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 JUL 1973 | 00-262-0889 | 00406 ( SWITCH, PUSH ) |

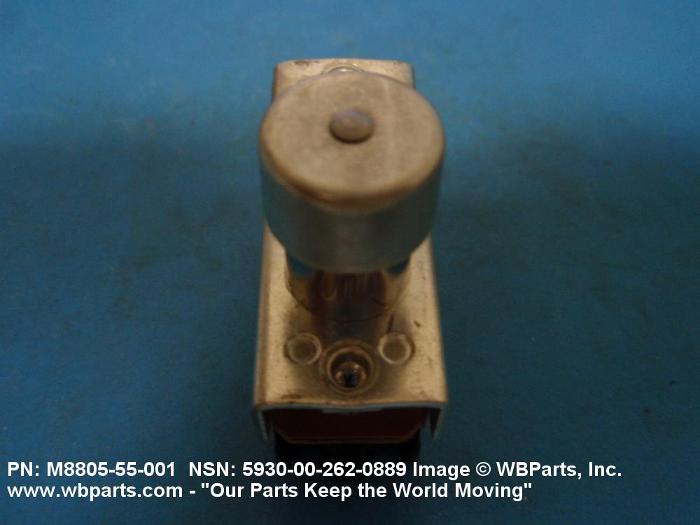

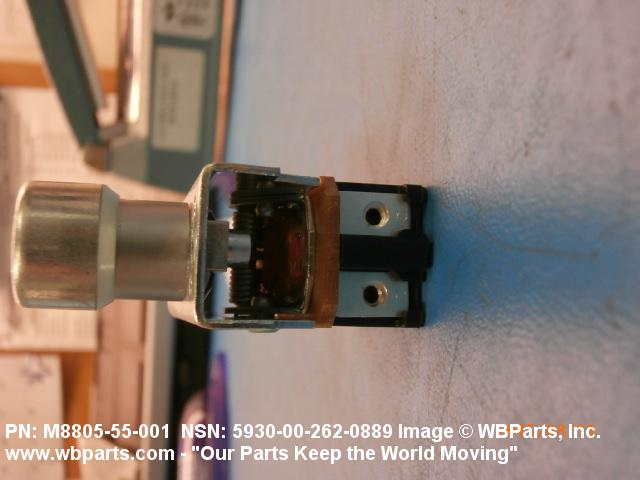

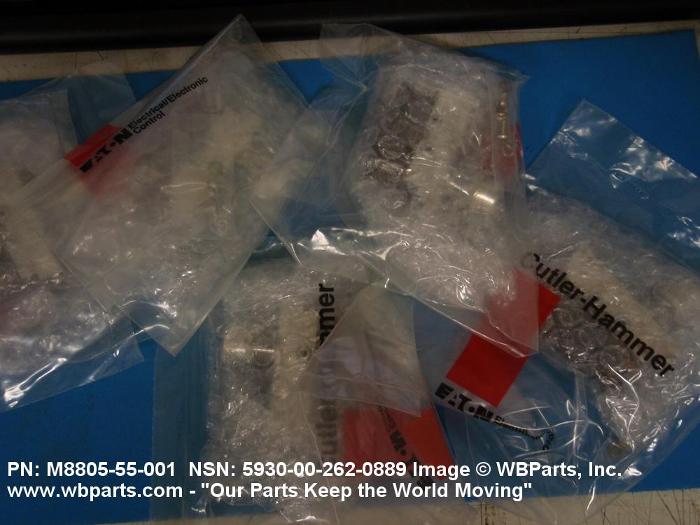

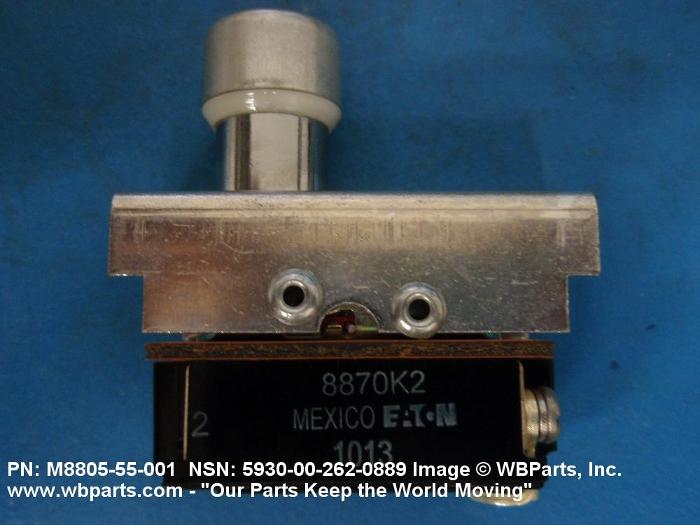

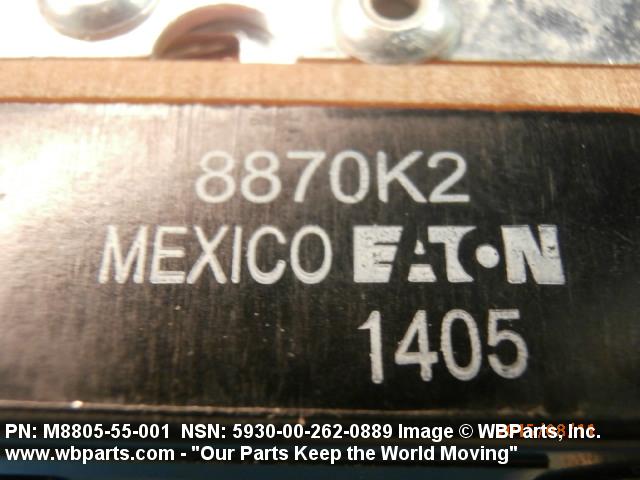

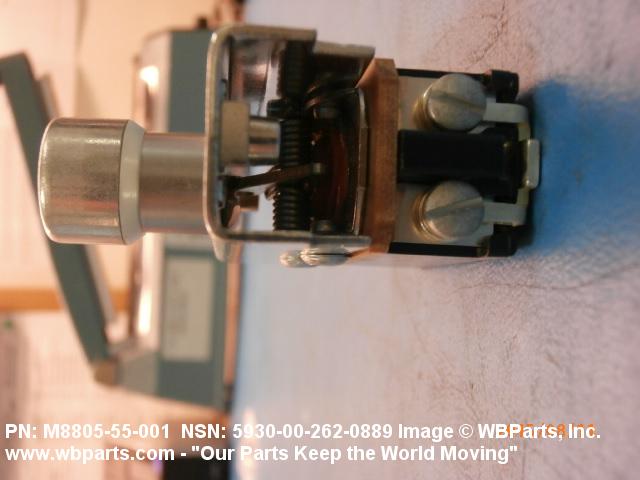

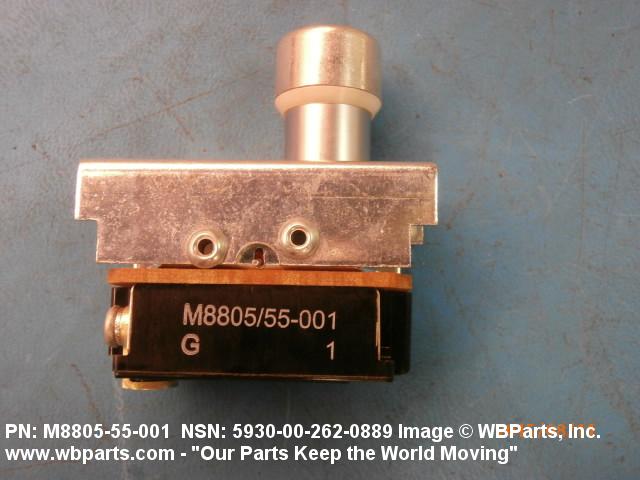

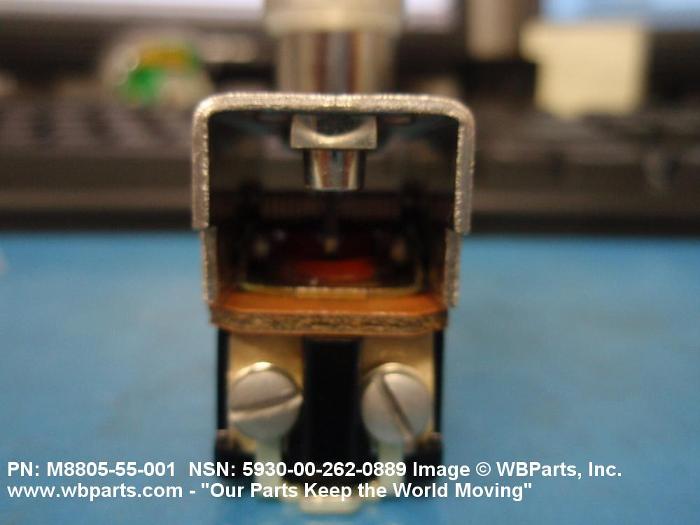

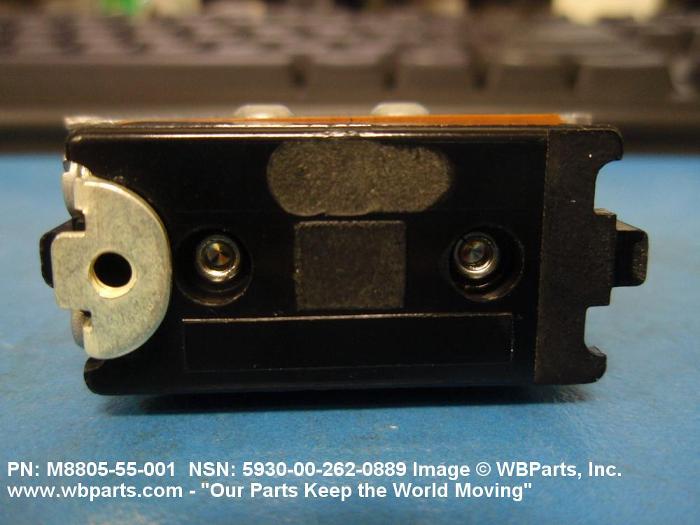

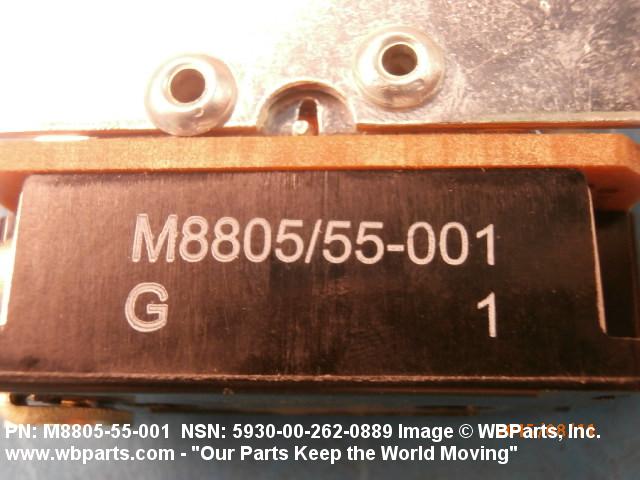

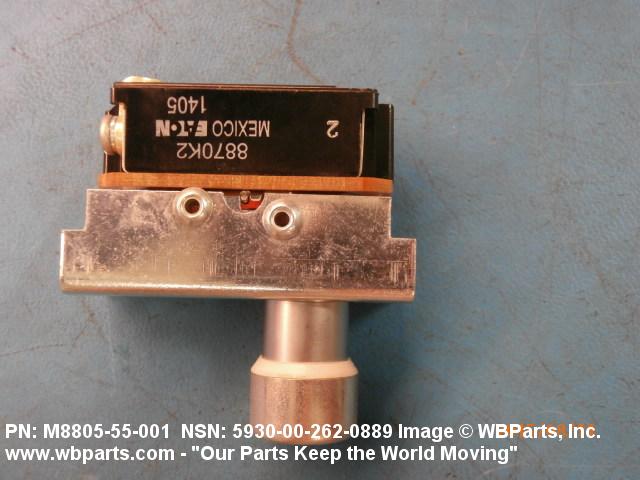

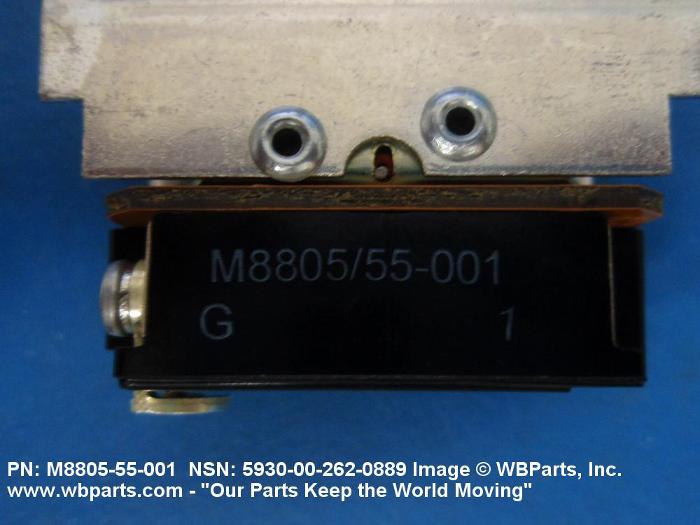

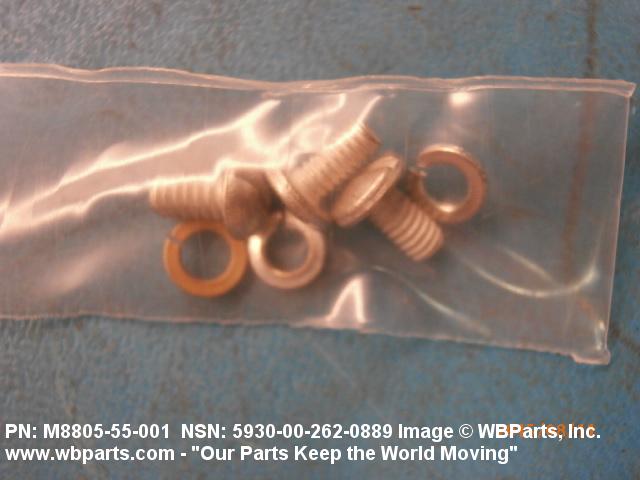

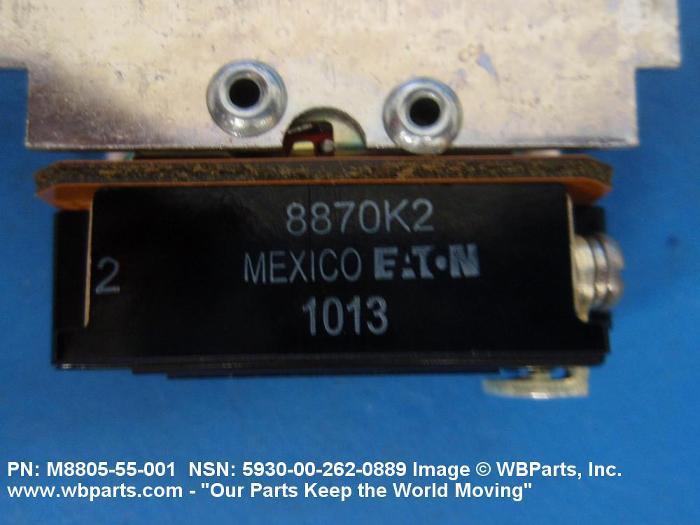

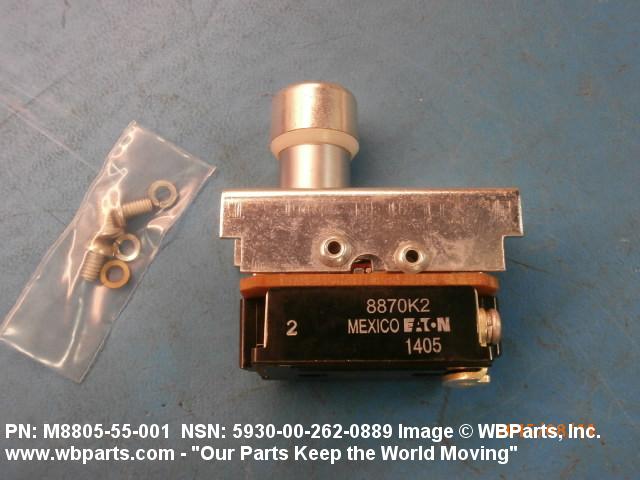

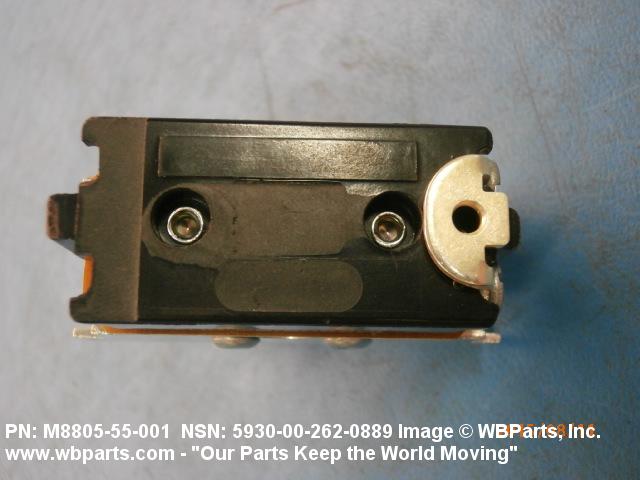

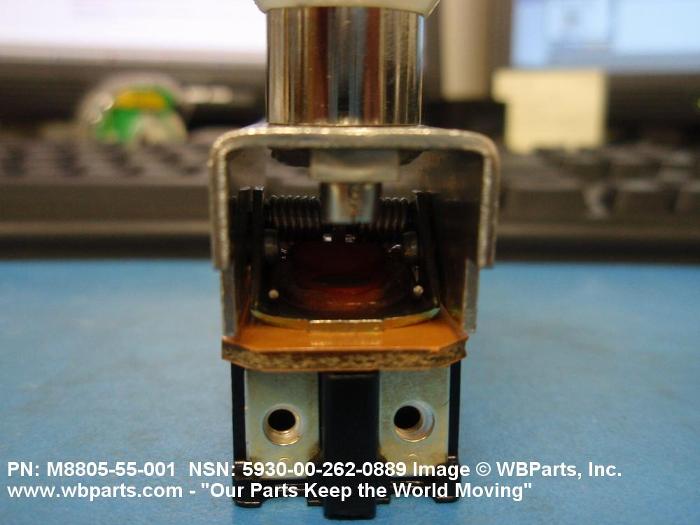

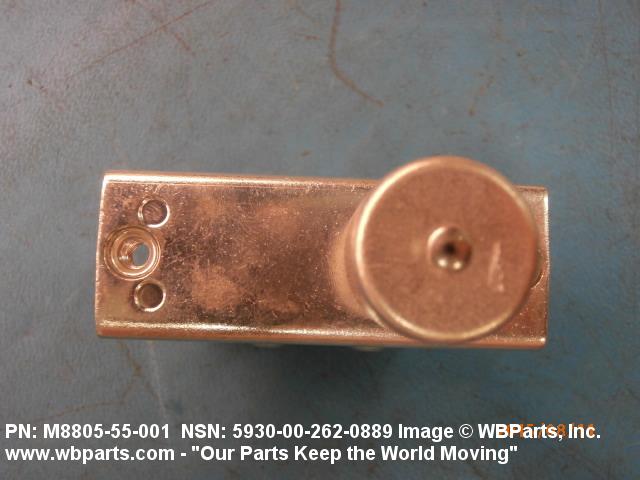

Drawings & Photos | NSN 5930-00-262-0889
Demand History | NSN 5930-00-262-0889
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-262-0889 | 2025-01-28 | 1 | US |
| 5930-00-262-0889 | 2024-12-337 | 1 | TW |
| 5930-00-262-0889 | 2024-11-334 | 1 | Taiwan |
| 5930-00-262-0889 | 2024-11-326 | 1 | FR |
| 5930-00-262-0889 | 2024-08-221 | 215 | DIBBS |
| 5930-00-262-0889 | 2024-07-213 | 2347 | DIBBS |
| 5930-00-262-0889 | 2024-07-198 | 2347 | DIBBS |
| 8870K2 | 2024-06-157 | 1 | Australia |
| M880555001 | 2024-04-94 | 1 | KR |
| 5930-00-262-0889 | 2024-03-73 | 1 | TW |
| 5930-00-262-0889 | 2024-01-04 | 500 | DIBBS |
| M880555001 | 2023-10-300 | 25 | United States |
| 5930-00-262-0889 | 2023-05-145 | 10 | Turkey |
| M880555001 | 2022-04-112 | 5 | DE |
| 5930-00-262-0889 | 2022-04-111 | 5 | DE |
| 5930-00-262-0889 | 2021-10-294 | 29 | Malaysia |
| 5930-00-262-0889 | 2021-10-293 | 29 | Malaysia |
| 5930-00-262-0889 | 2020-11-330 | 4 | US |
| M880555001 | 2019-11-329 | 2 | United States |
| 8870K2 | 2019-05-134 | 2 | United States |
| 5930-00-262-0889 | 2019-03-88 | 1 | DIBBS-RFPs |
| 5930-00-262-0889 | 2019-02-56 | 486 | DIBBS |
| 5930-00-262-0889 | 2019-02-45 | 486 | DIBBS |
| 1855 | 2018-12-360 | 115 | United States |
| 5930-00-262-0889 | 2018-12-356 | 1 | DIBBS-RFPs |
| M880555001 | 2018-12-354 | 3 | US |
| 5930-00-262-0889 | 2018-07-198 | 4 | United States |
| M880555001 | 2018-06-172 | 1 | Germany |
| 5930-00-262-0889 | 2018-05-126 | 1578 | DIBBS |
| 5930-00-262-0889 | 2018-02-41 | 2 | ES |
| 5930-00-262-0889 | 2018-01-18 | 2893 | DIBBS |
| 5930-00-262-0889 | 2018-01-04 | 6 | Malaysia |
| 5930-00-262-0889 | 2017-12-351 | 1 | Philippines |
| 5930-00-262-0889 | 2017-11-320 | 5 | Philippines |
| 5930-00-262-0889 | 2017-08-243 | 264 | DIBBS |
| 8870K2 | 2017-03-62 | 8 | us |
| 5930-00-262-0889 | 2016-10-278 | 659 | DIBBS |
| 5930-00-262-0889 | 2016-08-235 | 994 | DIBBS |
| 5930-00-262-0889 | 2016-07-205 | 1144 | DIBBS |
| 5930-00-262-0889 | 2016-07-193 | 1144 | DIBBS |
| 5930-00-262-0889 | 2016-05-140 | 578 | DIBBS |
| 5930-00-262-0889 | 2016-04-95 | 557 | DIBBS |
| M880555001 | 2015-07-205 | 8 | Germany |
| M880555001 | 2015-01-08 | 4 | UK |
| 5930-00-262-0889 | 2013-11-317 | 6 | US |
| M880555001 | 2013-04-109 | 2 | US |
| M880555001 | 2013-03-72 | 4 | United States |
| 5930-00-262-0889 | 2012-01-10 | 302 | DIBBS |
| 5930-00-262-0889 | 2012-01-06 | 710 | DIBBS |
| 5930-00-262-0889 | 2012-01-06 | 815 | DIBBS |
| 5930-00-262-0889 | 2011-11-327 | 815 | DIBBS |
| 5930-00-262-0889 | 2011-11-320 | 710 | DIBBS |
| 5930-00-262-0889 | 2011-11-307 | 595 | DIBBS |
| 5930-00-262-0889 | 2011-08-238 | 520 | DIBBS |
| 5930-00-262-0889 | 2011-08-221 | 1000 | DIBBS |
| 5930-00-262-0889 | 2011-07-211 | 415 | DIBBS |
| 5930-00-262-0889 | 2011-07-194 | 315 | DIBBS |
| 5930-00-262-0889 | 2011-05-133 | 371 | DIBBS |
| M880555001 | 2011-03-74 | 5 | United States |
| 5930-00-262-0889 | 2011-02-53 | 643 | DIBBS |
| 5930-00-262-0889 | 2010-10-286 | 346 | DIBBS |
| 5930-00-262-0889 | 2010-07-211 | 307 | DIBBS |
| 5930-00-262-0889 | 2010-07-197 | 712 | US |
| 5930-00-262-0889 | 2010-07-189 | 712 | DIBBS |
| 5930-00-262-0889 | 2010-04-106 | 1 | US |
| 5930-00-262-0889 | 2009-08-215 | 414 | DIBBS |
| 5930-00-262-0889 | 2009-06-168 | 209 | DIBBS |
| M880555001 | 2009-03-62 | 2 | US |
| M880555001 | 2008-06-165 | 2 | US |
| 5930-00-262-0889 | 2007-01-26 | 796 | DIBBS |
| 5930-00-262-0889 | 2006-04-110 | 584 | DIBBS |
Cross Reference | NSN 5930-00-262-0889
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1855 | 73752 | GENERAL AUTOMOTIVE SPECIALTY CO INC |
| 8675427 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 8870K2 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| 8911K525 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| M8805/55-001 | 1B6X2 | JARRDD INC DBA U S MATERIAL SUPPLY |
| M8805/55-001 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| M8805/55-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-8805/55 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-S-8805/55 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-262-0889
Related Products | NSN 5930-00-262-0889
Technical Data | NSN 5930-00-262-0889
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 750.000 MILLIAMPERES INDUCTIVE DC |

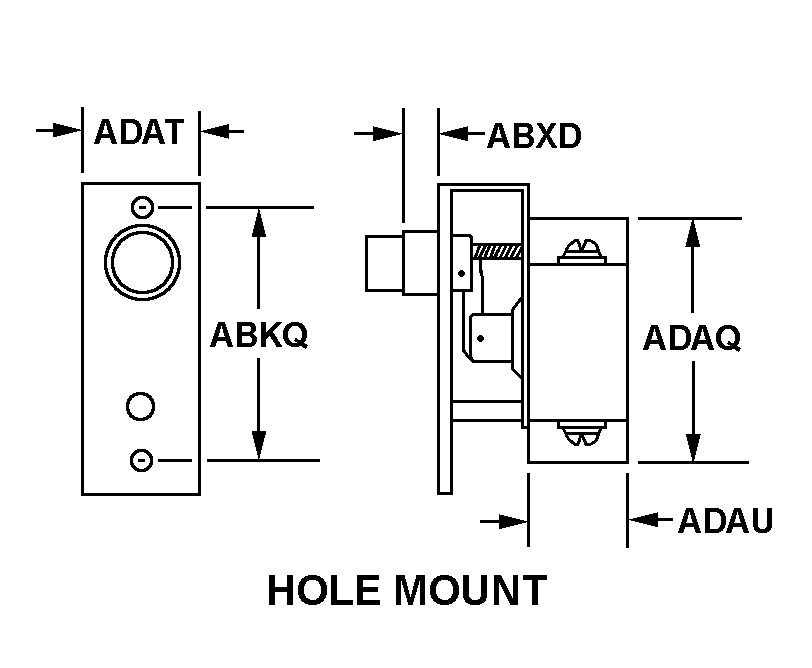

| BODY STYLE | 10K HOLE MOUNT |

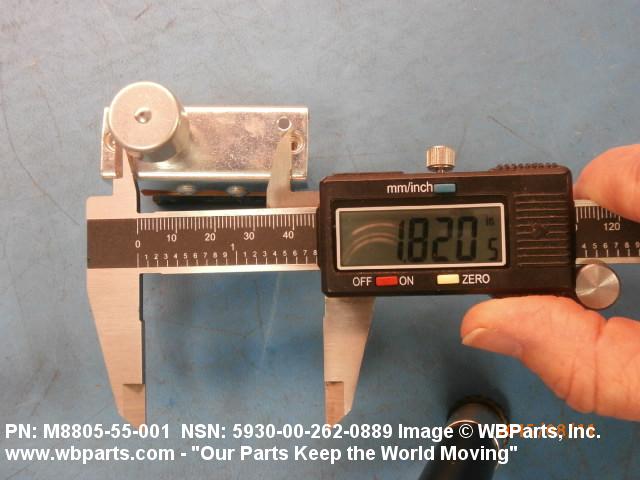

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.796 INCHES MINIMUM AND 1.828 INCHES MAXIMUM |
| BUSHING LENGTH | 1.660 INCHES NOMINAL |
| BODY LENGTH | 1.988 INCHES MAXIMUM |
| BODY WIDTH | 0.858 INCHES MAXIMUM |
| BODY HEIGHT | 1.360 INCHES MAXIMUM |
| ACTUATOR STYLE | 7 ROUND |
| ACTUATOR DIAMETER | 0.672 INCHES MINIMUM AND 0.704 INCHES MAXIMUM |
| ACTUATOR HEIGHT | 0.910 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | BRACKET |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A AND 2B |
| THREAD QUANTITY PER INCH | 32 |
| TEST DATA DOCUMENT | 81349-MIL-S-8805 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-8805 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M8805/55-001 |
Restrictions/Controls & Freight Information | NSN 5930-00-262-0889
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5930-00-262-0889
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
