NSN 5930-00-188-8732 00-188-8732, 001888732
Product Details | TOGGLE SWITCH
5930-00-188-8732 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: 5930-00-188-8732, 00-188-8732, 5930001888732, 001888732
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 00-188-8732 | 00184 ( SWITCH, TOGGLE ) |
Drawings & Photos | NSN 5930-00-188-8732
Cross Reference | NSN 5930-00-188-8732
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-610121 | 92110 | SERVO CORPORATION OF AMERICA |
| 10104-304-000 | 14668 | CALCOMP INC |
| 10104C | 71400 | COOPER BUSSMANN INC |
| 1331 | 72653 | GC/WALDOM INC |
| 2130EH | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
| 21350-BJC | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
| 21350CF | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
| 21350EH | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
| 260-0784-00 | 80009 | TEKTRONIX, INC. DBA TEKTRONIX |
| 26954-000 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 26954-000 | 14100 | STROMBERG-CARLSON CORP A PLESSEY TELECOMMUNICATIONS CO |
| 34-088 | 72653 | GC/WALDOM INC |
| 511 | 91967 | ABBATRON, LLC DIV ABBATRON LLC |
| 6142058 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 6142058 | 0B6S1 | INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54 |
| 6142058 | 30874 | INTERNATIONAL BUSINESS MACHINES CORP |
| 6221 | 71002 | BIRNBACH CO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-188-8732
Technical Data | NSN 5930-00-188-8732
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC AND 125.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 3.000 AMPERES RESISTIVE DC AND 3.000 AMPERES RESISTIVE AC |

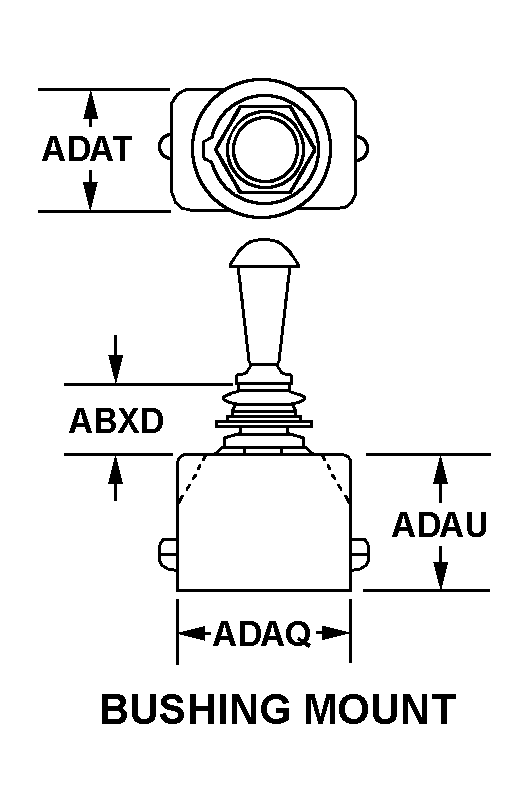

| BODY STYLE | 8P BUSHING MOUNT |
| BUSHING LENGTH | 0.469 INCHES NOMINAL |
| BODY WIDTH | 0.656 INCHES NOMINAL |
| BODY HEIGHT | 0.547 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |
| ACTUATOR HEIGHT | 0.656 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD QUANTITY PER INCH | 32 |
Restrictions/Controls & Freight Information | NSN 5930-00-188-8732
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
