NSN 5930-00-167-3795 GS836EE1, 1150001, 1-1500-01
Product Details | TOGGLE SWITCH
5930-00-167-3795 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: GS836EE1, 1150001, 1-1500-01, 151164, 151-164, 1593015105H, 2509900063, 250-99-00063, 2665321150, 266-5321-150, 28396, 33108421, 3310842-1, 578712-008, 6110050001, 6110050-001, 7101SYZQE, 933381, 5930-00-167-3795, 00-167-3795, 5930001673795, 001673795, 578712008
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 AUG 1972 | 00-167-3795 | 00184 ( SWITCH, TOGGLE ) |

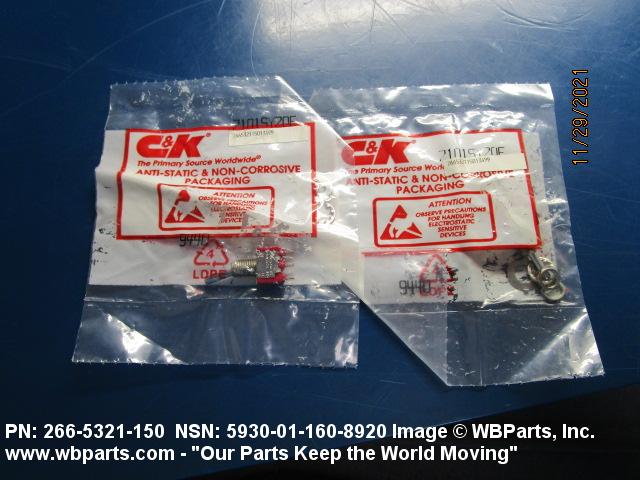

Drawings & Photos | NSN 5930-00-167-3795
Demand History | NSN 5930-00-167-3795
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2665321150 | 2021-06-165 | 2 | Slovakia |
| 7101SYZQE | 2016-04-99 | 29 | us |
Cross Reference | NSN 5930-00-167-3795
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-1500-01 | 25583 | L-3 COMMUNICATIONS AVIONICS SYSTEMS, INC |
| 151-164 | K0F76 | FARNELL PLC |
| 250-99-00063 | 06141 | L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION |
| 266-5321-150 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 28396 | 06141 | L-3 COMMUNICATIONS CORPORATION DBA L-3 COMMUNICATIONS AVIATION |
| 3310842-1 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 3310842-1 | 77068 | ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO |
| 578712-008 | 02294 | MARATHONNORCO AEROSPACE, INC. DBA CHRISTIE ELECTRIC |
| 6110050-001 | 05157 | COHU, INC. DBA COHU ELECTRONIC'S DIVISION |
| 7101SYZQE | 09353 | C AND K COMPONENTS INC |
| 933381 | K0162 | THALES UK LIMITED |
| 933381 | K2490 | THALES DEFENCE LTD |
| GS836EE1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-167-3795
Technical Data | NSN 5930-00-167-3795
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 5.000 AMPERES RESISTIVE DC AND 2.000 AMPERES RESISTIVE AC |
| BODY STYLE | 7P BUSHING MOUNT |
| BUSHING LENGTH | 0.354 INCHES NOMINAL |
| BODY LENGTH | 0.531 INCHES MAXIMUM |
| BODY WIDTH | 0.283 INCHES MAXIMUM |
| BODY HEIGHT | 0.354 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 0.515 INCHES NOMINAL |
| OVERALL LENGTH | 0.531 INCHES MAXIMUM |
| OVERALL WIDTH | 0.283 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.279 INCHES NOMINAL |
| ACTUATOR STYLE | 27 ROUND |

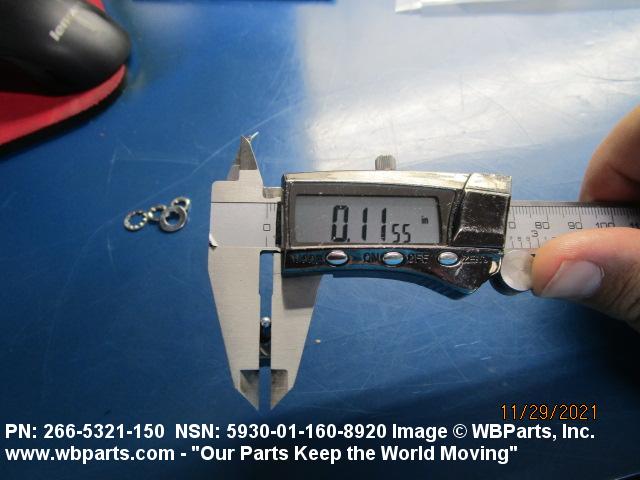

| ACTUATOR DIAMETER | 0.115 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.410 INCHES NOMINAL |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| THREAD SERIES DESIGNATOR | UNS |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| III CASE MATERIAL | PLASTIC |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES AND CONTACTS SILVER |
Restrictions/Controls & Freight Information | NSN 5930-00-167-3795
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XN | National Security Agency ATTN: L111 Fort George G. Meade, MD 20755-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-167-3795
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
