NSN 5930-00-134-0923 GS835EM1, 61913303, 6-1913-303
Product Details | ROTARY SWITCH
5930-00-134-0923 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: GS835EM1, 61913303, 6-1913-303, 619133C3, 6-1913-3-C3, 5930-00-134-0923, 00-134-0923, 5930001340923, 001340923
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 DEC 1968 | 00-134-0923 | 02134 ( SWITCH, ROTARY ) |

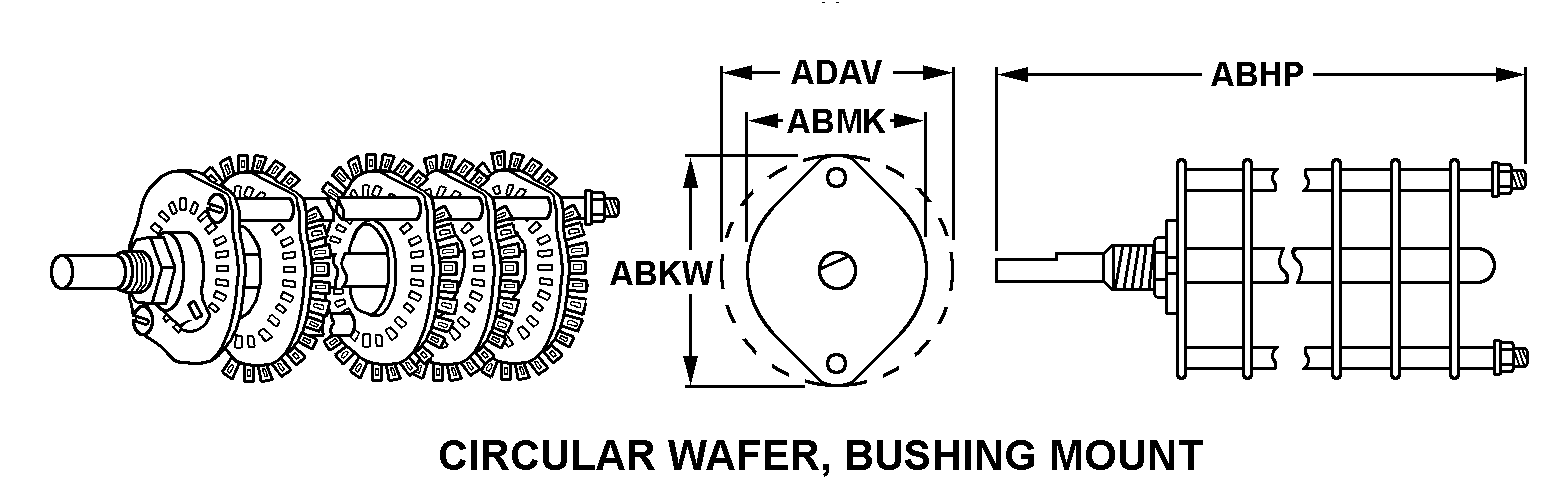

Drawings & Photos | NSN 5930-00-134-0923
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-134-0923
Related Products | NSN 5930-00-134-0923
Technical Data | NSN 5930-00-134-0923
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4A CIRCULAR WAFER, BUSHING MOUNT |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL DIAMETER | 2.000 INCHES MAXIMUM |
| INDIVIDUAL SECTION QUANTITY | 3 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP NONSYMMETRICAL |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES EACH SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD AC AT SEA LEVEL 3.0 AMPERES RESISTIVE LOAD AND 2.0 AMPERES INDUCTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 3 SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | FIXED STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |
| FIRST FLAT LENGTH | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| FLAT HEIGHT | 0.210 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL SINGLE ACTUATOR |
| SHAFT LENGTH | 0.575 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| NONTURN DEVICE TYPE | TAB AT 12:00 O'CLOCK |
| NONTURN DEVICE RADIUS | 0.372 INCHES NOMINAL AT 12:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNS SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.469 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 32 SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.375 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| III SHAFT FLAT/SLOT ANGULAR LOCATION | 180.0 DEGREES FROM NONTURN DEVICE SINGLE ACTUATOR |
| III DETENT ROTATIONAL TORQUE RANGE | 1.000 TO 3.000 INCH-POUNDS SINGLE ACTUATOR |
