NSN 5930-00-126-7192 200163, 3242J, 00-126-7192
Product Details | ROTARY SWITCH
5930-00-126-7192 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 200163, 3242J, 5930-00-126-7192, 00-126-7192, 5930001267192, 001267192
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 NOV 1968 | 00-126-7192 | 02134 ( SWITCH, ROTARY ) |
Drawings & Photos | NSN 5930-00-126-7192
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-126-7192
Related Products | NSN 5930-00-126-7192
Technical Data | NSN 5930-00-126-7192
| Characteristic | Specifications |
|---|---|

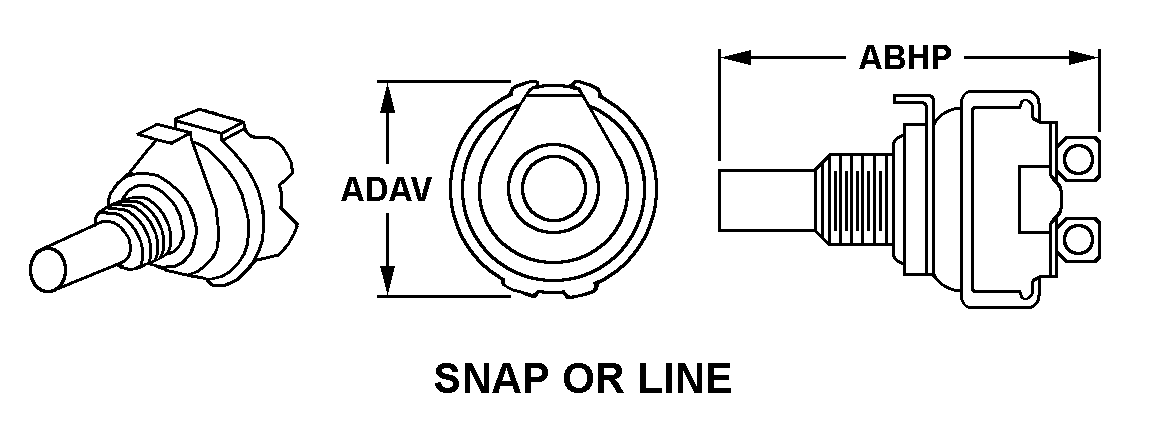

| STYLE DESIGNATOR | 12 SNAP OR LINE |
| OVERALL LENGTH | 1.562 INCHES NOMINAL |
| OVERALL DIAMETER | 1.250 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP SYMMETRICAL |
| POLE QUANTITY | 4 SINGLE SECTION REAR |
| THROW QUANTITY | 2 SINGLE SECTION REAR |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES SINGLE SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 300.0 HIGHEST AC VOLTAGE RATING AT SEA LEVEL 6.0 LOWEST AC VOLTAGE RATING AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 200.0 MILLIAMPERES RESISTIVE LOAD HIGHEST AC VOLTAGE RATING AT SEA LEVEL 5.0 AMPERES RESISTIVE LOAD LOWEST AC VOLTAGE RATING AT SEA LEVEL 125.0 MILLIAMPERES RESISTIVE LOAD HIGHEST DC VOLTAGE RATING AT SEA LEVEL 3.0 AMPERES RESISTIVE LOAD LOWEST DC VOLTAGE RATING AT SEA LEVEL |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 2 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 20.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | ADJUSTABLE STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |
| FIRST FLAT LENGTH | 0.312 INCHES NOMINAL SINGLE ACTUATOR |
| FLAT HEIGHT | 0.214 INCHES MINIMUM AND 0.218 INCHES MAXIMUM SINGLE ACTUATOR |
| SHAFT DIAMETER | 0.248 INCHES MINIMUM AND 0.250 INCHES MAXIMUM SINGLE ACTUATOR |
| SHAFT LENGTH | 0.375 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |
| NONTURN DEVICE TYPE | TAB AT 3:00 O'CLOCK |
| NONTURN DEVICE RADIUS | 0.531 INCHES NOMINAL AT 3:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.375 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| FEATURES PROVIDED | METALLIC INCLOSURE |
| III SHAFT FLAT/SLOT ANGULAR LOCATION | 45.0 DEGREES FROM NONTURN DEVICE SINGLE ACTUATOR |
| III DETENT ROTATIONAL TORQUE RANGE | 15.0 TO 30.0 INCH-OUNCES SINGLE ACTUATOR |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS AND ROTOR BLADE SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5930-00-126-7192
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
