NSN 5930-00-112-5128 AN30236, AN3023-6, S6745
Product Details | TOGGLE SWITCH
5930-00-112-5128 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: AN30236, AN3023-6, S6745, 8708K4, 5930-00-112-5128, 00-112-5128, 5930001125128, 001125128
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-112-5128 | 00184 ( SWITCH, TOGGLE ) |

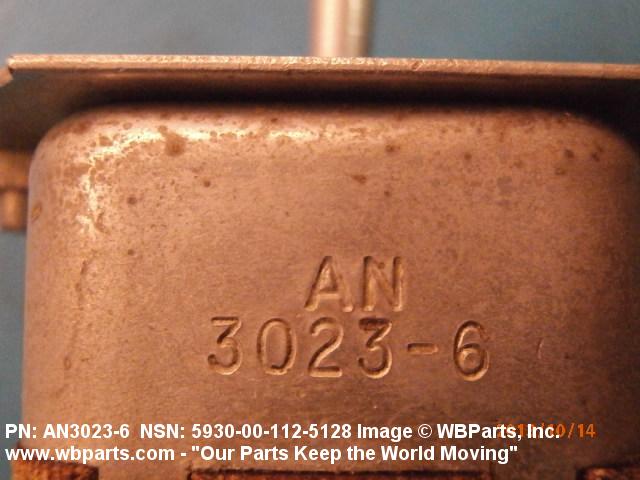

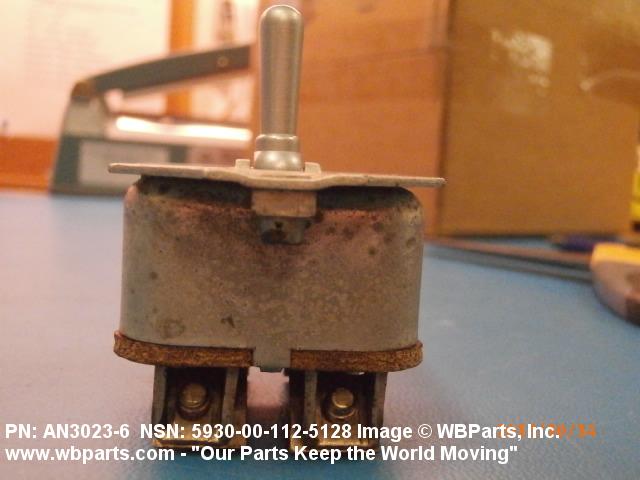

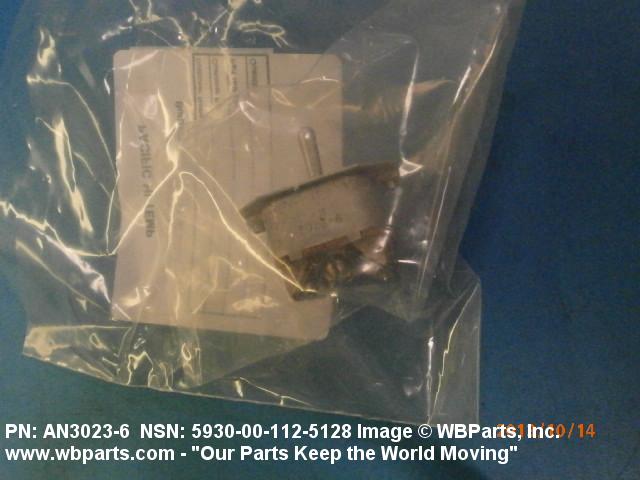

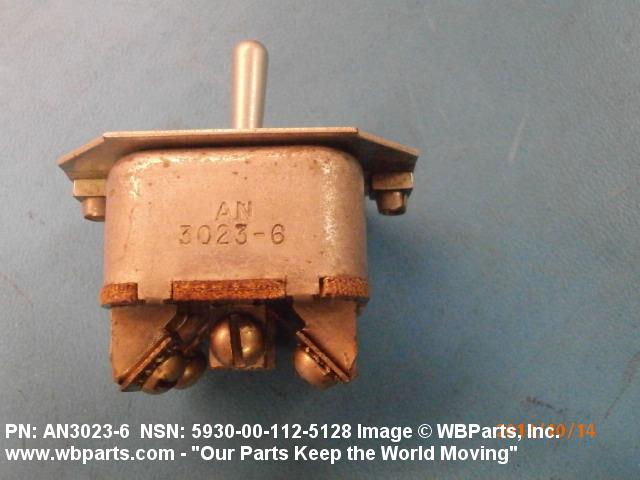

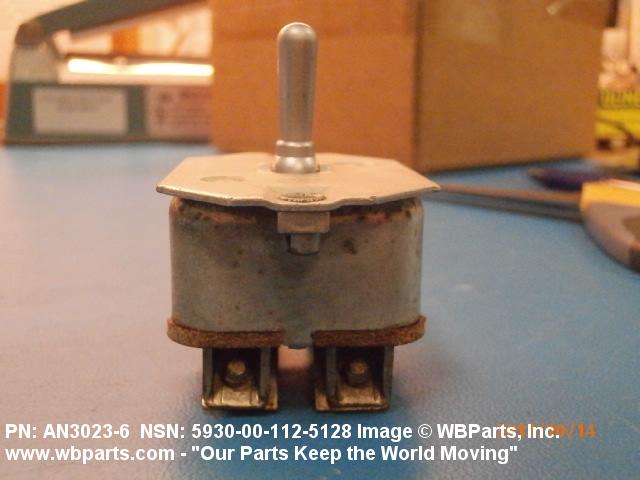

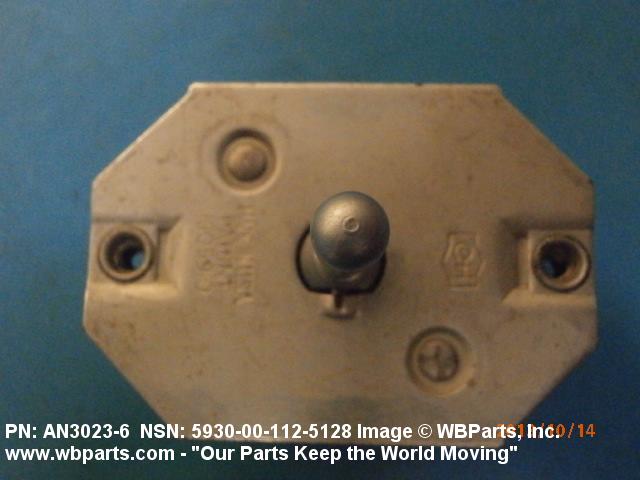

Drawings & Photos | NSN 5930-00-112-5128
Demand History | NSN 5930-00-112-5128
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-112-5128 | 2013-09-271 | 1 | United States |
Cross Reference | NSN 5930-00-112-5128
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-112-5128
Technical Data | NSN 5930-00-112-5128
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, ONE POSITION MOMENTARY, TWO POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 30.000 AMPERES RESISTIVE DC AND 20.000 AMPERES RESISTIVE AC |
| BODY STYLE | 10P HOLE MOUNT |

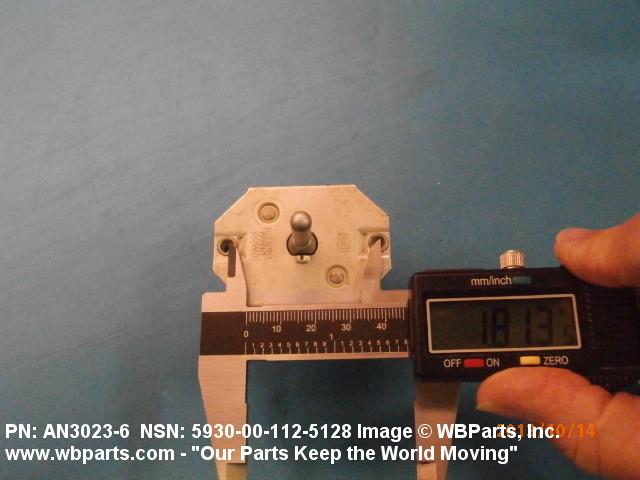

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.812 INCHES NOMINAL |

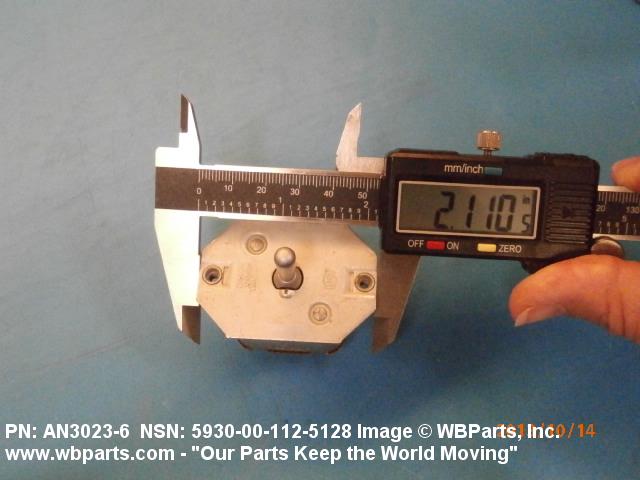

| BODY LENGTH | 2.125 INCHES NOMINAL |

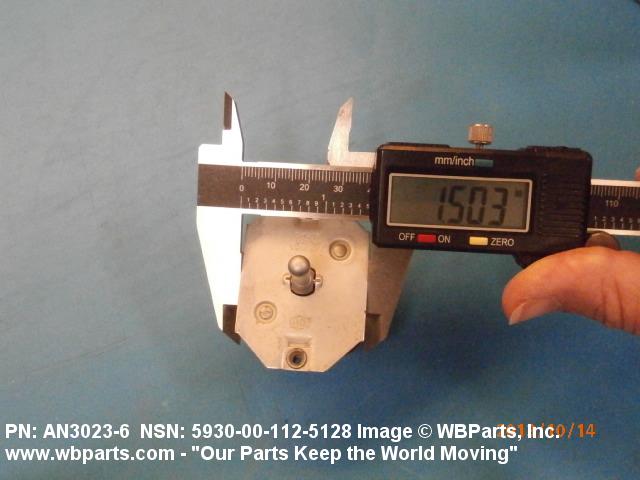

| BODY WIDTH | 1.515 INCHES NOMINAL |

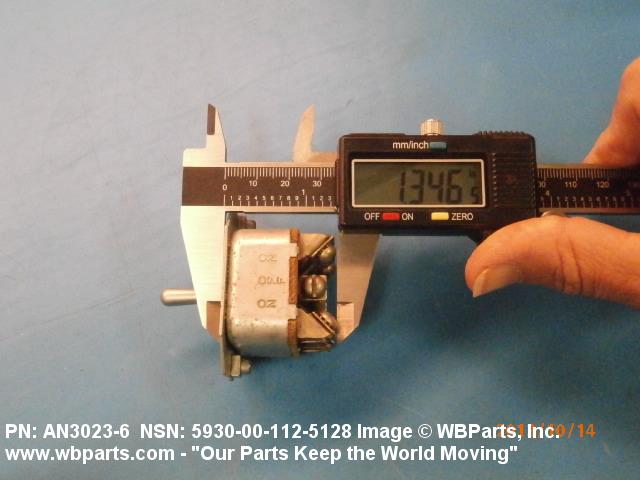

| BODY HEIGHT | 1.343 INCHES NOMINAL |
| ACTUATOR STYLE | 25 ROUND |

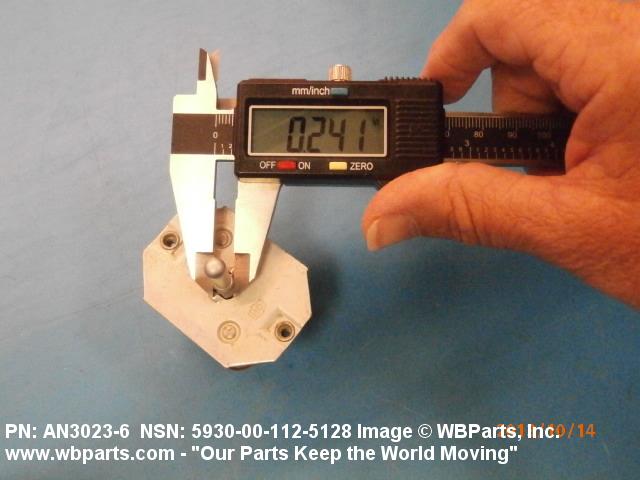

| ACTUATOR DIAMETER | 0.240 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.875 INCHES NOMINAL |

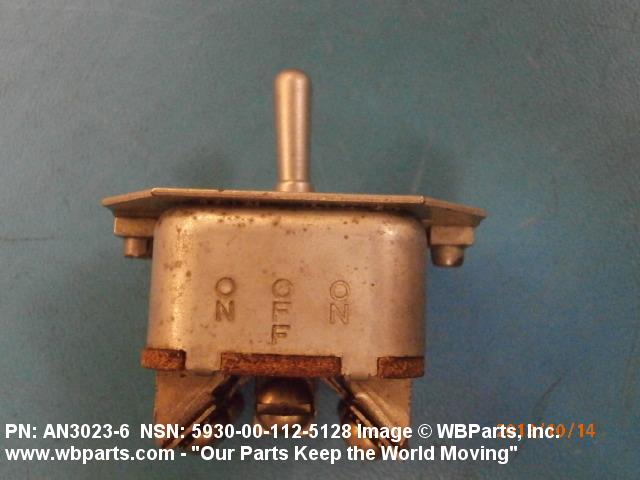

| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY AND CENTER POSITION MAINTAINED |

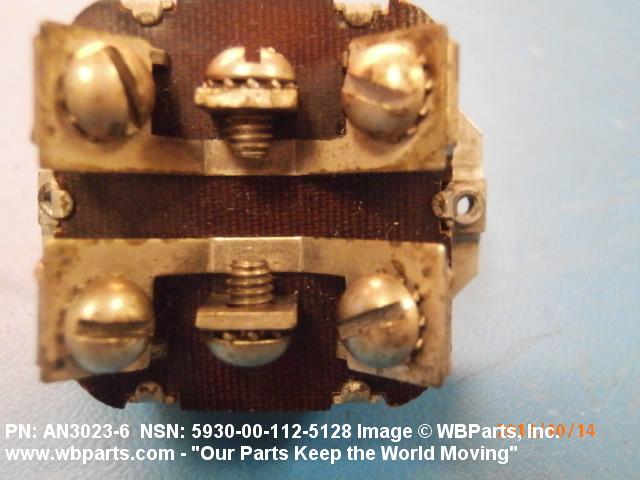

| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| FEATURES PROVIDED | ACTUATOR SEAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN3023-6 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | S6745 |
Restrictions/Controls & Freight Information | NSN 5930-00-112-5128
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
