NSN 5930-00-111-8619 HC2273, D54017A, D901/1996097

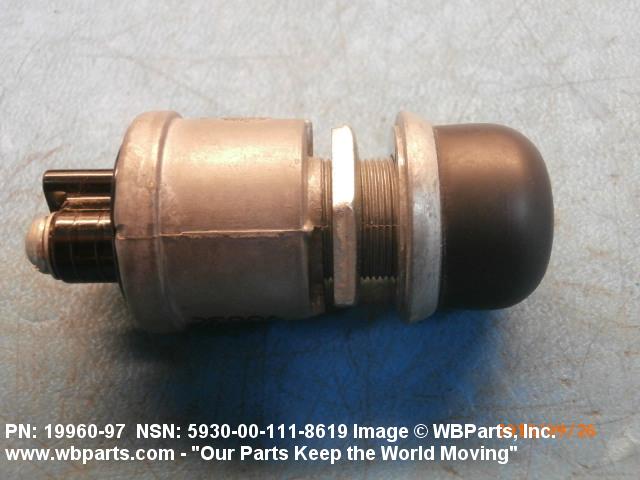

Product Details | PUSH SWITCH

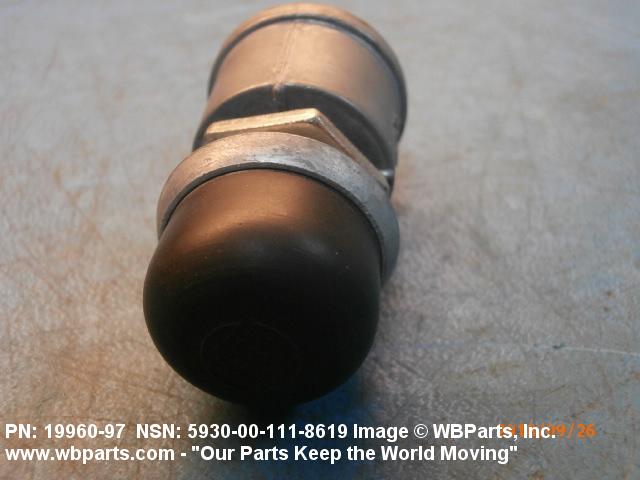

5930-00-111-8619 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Part Alternates: HC2273, D54017A, D901/1996097, D9011996097, D9071996097, D907-1996097, 90030, 65C354851, 65C35485-1, 7242000033, 7-242-000033, 74362868, 76255, 76260, 76-260, 7872000066, 7-872-000066, 79Z1297, 8055, 00519255, 02409621, 0240962-1, 046433, 084098, 12200023, 122-00023, 122-90007 ITEM 22, 12290007ITEM22, 13225E9067, 1996042, 1996097, 19960-97, 21360, 21-360, 2375417, 237-5417, 24360, 24-360, 360L, 42012, 520076, 52-0076, 54017A, 5930-00-111-8619, 00-111-8619, 5930001118619, 001118619, 851090305
Electrical and Electronic Equipment Components | Switches
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 21 AUG 1968 | 00-111-8619 | 00406 ( SWITCH, PUSH ) |
Demand History | NSN 5930-00-111-8619
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5930-00-111-8619 | 2019-07-188 | 8 | AE |
21360 | 2019-02-41 | 6 | US |
21360 | 2019-02-38 | 6 | US |
8055 | 2018-11-317 | 12 | US |
5930-00-111-8619 | 2018-07-206 | 1 | Canada |
5930-00-111-8619 | 2017-06-160 | 8 | AE |
5930-00-111-8619 | 2017-06-153 | 8 | TR |
5930-00-111-8619 | 2017-01-10 | 12 | MANUAL |
90030 | 2017-01-10 | 12 | US |
5930-00-111-8619 | 2016-12-336 | 10 | United States |
5930-00-111-8619 | 2016-10-305 | 1 | United States |
5930-00-111-8619 | 2016-10-305 | 1 | United Arab Emirates |
5930-00-111-8619 | 2016-01-20 | 20 | United States |
5930-00-111-8619 | 2015-04-103 | 5 | United States |
90030 | 2013-11-309 | 24 | US |
1996097 | 2012-08-237 | 1 | United States |
5930-00-111-8619 | 2012-03-76 | 1 | US |
5930-00-111-8619 | 2012-02-40 | 774 | DIBBS |
1996097 | 2011-11-307 | 100 | CA |
5930-00-111-8619 | 2011-09-256 | 532 | DIBBS |
5930-00-111-8619 | 2010-04-93 | 526 | DIBBS |
5930-00-111-8619 | 2009-12-364 | 483 | DIBBS |
5930-00-111-8619 | 2009-06-177 | 72 | DIBBS |
5930-00-111-8619 | 2009-05-133 | 154 | DIBBS |
5930-00-111-8619 | 2009-03-63 | 236 | DIBBS |
5930-00-111-8619 | 2009-03-61 | 23 | DIBBS |
5930-00-111-8619 | 2009-01-06 | 172 | DIBBS |
5930-00-111-8619 | 2008-12-345 | 38 | DIBBS |
5930-00-111-8619 | 2008-12-345 | 183 | DIBBS |
5930-00-111-8619 | 2008-11-318 | 38 | DIBBS |
5930-00-111-8619 | 2008-08-242 | 80 | DIBBS |
5930-00-111-8619 | 2008-05-128 | 201 | DIBBS |
5930-00-111-8619 | 2008-02-58 | 488 | DIBBS |
Cross Reference | NSN 5930-00-111-8619
Part Number | Cage Code | Manufacturer |
---|---|---|
00519255 | 32537 | JOY TECHNOLOGIES INC. DBA MINING JOY MACHINERY |
0240962-1 | 0AHU0 | KALMAR AC INC |
046433 | 40608 | MILLER ELECTRIC MFG CO |
084098 | 40608 | MILLER ELECTRIC MFG CO |
122-00023 | 59556 | KOVATCH CORP. |
122-90007 ITEM 22 | 59556 | KOVATCH CORP. |
13225E9067 | 97403 | CECOM LR CENTER |
19960-97 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
1996042 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
1996042 | 24617 | GENERAL MOTORS CORP |
1996097 | 1LW55 | REMY, INC. |
1996097 | 24617 | GENERAL MOTORS CORP |
1996097 | 72582 | MTU AMERICA INC. |
21-360 | 77326 | POLLAK JOSEPH CORP |
237-5417 | 65459 | LANDOLL CORPORATION |
24-360 | 77326 | POLLAK JOSEPH CORP |
360L | 77326 | POLLAK JOSEPH CORP |
42012 | 44382 | GENERAL ELECTRIC MOBILE COMMUNICATION DIV OF GENERAL |
52-0076 | 04664 | PIERCE MANUFACTURING, INC. |
54017A | 23926 | KOMATSU AMERICA INTL CO |
54017A | 45RP7 | DRESSTA NORTH AMERICA LTD |
65C35485-1 | 0ZLV2 | GSE SPARES, INC. |
65C35485-1 | 98296 | STANDARD MFG CO INC |
7-242-000033 | 12361 | GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP |
7-872-000066 | 0MKW7 | MINNPAR, LLC DBA MINNPAR |
7-872-000066 | 12361 | GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP |
74362868 | 92392 | ALLIS-CHALMERS CORP |
76-260 | 35301 | DRESSER INDUSTRIES INC LEROI DIV |
76255 | 35301 | DRESSER INDUSTRIES INC LEROI DIV |
79Z1297 | 27315 | MORRIS MATERIAL HANDLING, INC. |
8055 | 77254 | PHILADELPHIA VALVE CO |
851090305 | 09605 | BOMAG USA SUB OF UNITED DOMINION INDUSTRIES |

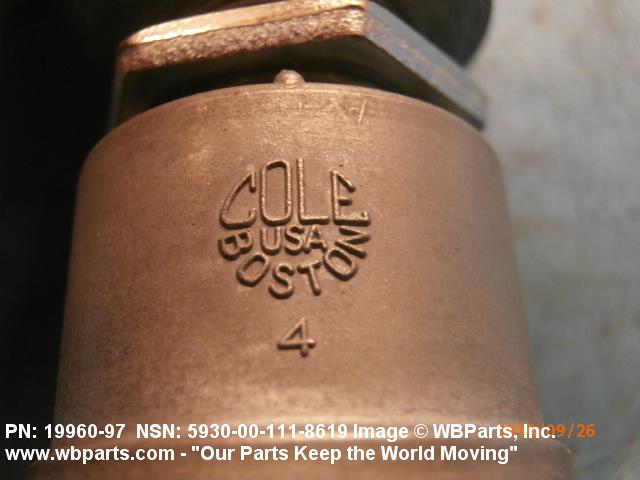

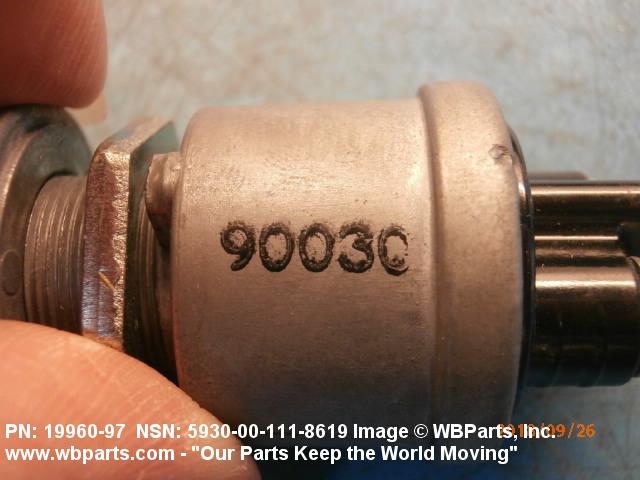

90030 | 13445 | COLE HERSEE COMPANY |
90030 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
90030 | ZAM10 | BALE DEFENCE INDUSTRIES PTY LTD |
D54017A | 23926 | KOMATSU AMERICA INTL CO |
D901/1996097 | 1LW55 | REMY, INC. |
D907-1996097 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
HC2273 | 2Y614 | LINK-BELT CONSTRUCTION EQUIPMENT COMPANY, L.P., LLLP |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5930-00-111-8619
Technical Data | NSN 5930-00-111-8619
Characteristic | Specifications |
---|---|
NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
MAXIMUM VOLTAGE RATING IN VOLTS | 24.0 DC |
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 15.000 AMPERES RESISTIVE DC |

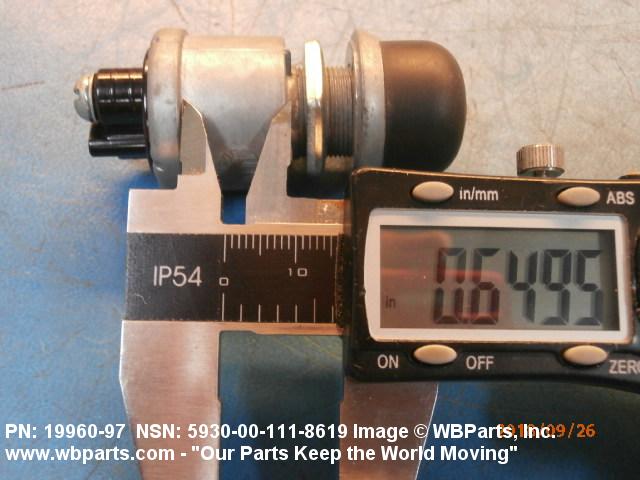

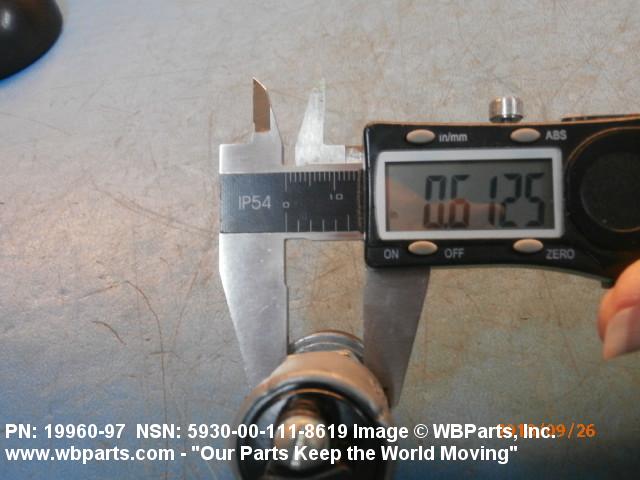

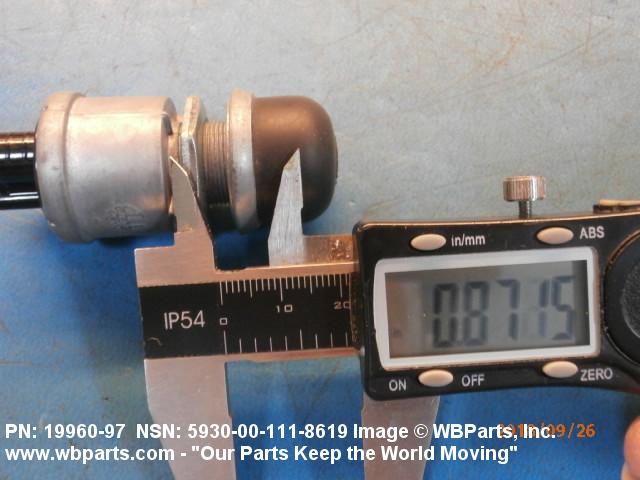

BODY STYLE | 5K BUSHING MOUNTED |

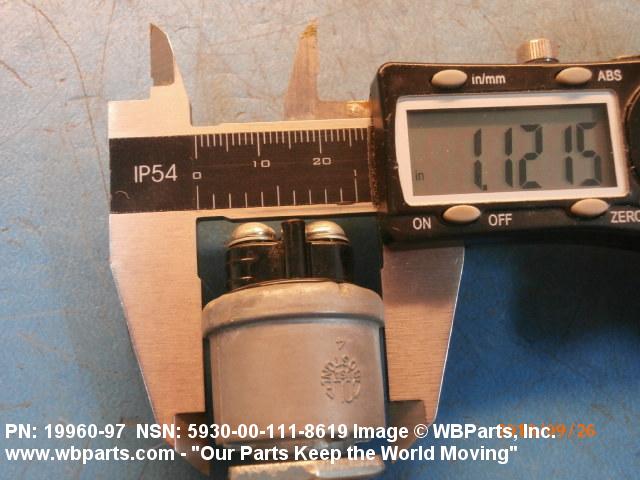

BODY DIAMETER | 1.270 INCHES NOMINAL |

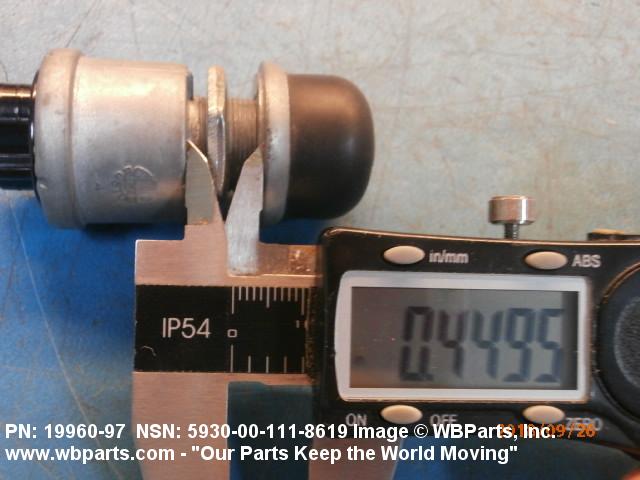

BUSHING LENGTH | 0.850 INCHES NOMINAL |
BODY LENGTH | 0.620 INCHES NOMINAL |

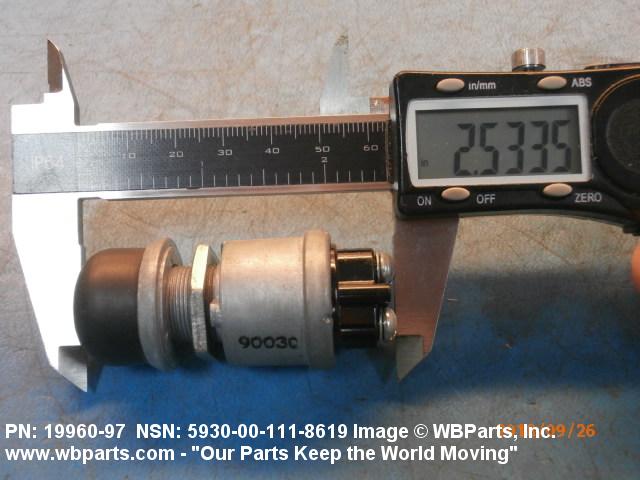

OVERALL LENGTH | 2.700 INCHES NOMINAL |
OVERALL WIDTH | 1.270 INCHES NOMINAL |
OVERALL HEIGHT | 1.270 INCHES NOMINAL |

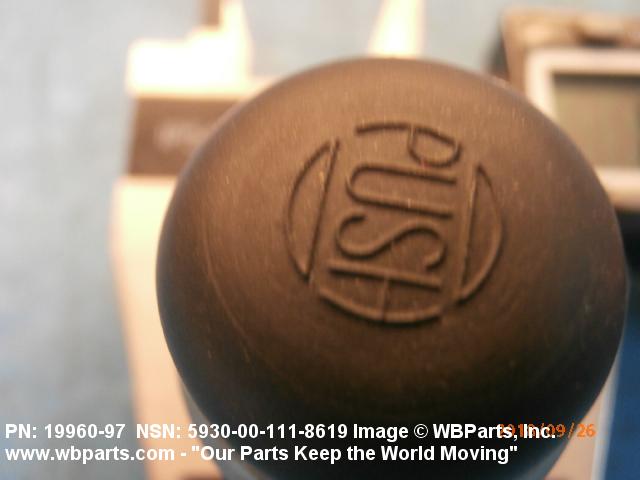

ACTUATOR DIAMETER | 0.550 INCHES NOMINAL |
ACTUATOR HEIGHT | 0.470 INCHES NOMINAL |

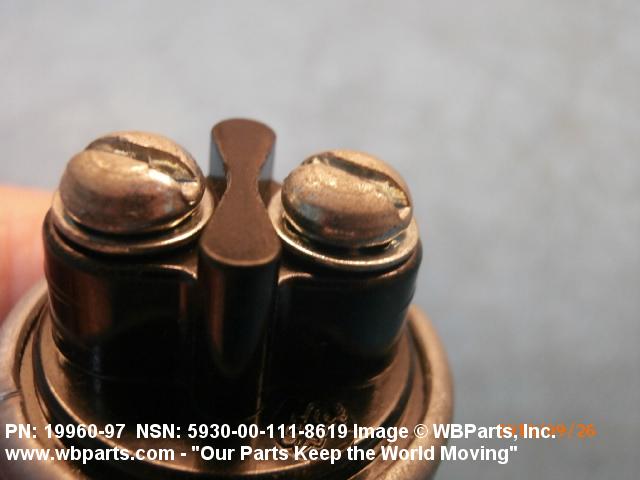

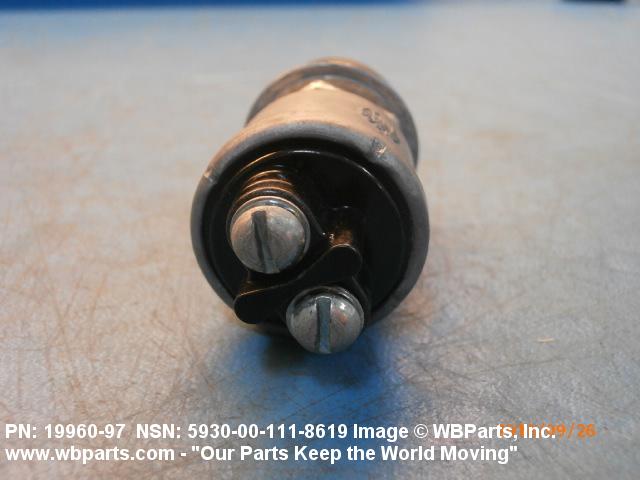

TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
INCLOSURE TYPE | FULLY INCLOSED |
MOUNTING METHOD | THREADED BUSHING |
THREAD SERIES DESIGNATOR | UN |
NOMINAL THREAD SIZE | 0.625 INCHES |
THREAD CLASS | 2A |
THREAD QUANTITY PER INCH | 32 |
FEATURES PROVIDED | ACTUATOR SEAL |
SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
CRITICALITY CODE JUSTIFICATION | FEAT |
III CASE MATERIAL | PLASTIC |
III END ITEM IDENTIFICATION | AIRCRAFT PHANTOM F-4,HERCULES C-130,F-111,EAGLE F-15,THUNDERBOLT II A-10,AWACS E-3A,F-16,HELICOPTER SUPER JOLLY H-53,VEHICLE AIRCRAFT REFULER R-9,P-22 FIRETRUCK,TRACTOR AIRCRAFT TOWING A/S32U-30,AIRCRAFT SUPPORT EQUIPMENT F-5,OV-10A,C-5,T-37,T-38,F-106,B- 52; 4210-01-486-1035 TFFT (TACTICAL FIRE FIGHTING TRUCK); 2420-66-148-7692, HMEE (HIGH MOBILITY ENGINEER EXCAVATOR) |
III PRECIOUS MATERIAL | SILVER |
III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES AND CONTACTOR SILVER |
Restrictions/Controls & Freight Information | NSN 5930-00-111-8619
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | S | Item contains silver |
Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
Less than car load rating | ||
Less than truck load rating | P | 77.5 |
Water commodity Code | 72D | unknown |
Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-111-8619
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 6 | Critical Repair Part to a Non-Combat Essential End Item. Those parts or components whose failure in a noncombat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Echelon Identification Code | B | Consumable Repair Parts |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
