NSN 5930-00-051-4448 CS115, WS896, W-S-896

Product Details | TOGGLE SWITCH

5930-00-051-4448 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: CS115, WS896, W-S-896, WS896/1-04A, W-S-896/2, WS896/2-03A, WS896104A, WS8962, WS896203A, 1101, 1CL1DNA10A125V5A250V, 315ACLASS1DESIGNA, 3-15ACLASS1DESIGNA, 4155621, 415562-1, 4801, 5029219-109-101, 5501, 68M6140 , 7173822, 71738-22, 79Z2288D1, 9801, 5930-00-051-4448, 00-051-4448, 5930000514448, 5029219109101, 000514448

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1961	00-051-4448	00184 ( SWITCH, TOGGLE )

Drawings & Photos | NSN 5930-00-051-4448

Part Number	Request Date	QTY	Origin
5930-00-051-4448	2021-01-27	1	United States
5930-00-051-4448	2014-05-126	1	United States
5930-00-051-4448	2014-01-07	2593	DIBBS
WS896203A	2012-09-257	10	US
5930-00-051-4448	2012-06-158	1240	DIBBS
5930-00-051-4448	2012-05-131	6	US
5930-00-051-4448	2012-05-125	789	DIBBS
WS896203A	2010-06-176	10	US
5930-00-051-4448	2007-05-135	5650	DIBBS
5930-00-051-4448	2007-02-43	3698	DIBBS
5930-00-051-4448	2007-01-30	2041	DIBBS

Cross Reference | NSN 5930-00-051-4448

Part Number	Cage Code	Manufacturer
1101	04009	COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV
1101	06620	U.S.EQUIPMENT CO. INC.
1101	71183	BRYANT ELECTRIC
1101	74545	HUBBELL INC WIRING DEVICE DIV
1CL1DNA10A125V5A250V	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
3-15ACLASS1DESIGNA	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
415562-1	80020	NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2
4801	71183	BRYANT ELECTRIC
5029219-109-101	99696	LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN SYSTEMS & GLOBAL
5501	75582	LEVITON MANUFACTURING CO., INC. DBA LEVITON
68M6140	89691	GRAYBAR ELECTRIC COMPANY, INC
71738-22	56530	PHOENIX POWER SYSTEMS INC
79Z2288D1	27315	MORRIS MATERIAL HANDLING, INC.
79Z2288D1	6W062	ABB INDUSTRIAL SYSTEMS INC
9801	74545	HUBBELL INC WIRING DEVICE DIV
CS115	74545	HUBBELL INC WIRING DEVICE DIV
W-S-896	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
W-S-896/2	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
WS896/1-04A	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
WS896/2-03A	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-051-4448

Compare

Related Products | NSN 5930-00-051-4448

5930-00-051-6383, 5930-00-051-7547, 5930-00-051-7553, 5930-00-051-7919, 5930-00-051-8022

Technical Data | NSN 5930-00-051-4448

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, SINGLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	277.0 AC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	15.000 AMPERES RESISTIVE AC
BODY STYLE	17P HOLE MOUNT
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	3.281 INCHES NOMINAL
BODY LENGTH	2.691 INCHES MAXIMUM
BODY WIDTH	1.718 INCHES MAXIMUM
BODY HEIGHT	1.375 INCHES MAXIMUM

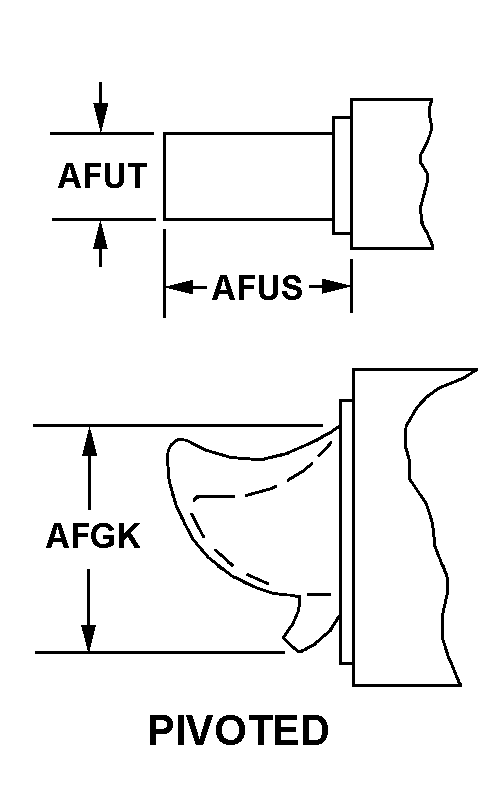

ACTUATOR STYLE	57 PIVOTED
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED
ACTUATOR COLOR	BROWN SINGLE ACTUATOR
TERMINAL TYPE AND QUANTITY	2 SCREW
INCLOSURE TYPE	FULLY INCLOSED
MOUNTING METHOD	THREADED HOLE
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	32
TEST DATA DOCUMENT	81348-W-S-896 SPECIFICATION
SPECIFICATION/STANDARD DATA	81348-W-S-896/2 GOVERNMENT SPECIFICATION
III OVERALL WIDTH	1.718 INCHES MAXIMUM
III END ITEM IDENTIFICATION	MISSILE MINUTEMAN LEM-30
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	W-S-896/2
MANUFACTURERS CODE	81348
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	WS896/2-03A
