NSN 5930-00-008-2691 11A1243, 31011237, 3101-1237

5930-00-008-2691 A switch designed to be actuated by the sliding of a button, bar, or knob.

Part Alternates: 11A1243, 31011237, 3101-1237, 5930-00-008-2691, 00-008-2691, 5930000082691, 000082691

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	16 JUL 1972	00-008-2691	00400 ( SWITCH, SLIDE )

Part Number	Cage Code	Manufacturer
11A1243	82389	SWITCHCRAFT INC.
3101-1237	1MY97	AGILENT TECHNOLOGIES, INC. DIV AGILENT TECHNOLOGIES
3101-1237	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5930-00-008-2691

Compare

5930-00-008-2694, 5930-00-008-2772, 5930-00-008-3636, 5930-00-008-3644, 5930-00-008-3645

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	1.500 AMPERES RESISTIVE AC

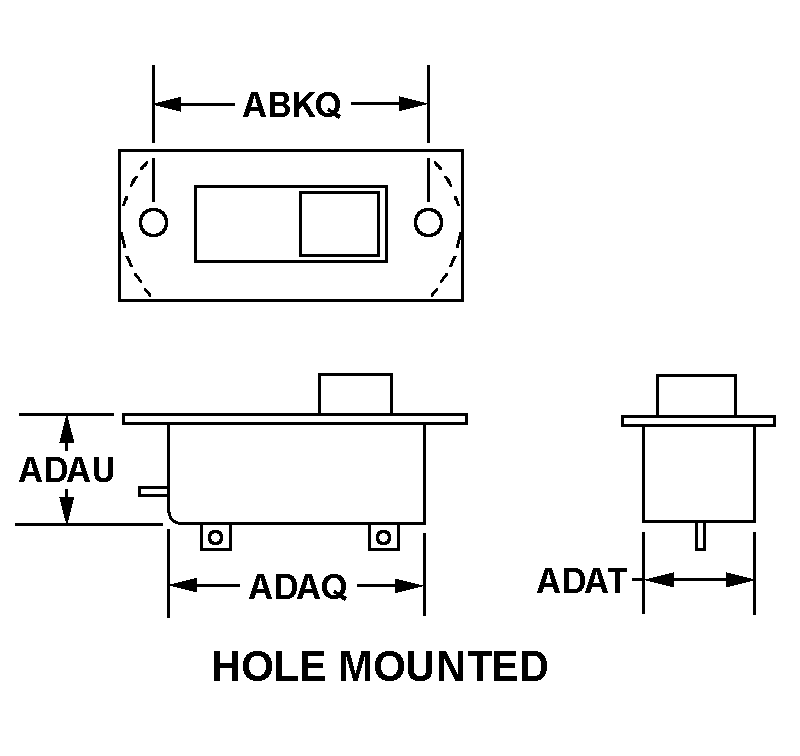

BODY STYLE	3N HOLE MOUNTED
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	1.125 INCHES NOMINAL
BODY WIDTH	0.531 INCHES NOMINAL
BODY HEIGHT	0.437 INCHES NOMINAL
ACTUATOR POSITION-ACTION RELATIONSHIP	LEFT POSITION MAINTAINED AND RIGHT POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	6 TAB, SOLDER LUG
UNTHREADED MOUNTING HOLE DIAMETER	1.125 INCHES NOMINAL
SPECIAL FEATURES	FLUSH ACTUATOR W/SCREW DRIVER SLOT

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Cognizance Codes	9N	Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg
Source of Supply	S9E	Defense Supply Center Columbus Columbus, OH 43218
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Y	TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
