Product Details | THERMOSTATIC SWITCH
5930-00-001-8534 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: M1145135182, M1-145-135-182, M1-145-135-1-8-2, M24236/1-1235, M2423611235, M528N135A145, MIL-PRF-24236/1, MILPRF242361, MILS242361, MILS24236-1, 5930-00-001-8534, 00-001-8534, 5930000018534, 000018534
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 OCT 1972 | 00-001-8534 | 00451 ( SWITCH, THERMOSTATIC ) |
Drawings & Photos | NSN 5930-00-001-8534
Demand History | NSN 5930-00-001-8534
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILPRF242361 | 2023-06-178 | 20 | Taiwan |
| 5930-00-001-8534 | 2017-05-130 | 2 | United Kingdom |
| MILPRF242361 | 2011-05-137 | 2 | US |
| MILS242361 | 2011-01-31 | 38 | US |
Cross Reference | NSN 5930-00-001-8534
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M1-145-135-1-8-2 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| M1-145-135-182 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| M1145135182 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| M24236/1-1235 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M528N135A145 | 97896 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| MIL-PRF-24236/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS24236-1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-001-8534
Related Products | NSN 5930-00-001-8534
Technical Data | NSN 5930-00-001-8534
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 64 DISC W/FLANGE |

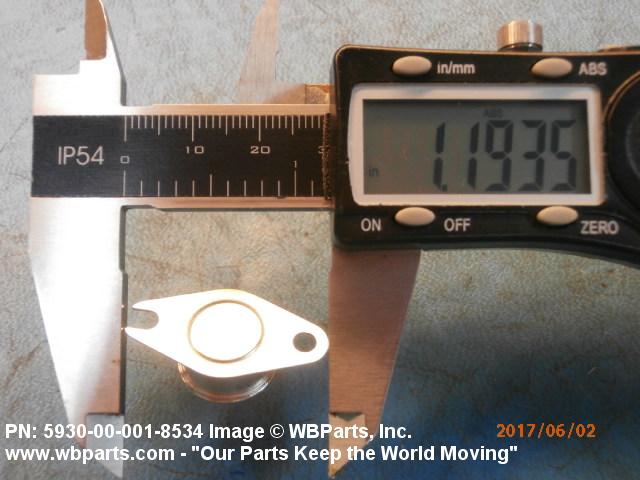

| OVERALL LENGTH | 1.190 INCHES MINIMUM AND 1.260 INCHES MAXIMUM |

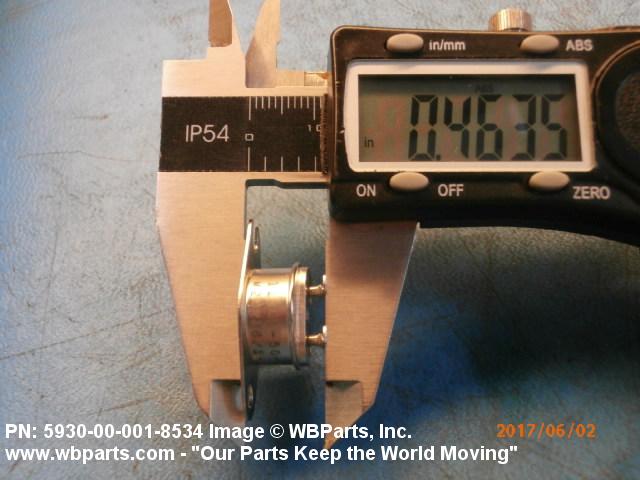

| OVERALL HEIGHT | 0.521 INCHES NOMINAL |

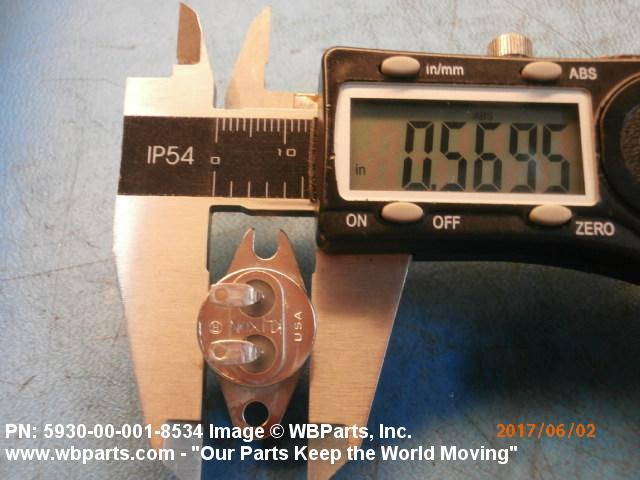

| BODY DIAMETER | 0.560 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |

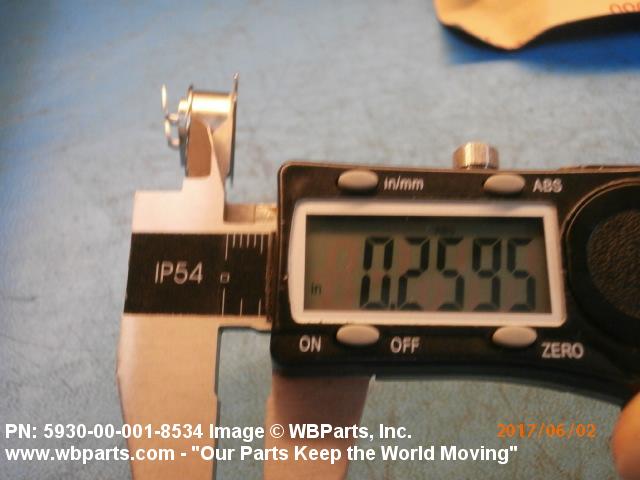

| BODY HEIGHT | 0.280 INCHES MINIMUM AND 0.395 INCHES MAXIMUM |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | DEACTUATION POINT NOT ADJUSTABLE AND ACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 145.00 ACTUATION POINT NOMINAL DEGREES FAHRENHEIT AND 135.00 DEACTUATION POINT NOMINAL DEGREES FAHRENHEIT |
| CONTACT VOLTAGE RATING IN VOLTS | 115.0 AC AT SEA LEVEL FIRST VOLTAGE 28.0 DC AT SEA LEVEL SECOND VOLTAGE |
| FREQUENCY IN HERTZ | 60.0 FIRST VOLTAGE |
| CONTACT LOAD CURRENT RATING | 2.0 AMPERES RESISTIVE LOAD AND 1.0 AMPERES INDUCTIVE LOAD AND 500.0 MILLIAMPERES LAMP LOAD FIRST VOLTAGE 5.0 AMPERES RESISTIVE LOAD AND 2.5 AMPERES INDUCTIVE LOAD AND 1.0 AMPERES LAMP LOAD SECOND VOLTAGE |
| OPERATING TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 500.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |
| TERMINAL TYPE | TURRET |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE AND SLOT |

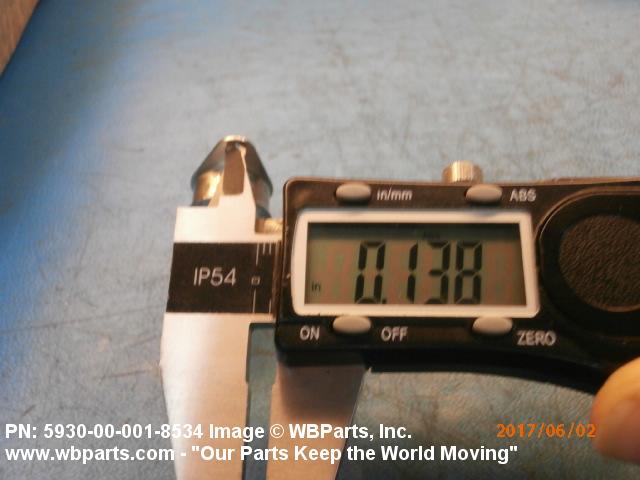

| UNTHREADED MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |

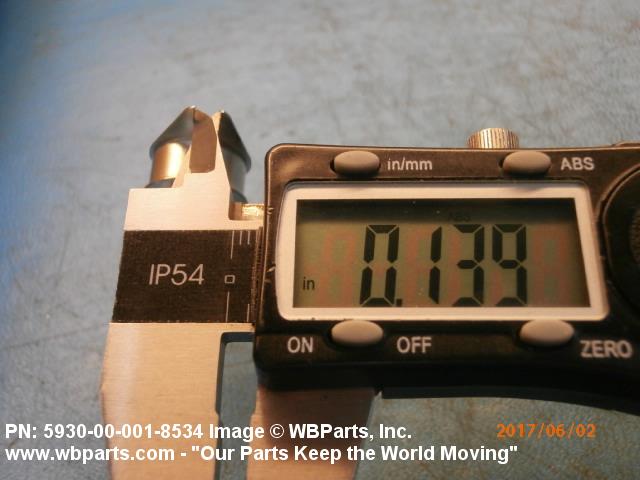

| MOUNTING SLOT WIDTH | 0.140 INCHES NOMINAL |
