NSN 5925-00-628-7755 ETN6729, 00-628-7755, 006287755
Product Details | CIRCUIT BREAKER SUBASSEMBLY
5925-00-628-7755 Two or more different types of items, having a common mounting or mounted on each other, which together form a portion of a circuit breaker, but which in itself is not a complete functioning item and cannot be assigned a more definite item name. Excludes COIL, ELECTRICAL; THERMAL RELEASE, CIRCUIT BREAKER; and TRIPPER, CIRCUIT BREAKER.
Part Alternates: ETN6729, 5925-00-628-7755, 00-628-7755, 5925006287755, 006287755
Electrical and Electronic Equipment Components | Circuit Breakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-628-7755 | 00595 ( CIRCUIT BREAKER SUBASSEMBLY ) |

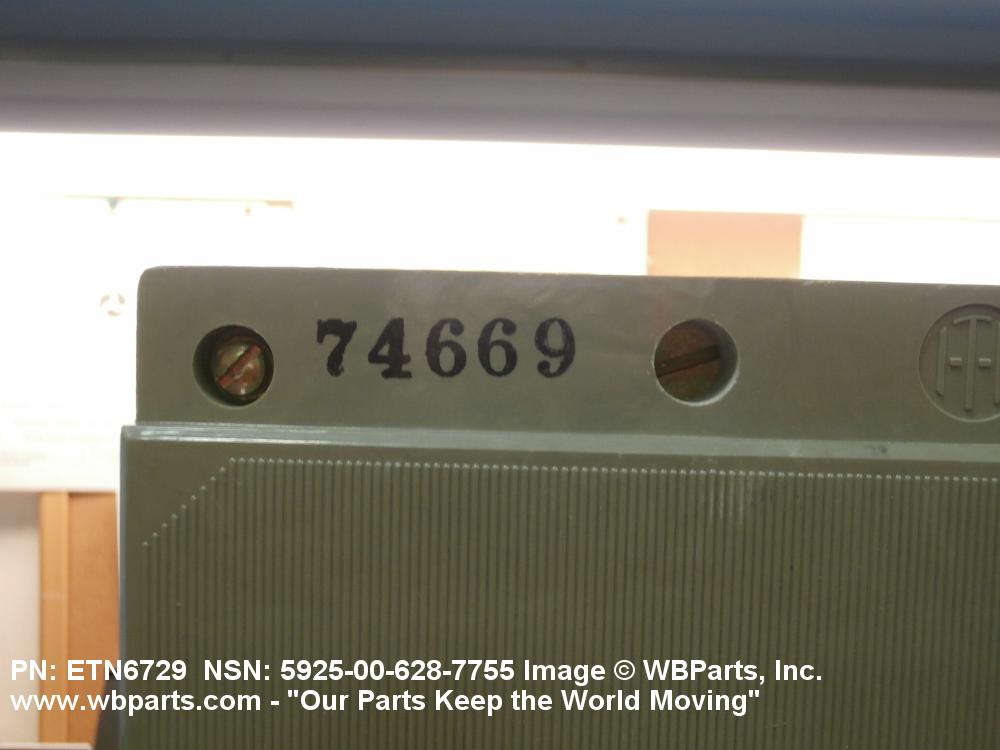

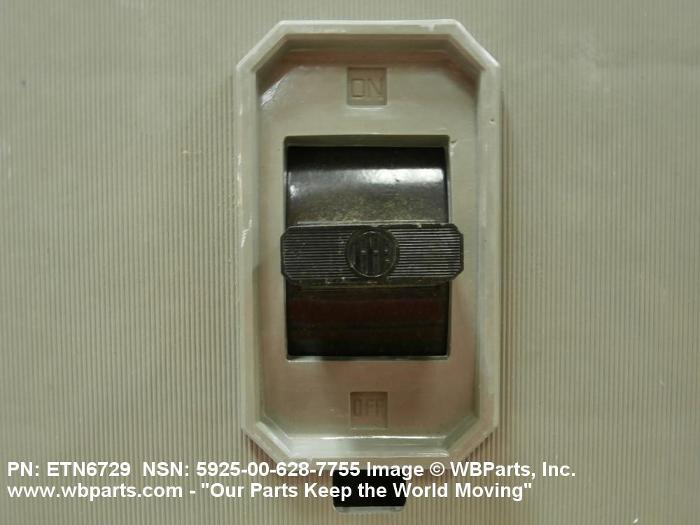

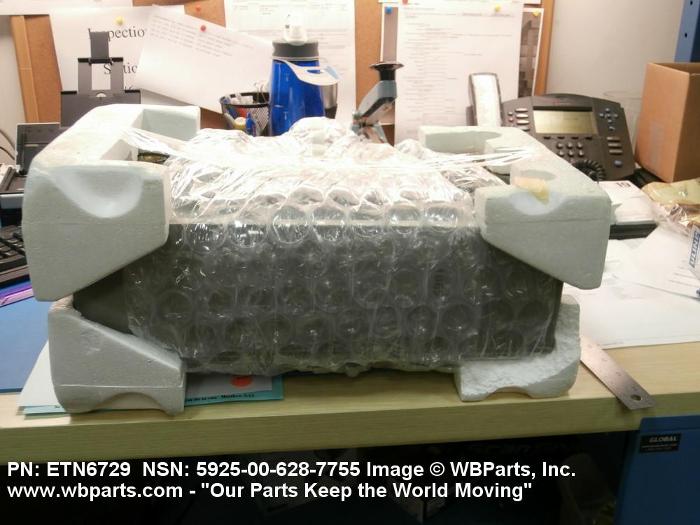

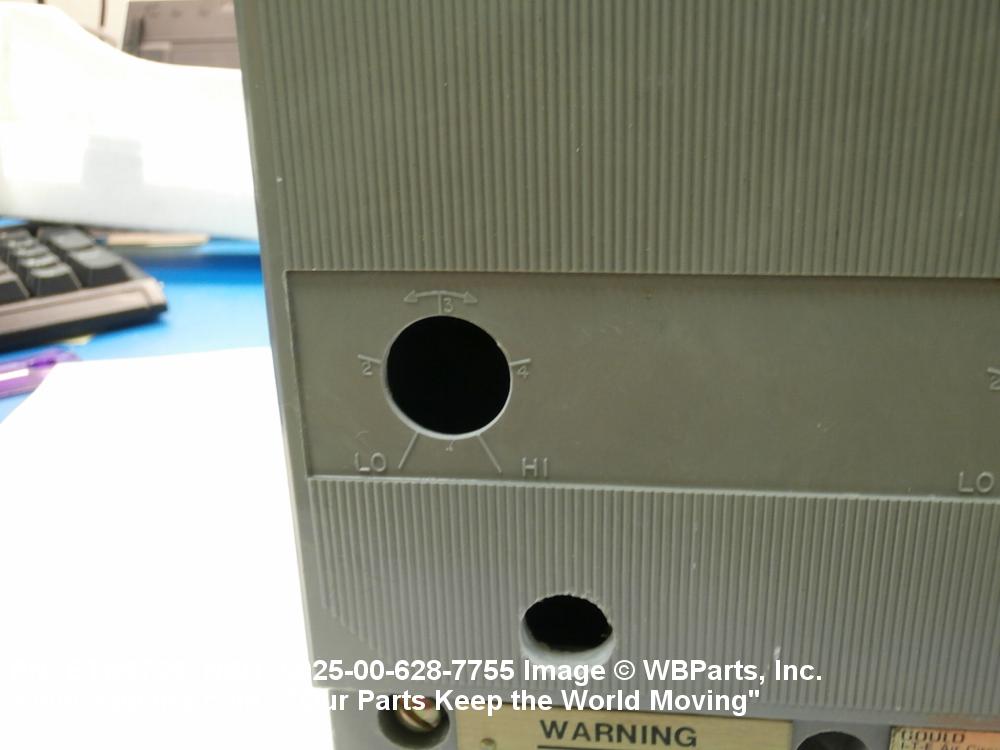

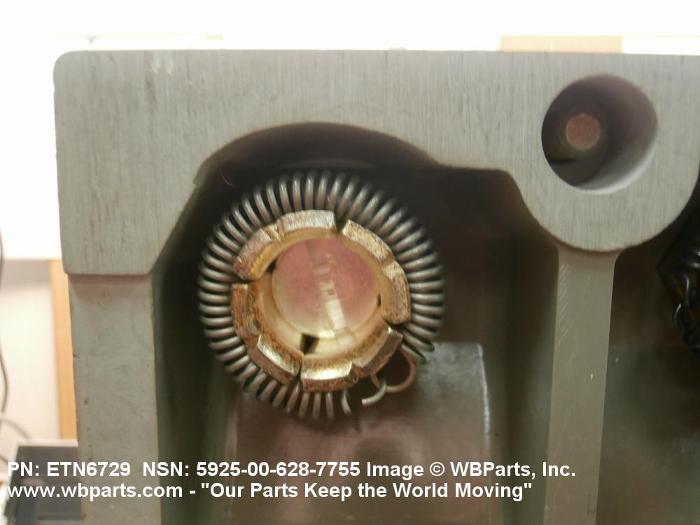

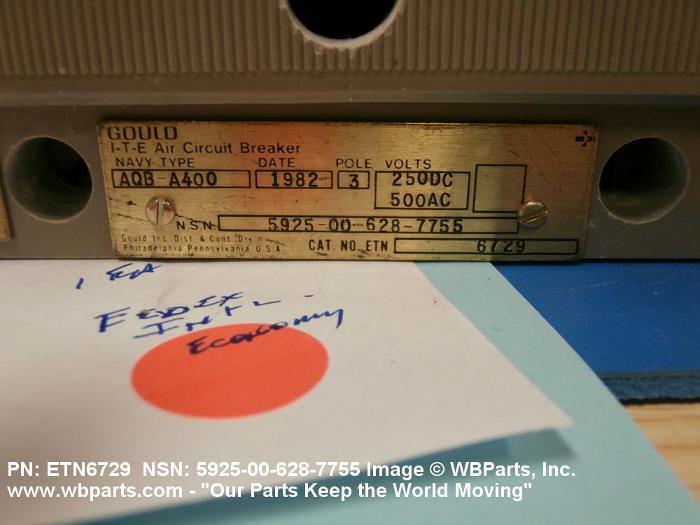

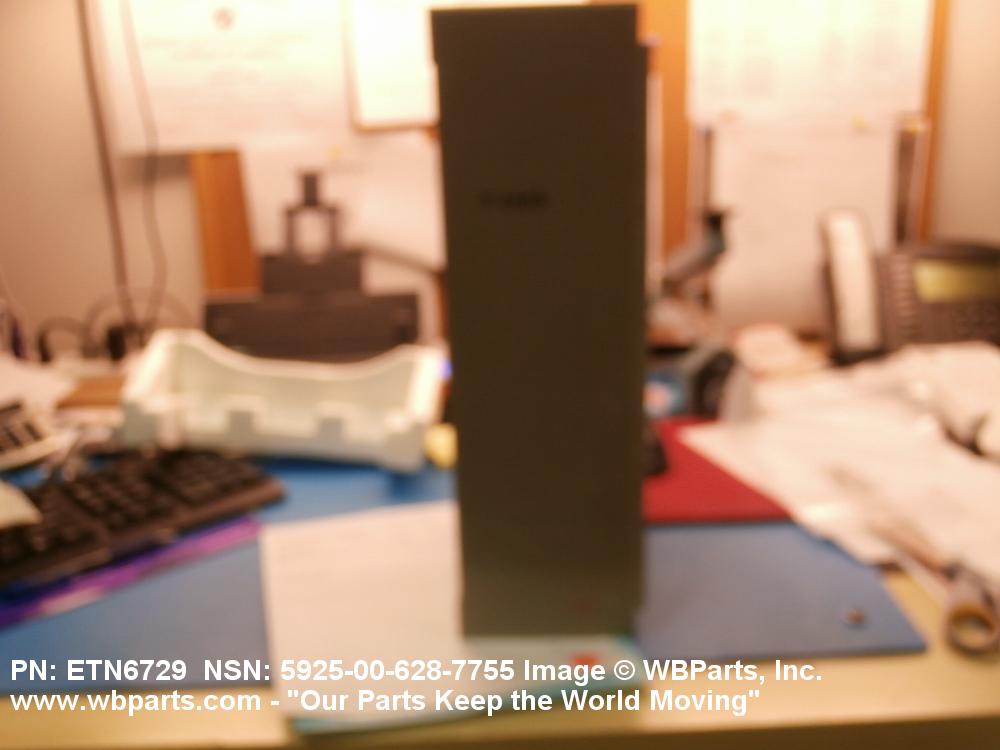

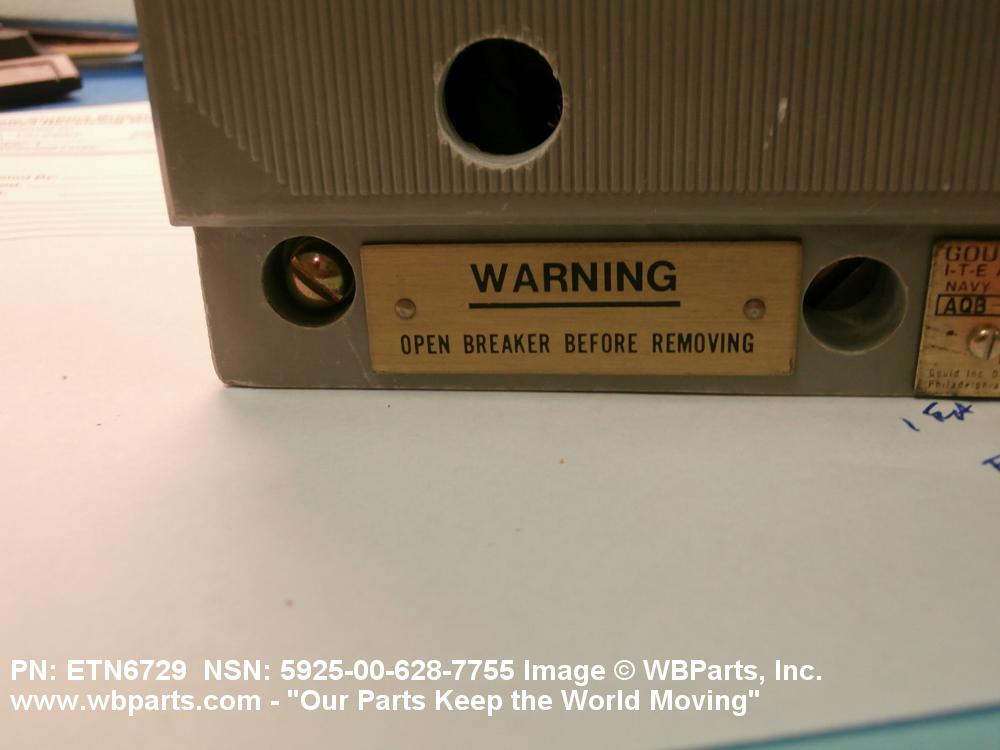

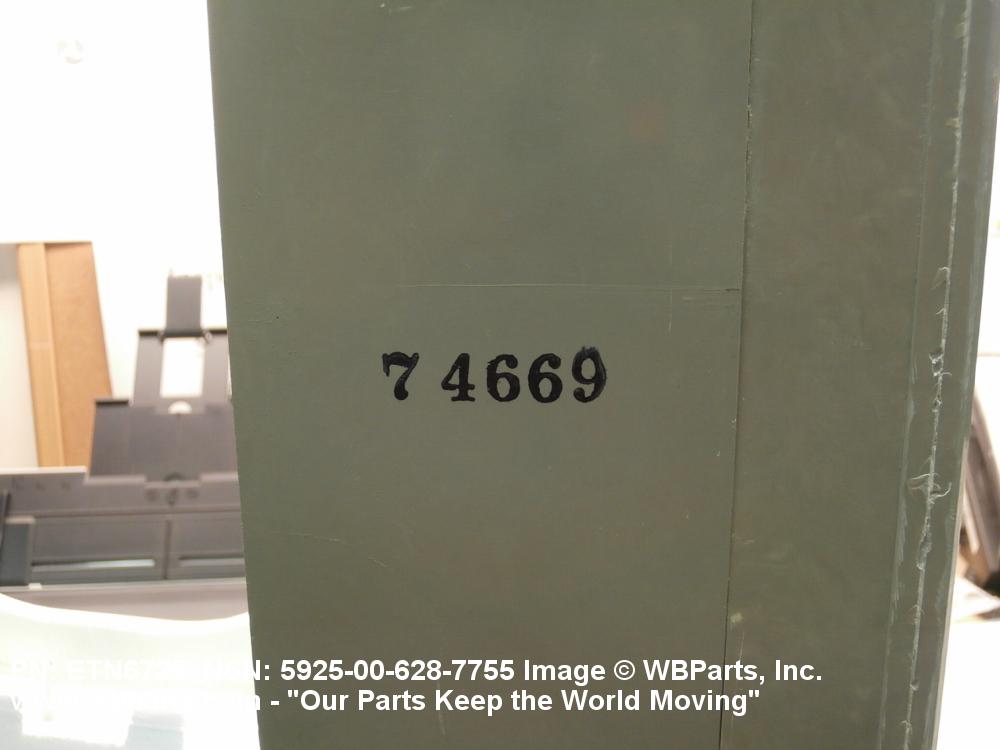

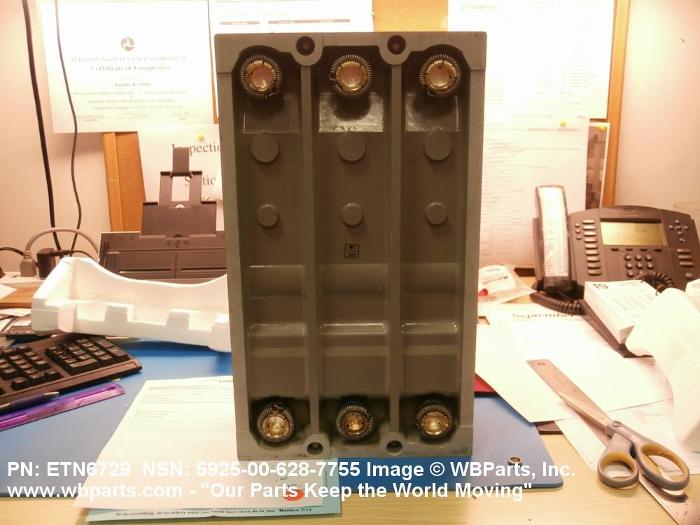

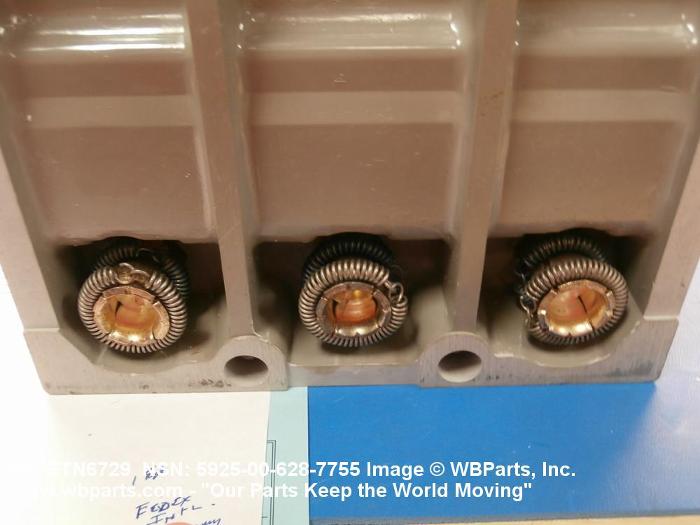

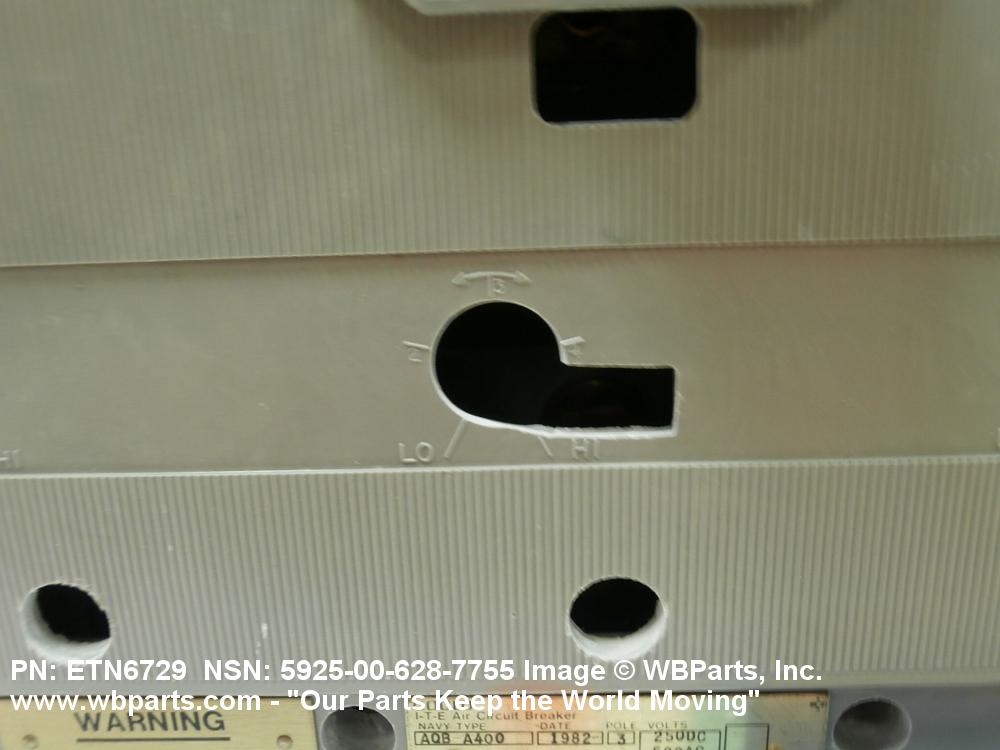

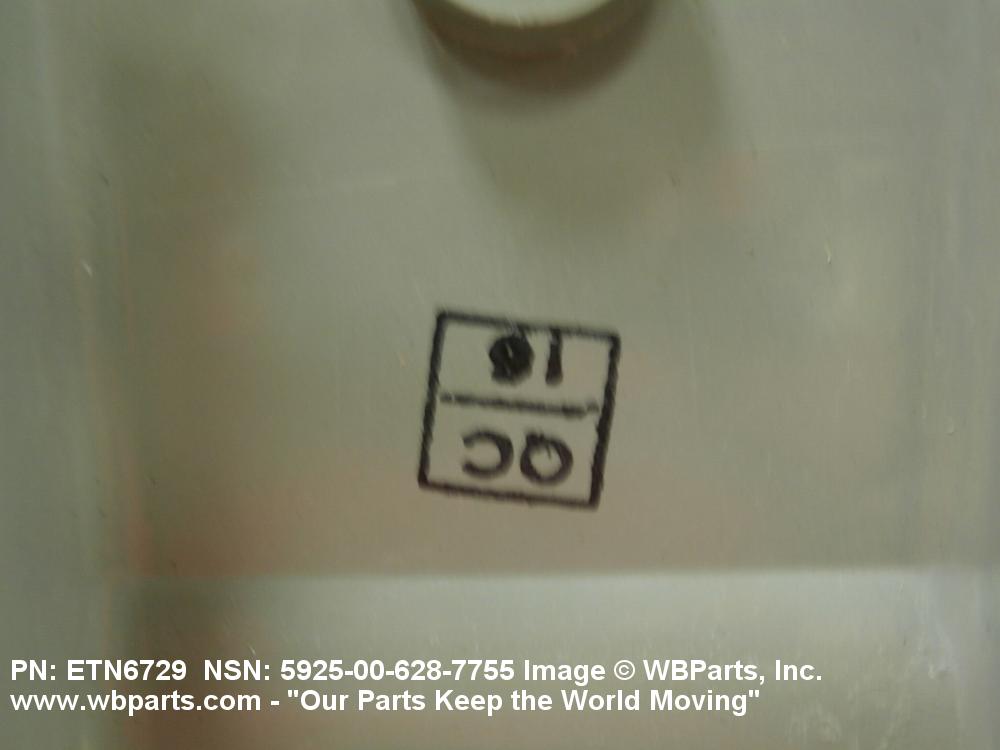

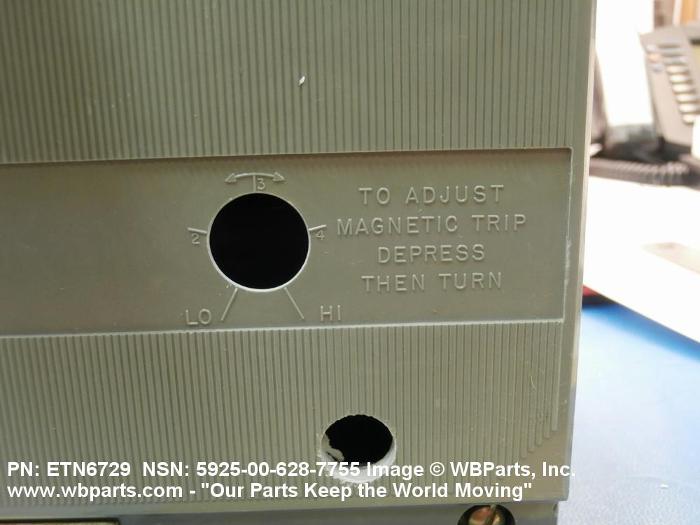

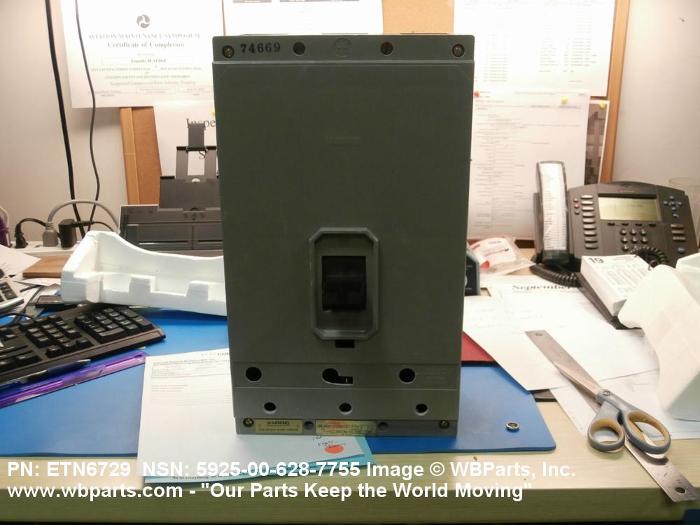

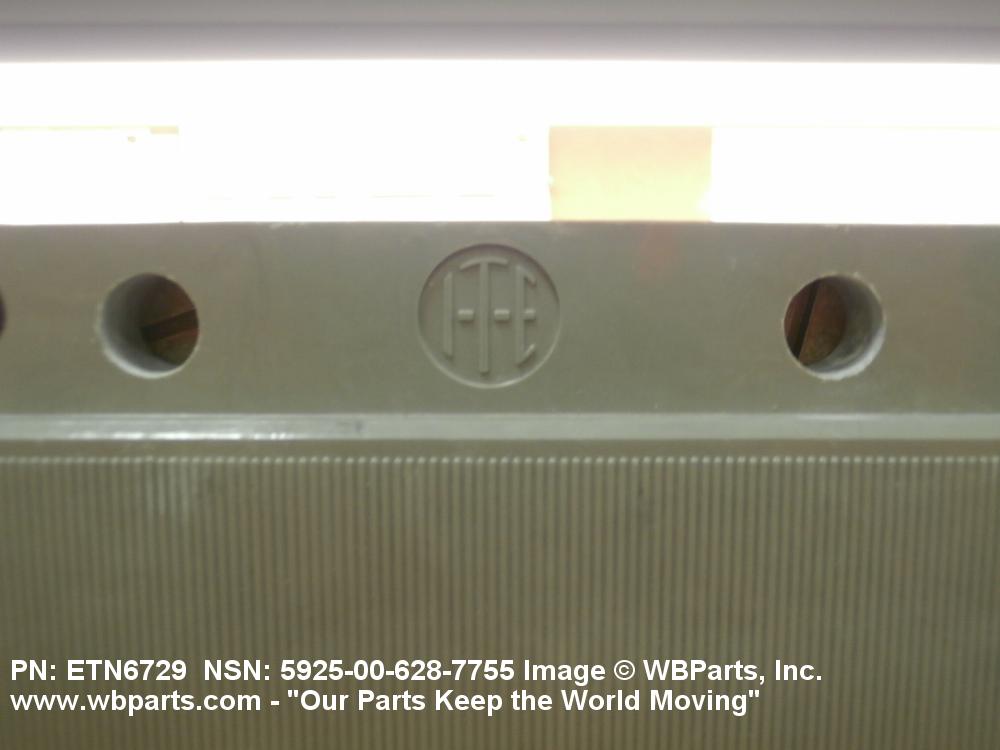

Drawings & Photos | NSN 5925-00-628-7755
Demand History | NSN 5925-00-628-7755
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5925-00-628-7755 | 2012-11-312 | 1 | Taiwan |
| 5925-00-628-7755 | 2012-08-233 | 1 | Taiwan |
| 5925-00-628-7755 | 2011-09-258 | 1 | Taiwan |
Cross Reference | NSN 5925-00-628-7755
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ETN6729 | 30086 | SPD ELECTRICAL SYSTEMS, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5925-00-628-7755
Technical Data | NSN 5925-00-628-7755
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 15.500 INCHES NOMINAL |
| OVERALL HEIGHT | 6.250 INCHES NOMINAL |
| OVERALL WIDTH | 9.000 INCHES NOMINAL |

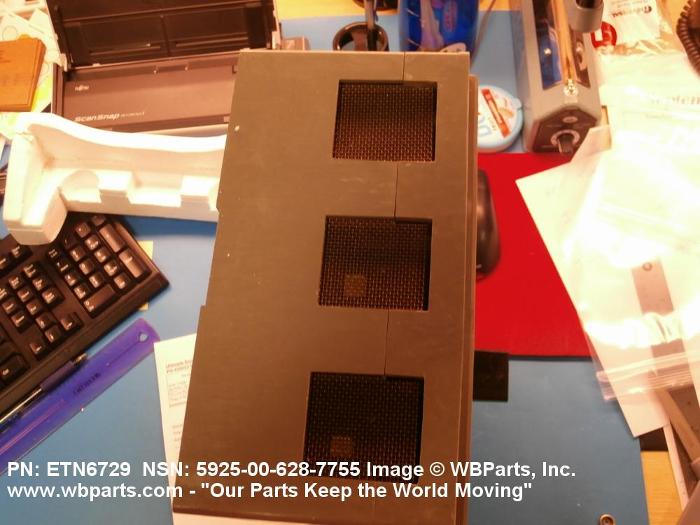

| SPECIAL FEATURES | MAJOR COMPONENTS:ARC CHUTE ASSY 1;BASE 1;COVER 1;MTG CONFIGURATION:FOUR 11/32 IN.DIA MTG HOLES ON 3 IN.BY 14-5/8 IN.CENTERS; |
Restrictions/Controls & Freight Information | NSN 5925-00-628-7755
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5925-00-628-7755
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
