NSN 5920-01-565-6972 1810252-16 , 217.015.P, 217015.P
Product Details | CARTRIDGE FUSE
5920-01-565-6972 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: 1810252-16 , 217.015.P, 217015.P , 217015P, 5920-01-565-6972, 01-565-6972, 5920015656972, 181025216, 015656972
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 AUG 2008 | 01-565-6972 | 00248 ( FUSE, CARTRIDGE ) |
Drawings & Photos | NSN 5920-01-565-6972
Demand History | NSN 5920-01-565-6972
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 217015.P | 2022-10-277 | 1 | DIBBS |
| 217015.P | 2020-12-352 | 10 | DIBBS |
| 5920-01-565-6972 | 2017-10-277 | 69 | DIBBS |
| 5920-01-565-6972 | 2013-11-324 | 53 | DIBBS |
| 5920-01-565-6972 | 2013-11-319 | 69 | DIBBS |
| 5920-01-565-6972 | 2013-11-308 | 53 | DIBBS |
| 5920-01-565-6972 | 2013-10-304 | 69 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-01-565-6972
Technical Data | NSN 5920-01-565-6972
| Characteristic | Specifications |
|---|---|

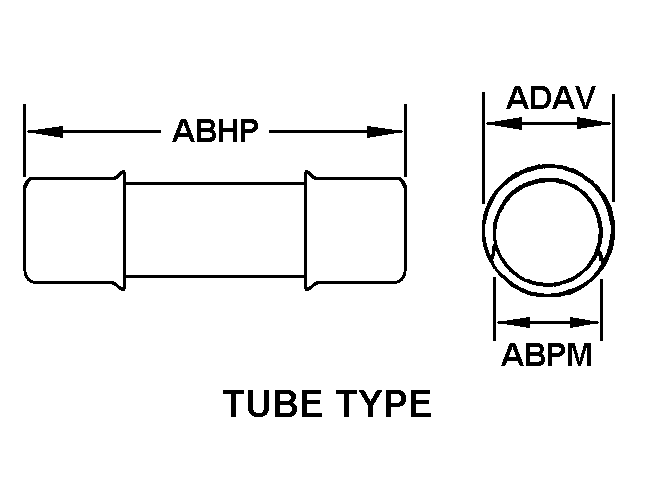

| BODY STYLE | 6A TUBE TYPE |
| OVERALL LENGTH | 20.0 MILLIMETERS MAXIMUM |
| OVERALL DIAMETER | 5.2 MILLIMETERS MAXIMUM |
| CONTINUOUS CURRENT RATING IN AMPS | 15.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| SPECIAL FEATURES | GLASS BODY, BRASS CAP; -55 TO 125 DEG C OPERATING TEMPERATURE; 0.004 OHMS NOMINAL RESISTANCE |
Restrictions/Controls & Freight Information | NSN 5920-01-565-6972
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062060 | FUSES NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZE | New Zealand ZF ZG |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-01-565-6972
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
