NSN 5920-01-484-0990 116302, 01-484-0990, 014840990
Product Details | BLOCK FUSEHOLDER
5920-01-484-0990 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.
Part Alternates: 116302, 5920-01-484-0990, 01-484-0990, 5920014840990, 014840990
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 APR 2001 | 01-484-0990 | 28908 ( FUSEHOLDER, BLOCK ) |
Drawings & Photos | NSN 5920-01-484-0990
Demand History | NSN 5920-01-484-0990
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 116302 | 2024-03-77 | 1 | DIBBS |
| 116302 | 2022-07-208 | 1 | DIBBS |
Cross Reference | NSN 5920-01-484-0990
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 116302 | 63225 | GEC ALSTHOM INTL INC ENTRELEC DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-01-484-0990
Related Products | NSN 5920-01-484-0990
Technical Data | NSN 5920-01-484-0990
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 4 |
| CURRENT CARRYING RATING IN AMPS | 32.0 |
| VOLTAGE IN VOLTS | 600.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 4 FERRULE |

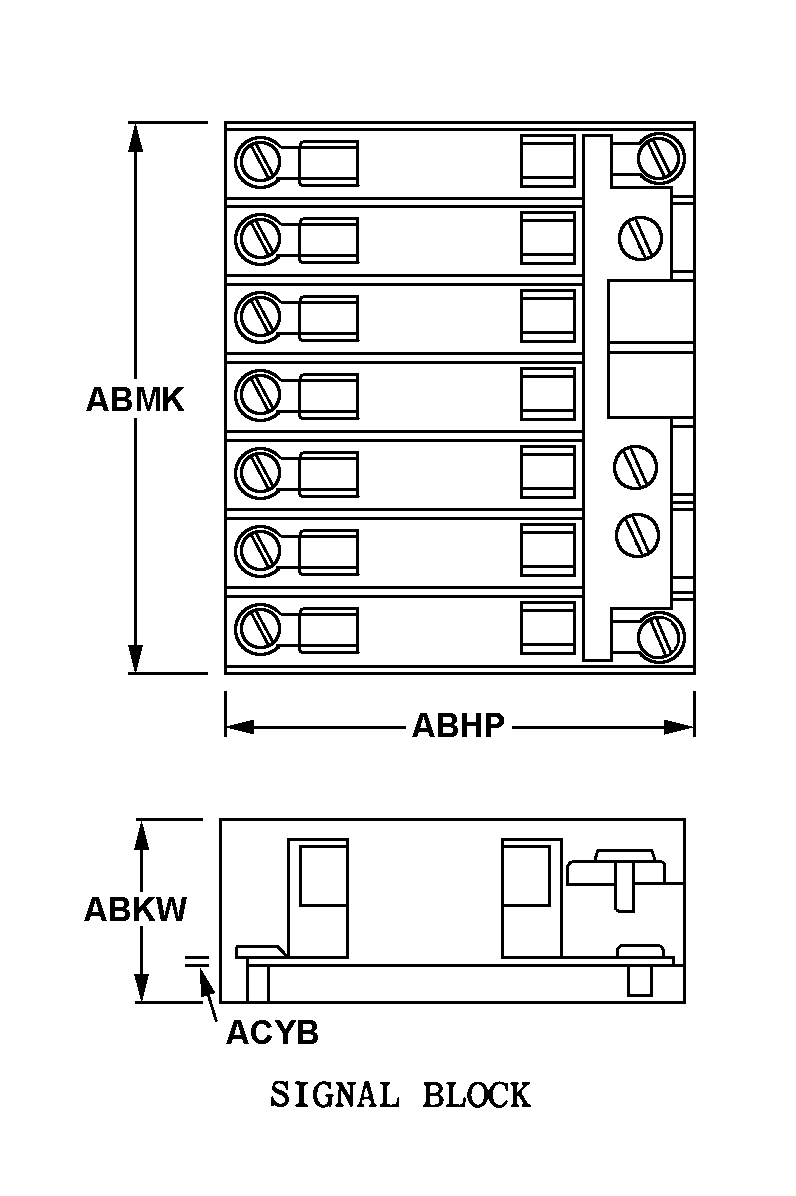

| BODY STYLE | C1 SIGNAL BLOCK |
| OVERALL LENGTH | 89.5 MILLIMETERS MAXIMUM |
| OVERALL WIDTH | 79.5 MILLIMETERS MINIMUM AND 97.5 MILLIMETERS MAXIMUM |
| MOUNTING HOLE STYLE | F14 PANEL MOUNTING |
| ACCOMMODATED FUSE LENGTH | 1.500 INCHES MAXIMUM |
| ACCOMMODATED FUSE WIDTH | 0.406 INCHES MAXIMUM |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 10 POLE TO TWO POLE, DOUBLE BRANCH, SOLID NEUTRAL |
| SPECIAL FEATURES | MB 10/22.SF BLOCK WITH-OUT A INDICATOR;GRAYBODY |
| III END ITEM IDENTIFICATION | BLOCKS CAN BE GANGED FOR MULTIPOLE OPERATION;CAN USE STD OR SLOW-BLOW OR QUICK-BLOW FUSES |
Restrictions/Controls & Freight Information | NSN 5920-01-484-0990
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062060 | FUSES NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-01-484-0990
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
