NSN 5920-01-422-5907 C350KT61, 95-0112-95 PC NO 5, 95011295PCNO5
Product Details | BLOCK FUSEHOLDER
5920-01-422-5907 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.
Part Alternates: C350KT61, 95-0112-95 PC NO 5, 95011295PCNO5, 5920-01-422-5907, 01-422-5907, 5920014225907, 014225907
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 DEC 1995 | 01-422-5907 | 28908 ( FUSEHOLDER, BLOCK ) |
Drawings & Photos | NSN 5920-01-422-5907
Demand History | NSN 5920-01-422-5907
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-01-422-5907 | 2016-05-130 | 40 | DIBBS |
| 5920-01-422-5907 | 2016-04-119 | 40 | DIBBS |
| 5920-01-422-5907 | 2012-03-68 | 3 | DIBBS |
| 5920-01-422-5907 | 2011-08-228 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-01-422-5907
Technical Data | NSN 5920-01-422-5907
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 3 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 250.0 |

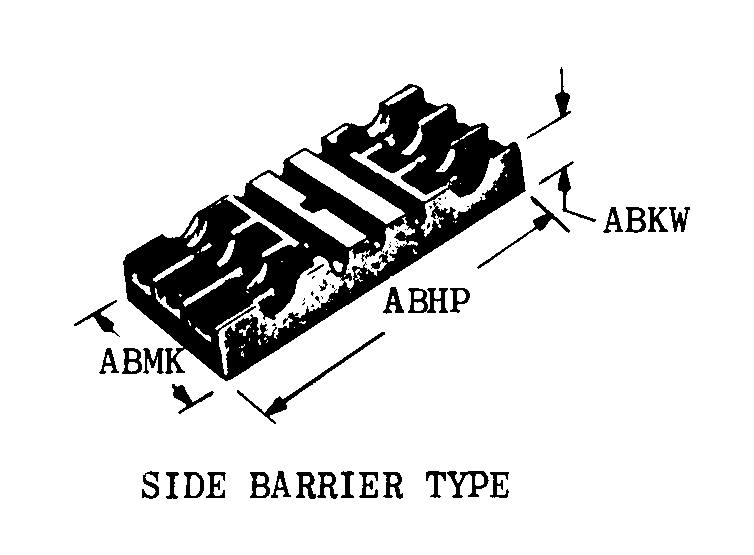

| BODY STYLE | C14 SIDE BARRIER TYPE |
| OVERALL LENGTH | 3.620 INCHES NOMINAL |
| OVERALL HEIGHT | 2.230 INCHES NOMINAL |
| OVERALL WIDTH | 3.100 INCHES NOMINAL |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 3 POLE, MAINLINE, FUSED |
Restrictions/Controls & Freight Information | NSN 5920-01-422-5907
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062060 | FUSES NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-01-422-5907
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
