NSN 5920-01-336-9844 AA55428, AA55428014, AA55428-014
Product Details | BLOCK FUSEHOLDER
5920-01-336-9844 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.
Part Alternates: AA55428, AA55428014, AA55428-014, H600303SR, H60030-3SR, FUSEHOLDER BLOCK, FUSEHOLDERBLOCK, 1B0026, 60328, 5920-01-336-9844, 01-336-9844, 5920013369844, 013369844
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 APR 1991 | 01-336-9844 | 28908 ( FUSEHOLDER, BLOCK ) |
Drawings & Photos | NSN 5920-01-336-9844
Demand History | NSN 5920-01-336-9844
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-01-336-9844 | 2024-05-148 | 13 | DIBBS |
| 5920-01-336-9844 | 2023-03-71 | 13 | DIBBS |
| 5920-01-336-9844 | 2018-08-218 | 23 | DIBBS |
| 5920-01-336-9844 | 2018-07-207 | 23 | DIBBS |
| 5920-01-336-9844 | 2018-06-165 | 23 | DIBBS |
Cross Reference | NSN 5920-01-336-9844
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1B0026 | 71400 | COOPER BUSSMANN INC |
| 60328 | 21574 | MERSEN CANADA TORONTO INC FORMELYFERRAZ SHAWMUT CO |
| AA55428 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA55428-014 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| FUSEHOLDER BLOCK | 71424 | FERRAZ SHAWMUT INC |
| H60030-3SR | 11873 | MCGRAW EDISON CO USD OPNS |
| H60030-3SR | 71400 | COOPER BUSSMANN INC |
| H60030-3SR | 71424 | FERRAZ SHAWMUT INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-01-336-9844
Related Products | NSN 5920-01-336-9844
Technical Data | NSN 5920-01-336-9844
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 3 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 600.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| CONTACT MATERIAL | COPPER ALLOY |
| BODY STYLE | C6 SIDE BARRIER TYPE |
| OVERALL LENGTH | 6.750 INCHES NOMINAL |
| OVERALL HEIGHT | 1.797 INCHES NOMINAL |
| OVERALL WIDTH | 4.313 INCHES NOMINAL |
| BASE THICKNESS | 0.219 INCHES NOMINAL |

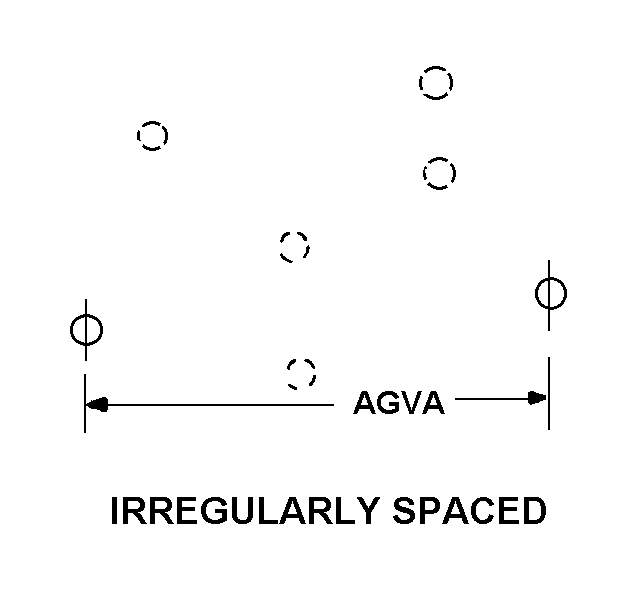

| MOUNTING HOLE STYLE | F33 IRREGULARLY SPACED |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 3.125 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 6 |
| MOUNTING HOLE DIAMETER | 0.281 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 5.000 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.812 INCHES NOMINAL |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 3 POLE, MAINLINE, FUSED |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA55428 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA55428-014 |
Restrictions/Controls & Freight Information | NSN 5920-01-336-9844
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062060 | FUSES NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
