NSN 5920-01-321-9402 LO4268, 1272361, 127236-1
Product Details | CARTRIDGE FUSE
5920-01-321-9402 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: LO4268, 1272361, 127236-1, 5920-01-321-9402, 01-321-9402, 5920013219402, 013219402
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 JUN 1990 | 01-321-9402 | 00248 ( FUSE, CARTRIDGE ) |
Drawings & Photos | NSN 5920-01-321-9402
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-01-321-9402
Related Products | NSN 5920-01-321-9402
Technical Data | NSN 5920-01-321-9402
| Characteristic | Specifications |
|---|---|

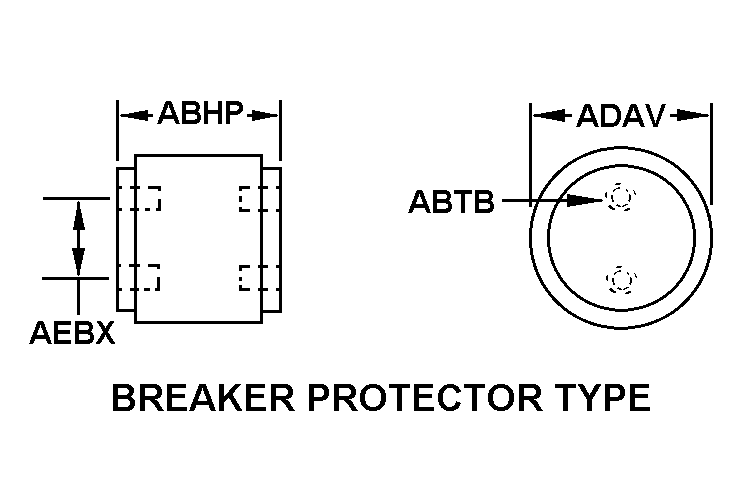

| BODY STYLE | 32A BREAKER PROTECTOR TYPE |
