Product Details | BLOCK FUSEHOLDER

5920-01-319-5198 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.

Part Alternates: BM6033SQ, BUSSMAN/2809, BUSSMAN2809, 106925 , 5518639, 60002027, 60002-027, 5920-01-319-5198, 01-319-5198, 5920013195198, 013195198, 128401122

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG) NSN Assign. NIIN
59 09 MAY 1990 01-319-5198

Drawings & Photos | NSN 5920-01-319-5198


Demand History | NSN 5920-01-319-5198

Part Number Request Date QTY Origin
106925 2022-11-329 61 DIBBS
60002-027 2022-11-329 61 DIBBS
BMM603-3SQ 2022-11-329 61 DIBBS
106925 2022-11-317 61 DIBBS
60002-027 2022-11-317 61 DIBBS
BMM603-3SQ 2022-11-317 61 DIBBS
106925 2020-07-203 117 DIBBS
60002-027 2020-07-203 117 DIBBS
BM6033SQ 2020-07-203 117 DIBBS
106925 2020-05-135 117 DIBBS
60002-027 2020-05-135 117 DIBBS
BM6033SQ 2020-05-135 117 DIBBS
5920-01-319-5198 2015-04-99 131 DIBBS
5920-01-319-5198 2014-06-161 143 DIBBS
5920-01-319-5198 2014-03-89 74 DIBBS
5920-01-319-5198 2011-09-271 60 DIBBS
5920-01-319-5198 2011-09-266 36 DIBBS
5920-01-319-5198 2011-05-132 44 DIBBS
5920-01-319-5198 2009-07-183 30 DIBBS

Cross Reference | NSN 5920-01-319-5198

Part Number Cage Code Manufacturer
128401122 31795 EATON CORPORATION
5518639 53711 NAVAL SEA SYSTEMS COMMAND
60002-027 21439 ENGINEERED ARRESTING SYSTEMS CORPORATION
BM6033SQ 71400 COOPER BUSSMANN INC
BUSSMAN/2809 71400 COOPER BUSSMANN INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5920-01-319-5198

Technical Data | NSN 5920-01-319-5198

Characteristic Specifications
FUSE ACCOMMODATION QUANTITY 3
CURRENT CARRYING RATING IN AMPS 30.0
VOLTAGE IN VOLTS 600.0
FUSE TERMINAL TYPE ACCOMMODATED FERRULE
TERMINAL TYPE AND QUANTITY 3 SCREW
CONTACT MATERIAL COPPER

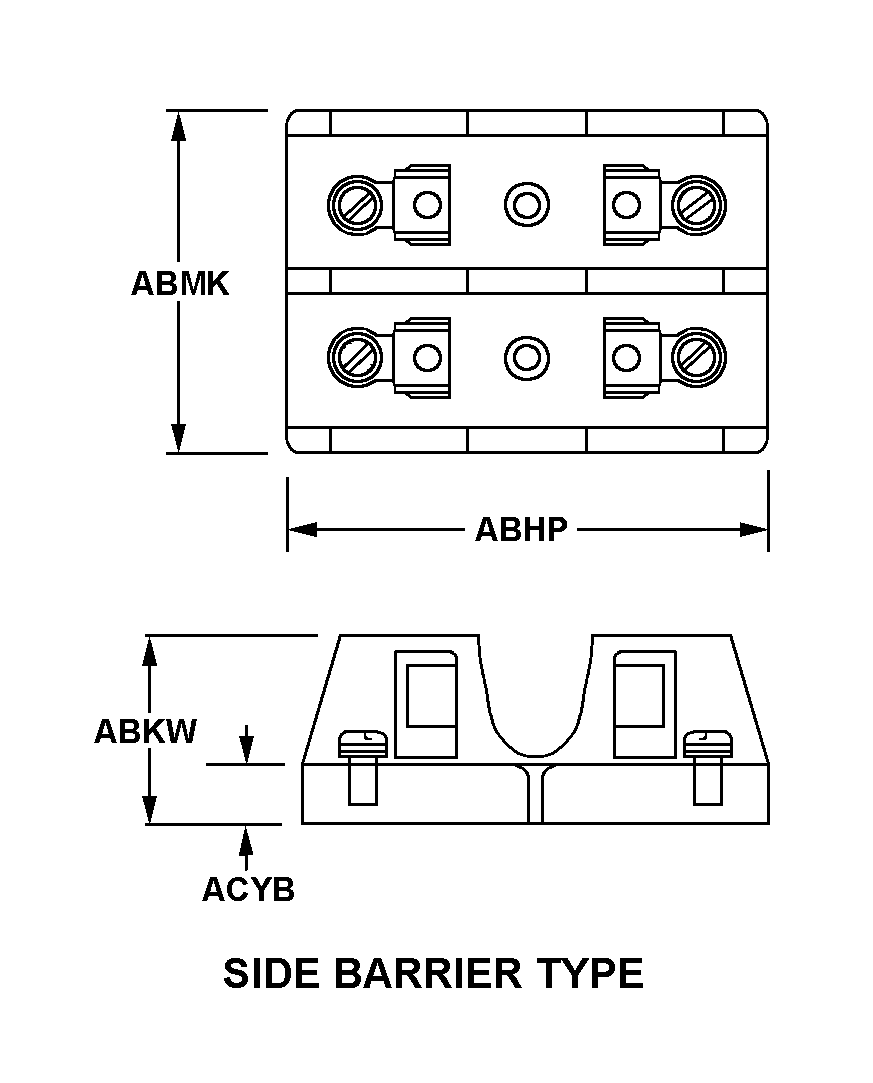

BODY STYLE C6 SIDE BARRIER TYPE
OVERALL LENGTH 3.000 INCHES NOMINAL
OVERALL HEIGHT 1.219 INCHES NOMINAL
OVERALL WIDTH 2.375 INCHES NOMINAL
MOUNTING HOLE STYLE F29 IN-LINE ALONG THE WIDTH
CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH 1.531 INCHES NOMINAL
MOUNTING HOLE QUANTITY 3
ACCOMMODATED FUSE LENGTH 1.500 INCHES NOMINAL
ACCOMMODATED FERRULE DIAMETER 0.406 INCHES NOMINAL
INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY 3 POLE, MAINLINE, FUSED
