Product Details | CARTRIDGE FUSE
5920-01-319-4101 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: W-F-1814/66, WF1814/66-F5400, WF181466, WF181466F5400, 5920-01-319-4101, 01-319-4101, 5920013194101, 013194101
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 MAY 1990 | 01-319-4101 | 00248 ( FUSE, CARTRIDGE ) |
Drawings & Photos | NSN 5920-01-319-4101
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-01-319-4101
Technical Data | NSN 5920-01-319-4101
| Characteristic | Specifications |
|---|---|

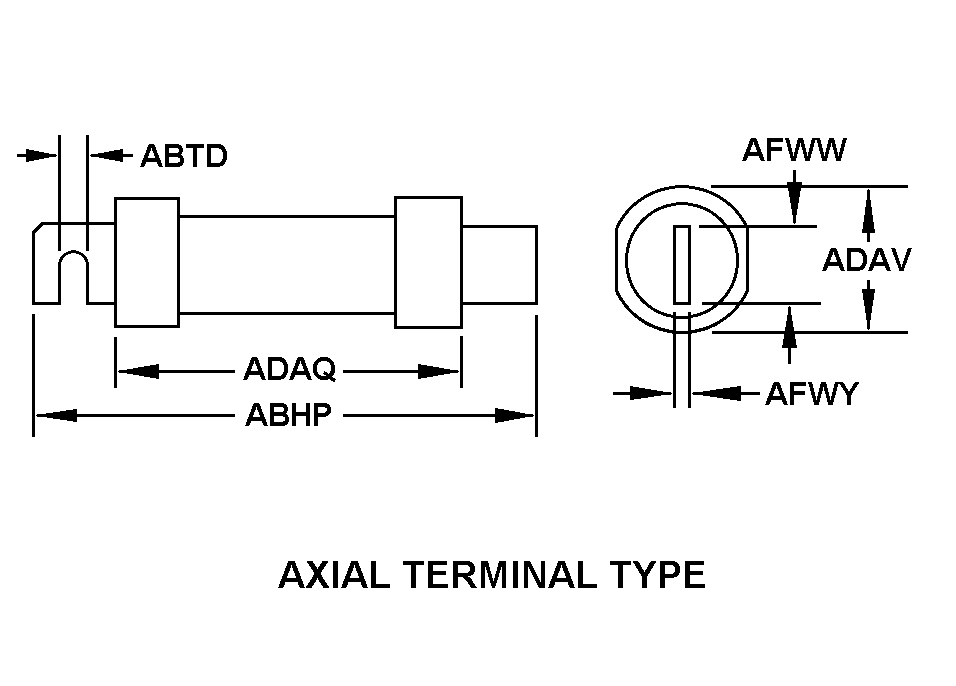

| BODY STYLE | 42A AXIAL TERMINAL TYPE |
| OVERALL LENGTH | 11.620 INCHES MINIMUM AND 11.630 INCHES MAXIMUM |
| MOUNTING SLOT WIDTH | 0.406 INCHES NOMINAL |
| BODY LENGTH | 7.125 INCHES MINIMUM AND 7.813 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.910 INCHES MAXIMUM |
| TERMINAL WIDTH | 1.625 INCHES NOMINAL |
| TERMINAL THICKNESS | 0.250 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 400.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 600.0 AC AND 600.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 200000.0 |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81348-W-F-1814 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81348-W-F-1814/66 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | W-F-1814/66 |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WF1814/66-F5400 |
