NSN 5920-01-319-1864 A5495434, SMHC04610B, GZ04610B
Product Details | ELECTRICAL SURGE ARRESTER
5920-01-319-1864 A circuit-protecting device which provides a discharge path for abnormal surges of high potential while consuming little or no power at normal operating voltage. Excludes items which absorb continuously recurring cyclic pulses. For resistors which are sensitive to voltage changes or used as elements in surge arresters, see RESISTOR, VOLTAGE SENSITIVE. See also ABSORBER, OVERVOLTAGE; AND CUTOUT DISK, PROTECTIVE.
Part Alternates: A5495434, SMHC04610B, GZ04610B, 5495434, 5920-01-319-1864, 01-319-1864, 5920013191864, 013191864
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 MAY 1990 | 01-319-1864 | 00381 ( ARRESTER, ELECTRICAL SURGE ) |

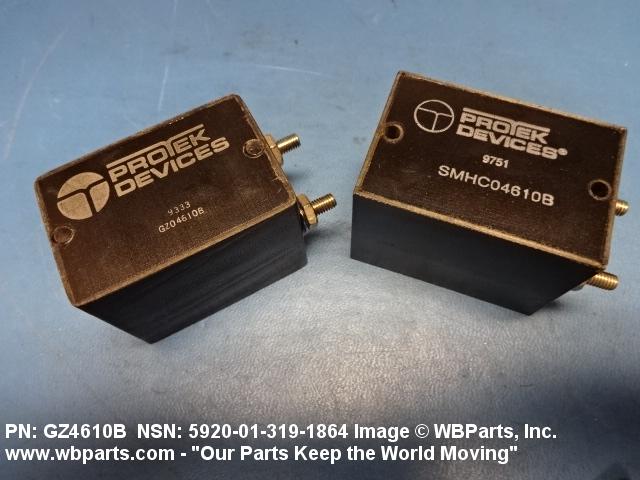

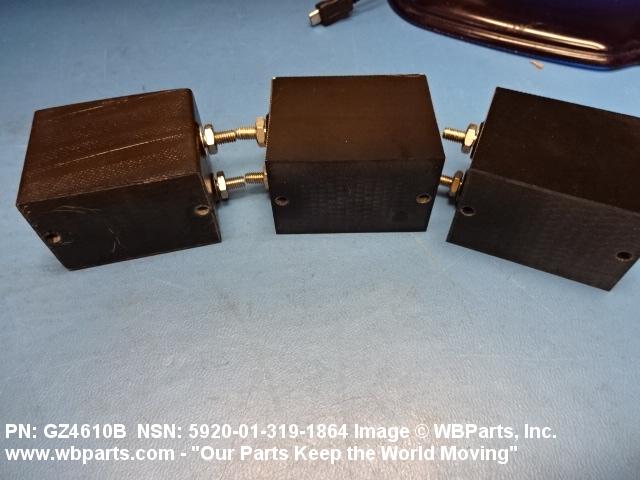

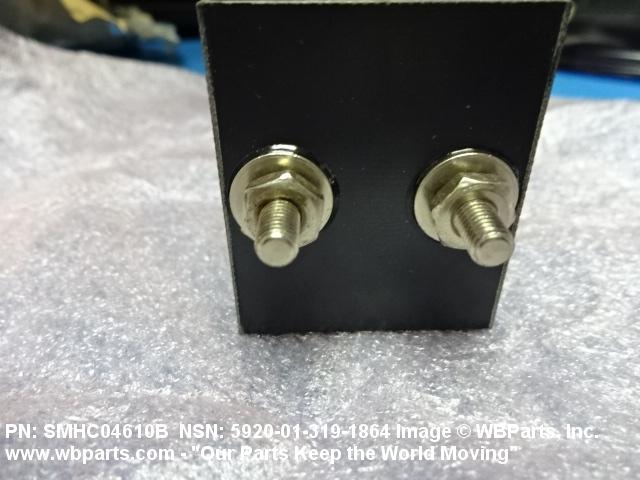

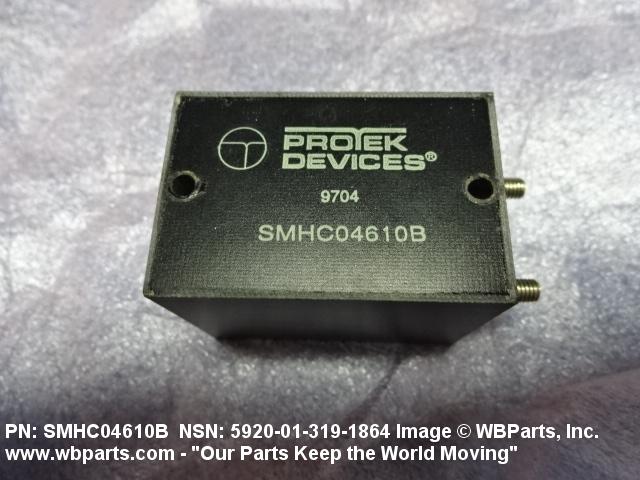

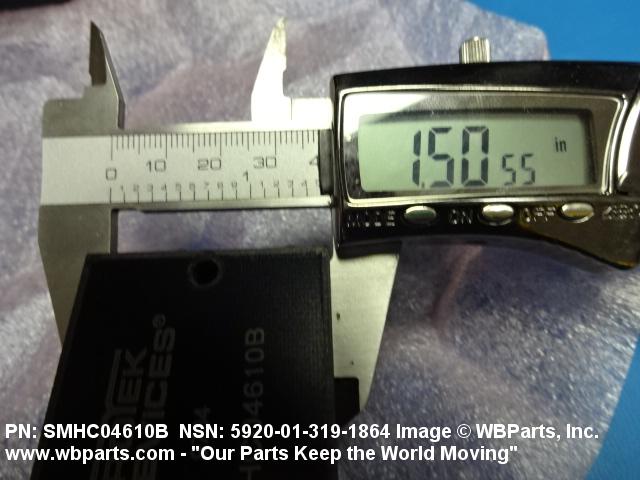

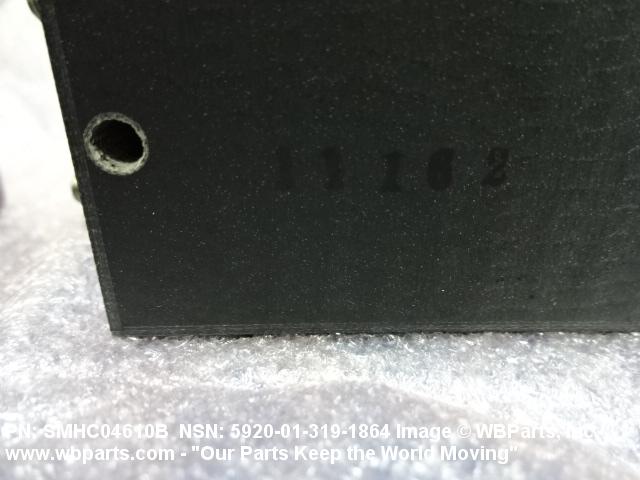

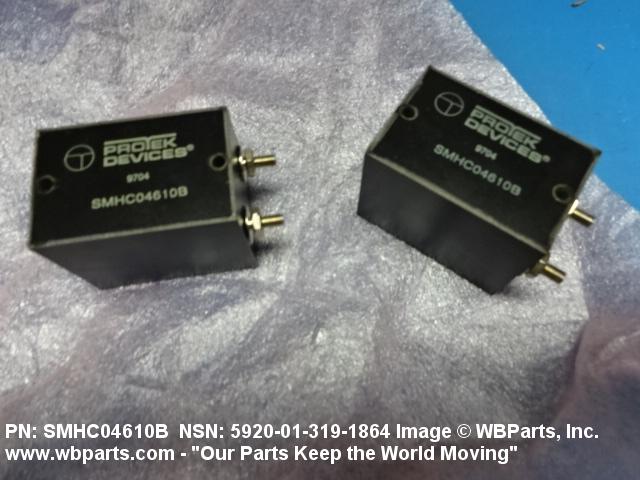

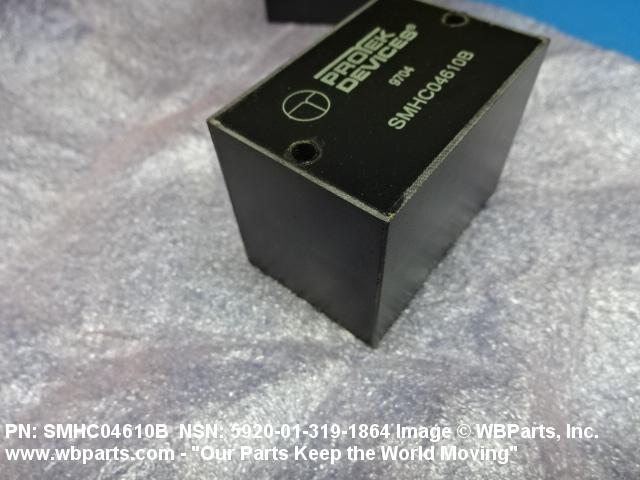

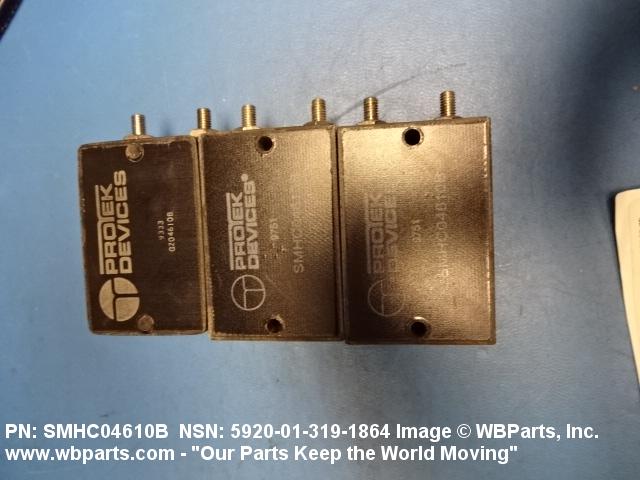

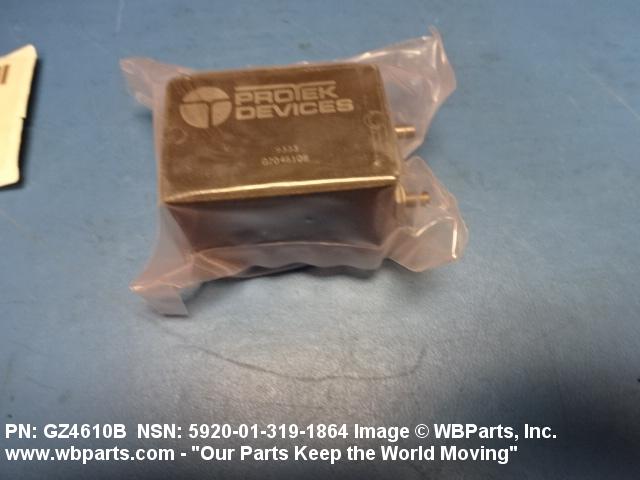

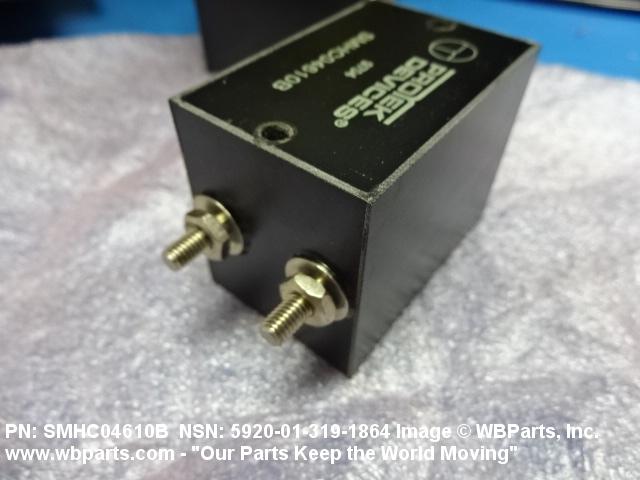

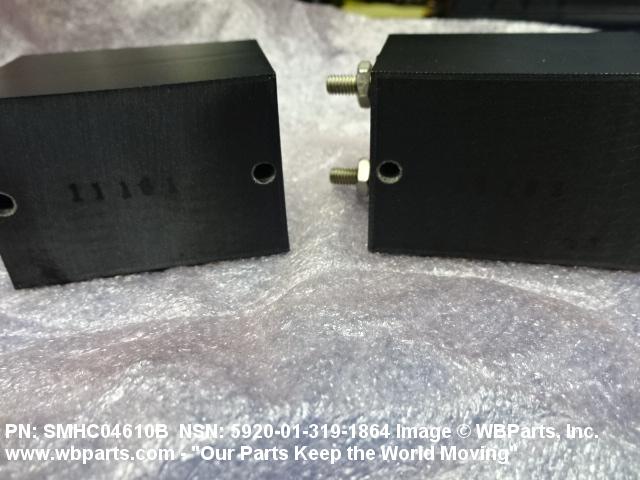

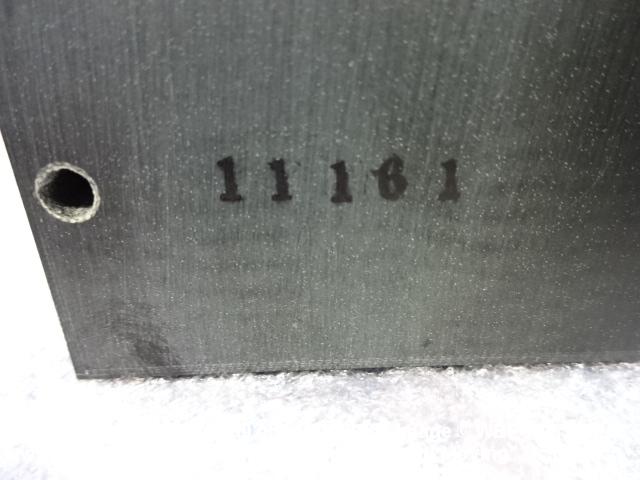

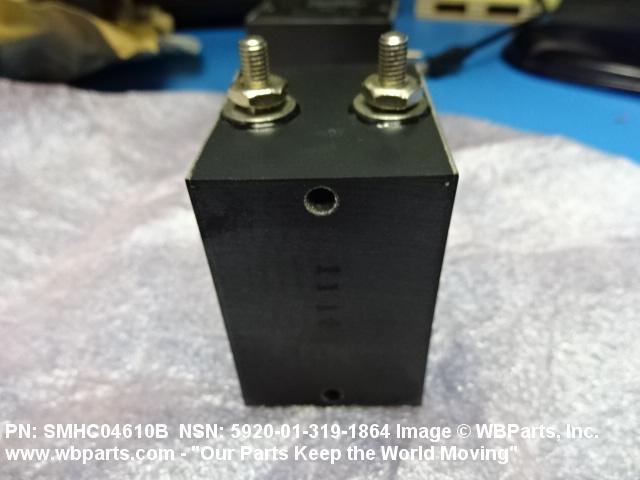

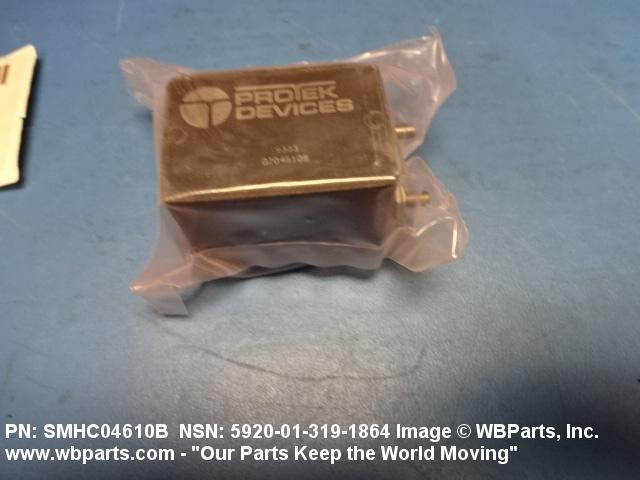

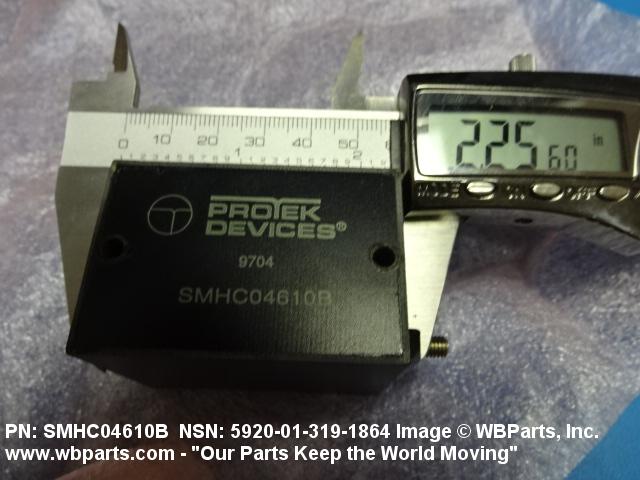

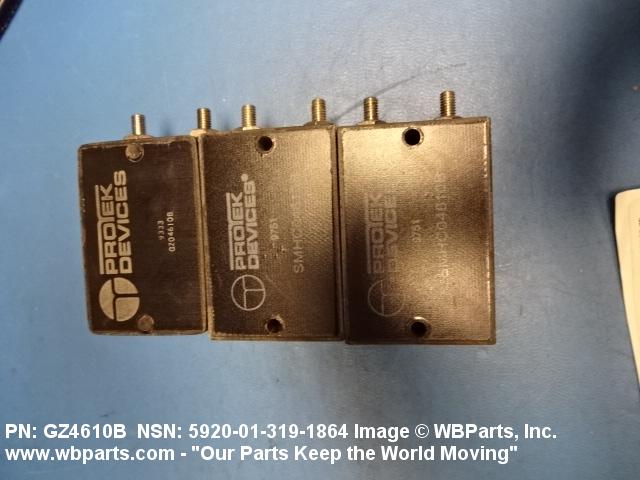

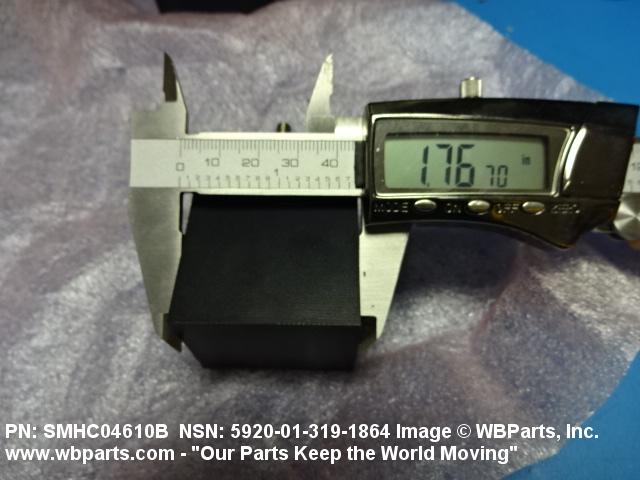

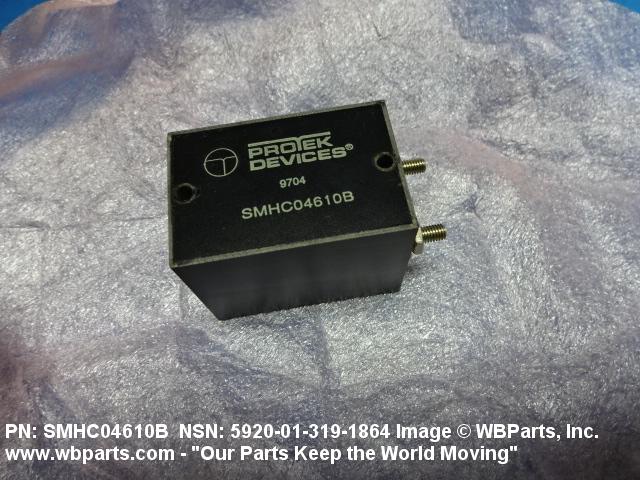

Drawings & Photos | NSN 5920-01-319-1864
Demand History | NSN 5920-01-319-1864
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-01-319-1864 | 2024-11-326 | 50 | US |
| SMHC04610B | 2023-08-213 | 3 | DIBBS |
| SMHC04610B | 2022-06-167 | 5 | DIBBS |
| SMHC04610B | 2022-04-96 | 4 | DIBBS |
| SMHC04610B | 2022-02-46 | 1 | DIBBS |
| SMHC04610B | 2020-05-125 | 5 | DIBBS |
| SMHC04610B | 2020-04-114 | 5 | DIBBS |
| 5920-01-319-1864 | 2016-11-334 | 5 | United States |
| 5920-01-319-1864 | 2016-09-269 | 14 | DIBBS |
| 5920-01-319-1864 | 2007-03-68 | 11 | DIBBS |
| 5920-01-319-1864 | 2006-07-194 | 16 | DIBBS |
| 5920-01-319-1864 | 2006-06-159 | 6 | DIBBS |
| 5920-01-319-1864 | 2006-04-110 | 3 | DIBBS |
Cross Reference | NSN 5920-01-319-1864
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5495434 | 11961 | SEMICON COMPONENTS INC |
| 5495434 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| A5495434 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| GZ04610B | 0U8A3 | PROTEK DEVICES LP DBA PROTEK DEVICES |
| GZ04610B | 24444 | GENERAL SEMICONDUCTOR INDUSTRIES INC |
| SMHC04610B | 0U8A3 | PROTEK DEVICES LP DBA PROTEK DEVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-01-319-1864
Related Products | NSN 5920-01-319-1864
Technical Data | NSN 5920-01-319-1864
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 2.730 INCHES MINIMUM AND 2.770 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.470 INCHES MINIMUM AND 1.530 INCHES MAXIMUM |
| MOUNTING METHOD | HOLES |
| MOUNTING CONFIGURATION | TWO 0.159 IN. DIA MTG HOLES SPACED 1.930 IN. MIN TO 1.970 IN. MAX C TO C ALONG LENGTH |
| BREAKDOWN VOLTAGE | 760.000 VOLTS MINIMUM AND 844.000 VOLTS MAXIMUM |
| TERMINAL TYPE | THREADED STUD |
| TERMINAL QUANTITY | 2 |
Restrictions/Controls & Freight Information | NSN 5920-01-319-1864
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062380 | LIGHTNING ARRESTERS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-01-319-1864
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
