NSN 5920-01-272-6191 313C590G08, 6292, 01-272-6191

5920-01-272-6191 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.

Part Alternates: 313C590G08, 6292, 5920-01-272-6191, 01-272-6191, 5920012726191, 012726191

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	11 FEB 1988	01-272-6191	28908 ( FUSEHOLDER, BLOCK )

Part Number	Request Date	QTY	Origin	SBA
6292	2011-05-151	20	Kuwait
6292	2010-03-75	1	United States

Part Number	Cage Code	Manufacturer
313C590G08	89946	EATON CORPORATION
6292	10741	CARLISLE AND FINCH COMPANY, THE

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 5920-01-272-6191

Compare

5920-01-272-6233, 5920-01-272-6234, 5920-01-272-7096, 5920-01-272-7097, 5920-01-272-7104

Characteristic	Specifications
FUSE ACCOMMODATION QUANTITY	3
CURRENT CARRYING RATING IN AMPS	30.0
VOLTAGE IN VOLTS	600.0
FUSE TERMINAL TYPE ACCOMMODATED	FERRULE
TERMINAL TYPE AND QUANTITY	3 FERRULE
CONTACT MATERIAL	COPPER
BODY STYLE	C9 CLIP CONNECTED TYPE
OVERALL LENGTH	6.625 INCHES NOMINAL
OVERALL HEIGHT	4.563 INCHES NOMINAL
OVERALL WIDTH	1.750 INCHES NOMINAL
BASE THICKNESS	0.906 INCHES NOMINAL

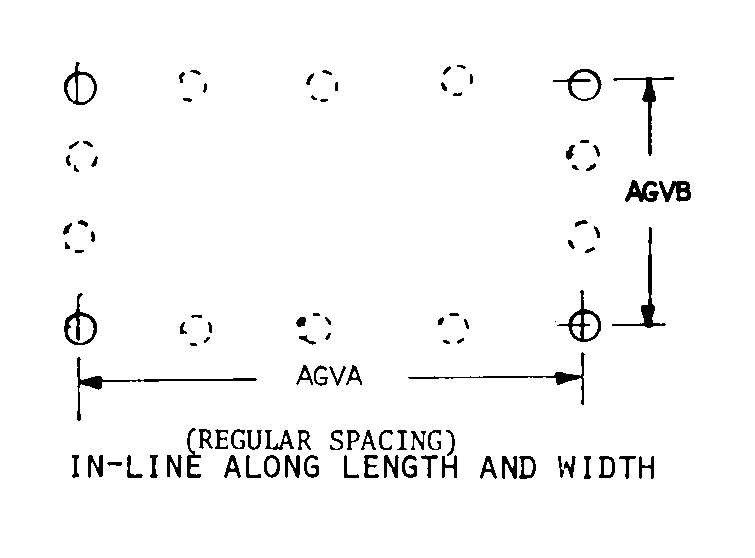

MOUNTING HOLE STYLE	F30 IN-LINE ALONG LENGTH AND WIDTH
CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH	4.250 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH	3.000 INCHES NOMINAL
MOUNTING HOLE QUANTITY	3
MOUNTING HOLE DIAMETER	0.281 INCHES NOMINAL
ACCOMMODATED FUSE LENGTH	4.250 INCHES NOMINAL
INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY	3 POLE, THREE BRANCH, SOLID NEUTRAL
III FRAGILITY FACTOR	MODERATELY RUGGED
III STORAGE TYPE	GENERAL PURPOSE WAREHOUSE

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062060	FUSES NOI IN BOXES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
