NSN 5920-01-165-2907 R294992001, R-294992-001, 294992
Product Details | EXTRACTOR POST FUSEHOLDER
5920-01-165-2907 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: R294992001, R-294992-001, 294992, 343404, 5920-01-165-2907, 01-165-2907, 5920011652907, 011652907
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 OCT 1983 | 01-165-2907 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |

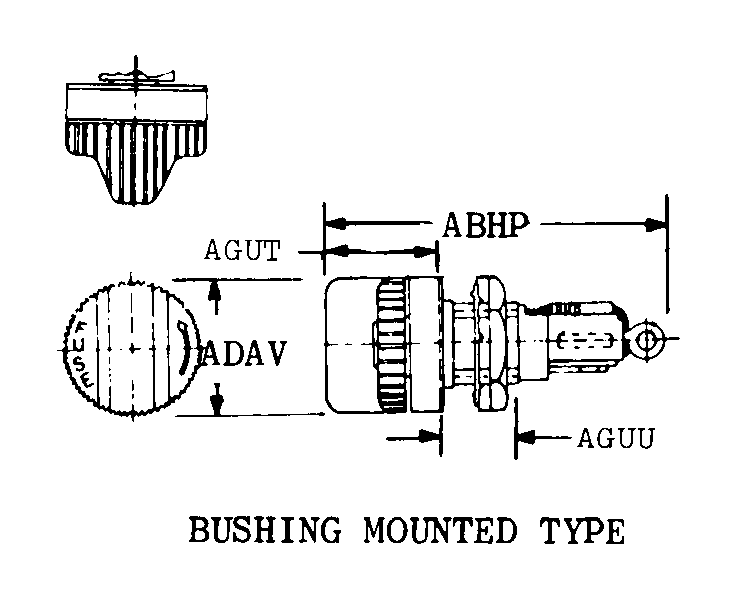

Drawings & Photos | NSN 5920-01-165-2907
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-01-165-2907
Technical Data | NSN 5920-01-165-2907
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 20.0 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | D15 BUSHING MOUNTED TYPE |
| OVERALL LENGTH | 2.375 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.938 INCHES NOMINAL |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 0.812 INCHES NOMINAL |
| BUSHING THREAD LENGTH | 0.500 INCHES NOMINAL |
| MOUNTING HOLE STYLE | F17 BUSHING MOUNTING |
| BUSHING HOLE DIAMETER | 0.627 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| FLATTED SIDE BUSHING HOLE LENGTH | 0.567 INCHES MINIMUM AND 0.575 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 1 |
| BUSHING DIAMETER | 0.625 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 1.250 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.250 INCHES NOMINAL |
| LENS COLOR | CLEAR |
| RESISTOR RATING | 100.0 OHMS |
| INDICATING LAMP VOLTAGE RANGE IN VOLTS | 100.0 TO 125.0 |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| SPECIAL FEATURES | INDICATOR LIGHT IS ON WHEN CIRCUIT IS ON |
| III TERMINAL MATERIAL | BRASS |
| III TERMINAL SURFACE TREATMENT | TIN PLATED |
| III BODY MATERIAL | PLASTIC, PHENOLIC, MIL-M-14, TYPE CFG |
