Product Details | RECEPTACLE FUSEHOLDER

5920-01-038-7388 A fuseholder which is specifically designed to accommodate one or more FUSE, PLUG. Excludes FUSEHOLDER, BLOCK.

Part Alternates: TT91402, 5920-01-038-7388, 01-038-7388, 5920010387388, 010387388

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG) NSN Assign. NIIN
59 11 APR 1977 01-038-7388

Drawings & Photos | NSN 5920-01-038-7388


Cross Reference | NSN 5920-01-038-7388

Part Number Cage Code Manufacturer
TT91402 82389 SWITCHCRAFT INC.

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5920-01-038-7388

Technical Data | NSN 5920-01-038-7388

Characteristic Specifications
FUSE ACCOMMODATION QUANTITY 4
CURRENT CARRYING RATING IN AMPS 30.0
VOLTAGE IN VOLTS 1000.0
FUSE TERMINAL TYPE ACCOMMODATED SCREW BASE
TERMINAL TYPE AND QUANTITY 8 SCREW
CONTACT MATERIAL COPPER
CONTACT SURFACE TREATMENT ANY ACCEPTABLE

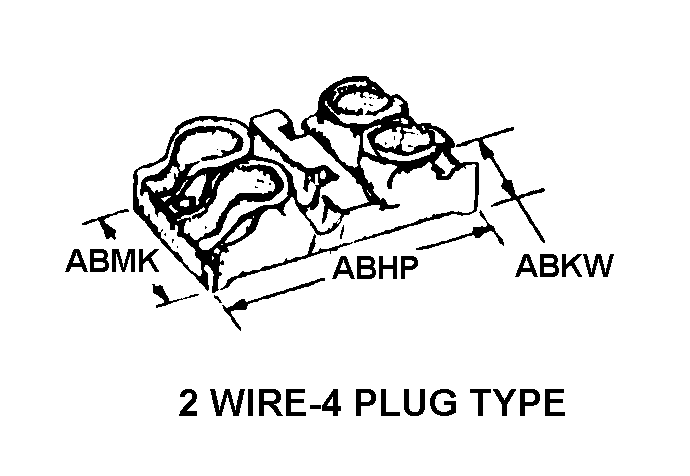

BODY STYLE E5 2 WIRE-4 PLUG TYPE
OVERALL LENGTH 6.000 INCHES NOMINAL
OVERALL HEIGHT 1.500 INCHES NOMINAL
OVERALL WIDTH 3.000 INCHES NOMINAL
MOUNTING HOLE STYLE F28 IN-LINE ALONG THE LENGTH
CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH 5.000 INCHES NOMINAL
MOUNTING HOLE QUANTITY 2
MOUNTING HOLE DIAMETER 0.156 INCHES NOMINAL
INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY 4 POLE, DOUBLE BRANCH, FUSED
III TERMINAL MATERIAL BRASS
III BODY MATERIAL CERAMIC
