NSN 5920-01-028-9309 S2261039P24, S226-1039P24, EU2500034
Product Details | CARTRIDGE FUSE
5920-01-028-9309 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: S2261039P24, S226-1039P24, EU2500034, EU-250-0034, F03B125V3A, F03B250V3A, MILF151603, MILF15160-3, MIL-PRF-15160/3, MILPRF151603, Q4A1059, MDF3, 16540868REVG, 1654086-8REVG, 2640912250, 264-0912-250, 3AGASB, 8140420002, 814042-0002, 9999-6406-1, 5920-01-028-9309, 01-028-9309, 5920010289309, 010289309, 999964061
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 OCT 1976 | 01-028-9309 | 00248 ( FUSE, CARTRIDGE ) |

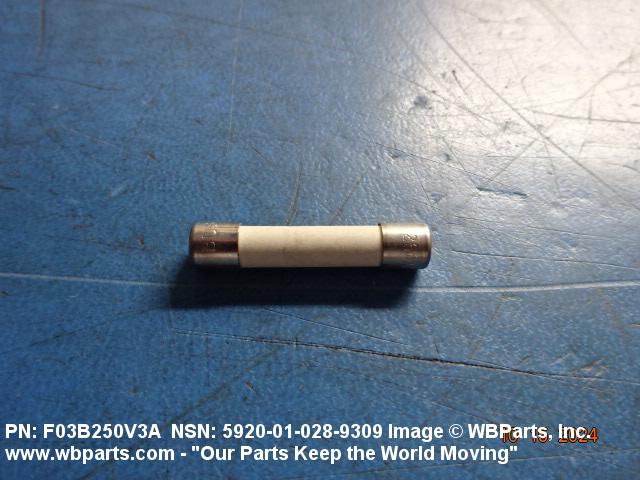

Drawings & Photos | NSN 5920-01-028-9309
Demand History | NSN 5920-01-028-9309
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-01-028-9309 | 2024-09-264 | 12 | United States |
| F03B250V3A | 2024-09-255 | 12 | United States |
| 5920-01-028-9309 | 2024-07-213 | 340 | DIBBS |
| 5920-01-028-9309 | 2024-03-64 | 185 | DIBBS |
| 5920-01-028-9309 | 2023-11-328 | 1044 | DIBBS |
| 5920-01-028-9309 | 2023-11-317 | 1044 | DIBBS |
| 5920-01-028-9309 | 2023-02-47 | 10 | CA |
| F03B250V3A | 2022-08-237 | 6 | United States |
| 5920-01-028-9309 | 2018-11-324 | 2530 | DIBBS |
| 5920-01-028-9309 | 2018-11-312 | 2530 | DIBBS |
| F03B250V3A | 2018-08-221 | 23 | United States |
| MDF3 | 2012-10-276 | 10 | HK |
| 5920-01-028-9309 | 2012-08-237 | 1151 | DIBBS |
| 5920-01-028-9309 | 2011-11-307 | 2739 | DIBBS |
| 5920-01-028-9309 | 2011-09-262 | 1989 | DIBBS |
| 5920-01-028-9309 | 2011-01-31 | 2400 | DIBBS |
| 5920-01-028-9309 | 2010-04-112 | 20 | United States |
| 5920-01-028-9309 | 2007-09-269 | 3380 | DIBBS |
Cross Reference | NSN 5920-01-028-9309
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1654086-8REVG | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 264-0912-250 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 3AGASB | 75915 | LITTELFUSE, INC. |
| 814042-0002 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 9999-6406-1 | 14195 | INRANGE TECHNOLOGIES CORPORATION DBA MCDATA SERVICES CORPORATION |
| EU-250-0034 | 03857 | ARMATURE COIL EQUIPMENT, INC DBA ACE EQUIPMENT COMPANY |
| F03B125V3A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| F03B250V3A | 71400 | COOPER BUSSMANN INC |
| F03B250V3A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MDF3 | 71400 | COOPER BUSSMANN INC |
| MIL-PRF-15160/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILF15160-3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| Q4A1059 | 0BJ81 | QUARTET OVONICS A JOINT VENTURE |
| S226-1039P24 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-01-028-9309
Related Products | NSN 5920-01-028-9309
Technical Data | NSN 5920-01-028-9309
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A TUBE TYPE |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL DIAMETER | 0.250 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 3.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 250.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | TIME DELAY |
| CIRCUIT OVER-CURRENT INTERRUPTION DELAY TIME IN SECONDS | 12.0 200 PCT OF CURRENT RATING |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 35.0 |
| TERMINAL SURFACE TREATMENT | NICKEL |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81349-MIL-F-15160 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-15160/3 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | CERAMIC OR PLASTIC |
| III TERMINAL MATERIAL | BRASS OR COPPER OR COPPER ALLOY |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | F03B250V3A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-15160/3 |
Restrictions/Controls & Freight Information | NSN 5920-01-028-9309
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062060 | FUSES NOI IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-01-028-9309
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
