Product Details | BLOCK FUSEHOLDER

5920-01-024-4143 A fuseholder in which the fuseholder stud and/or clips and insulation are mounted on a flat base. Excludes FUSEHOLDER, RECEPTACLE.

Part Alternates: 1002A6, 70065, 5920-01-024-4143, 01-024-4143, 5920010244143, 010244143

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG) NSN Assign. NIIN
59 11 JUL 1976 01-024-4143

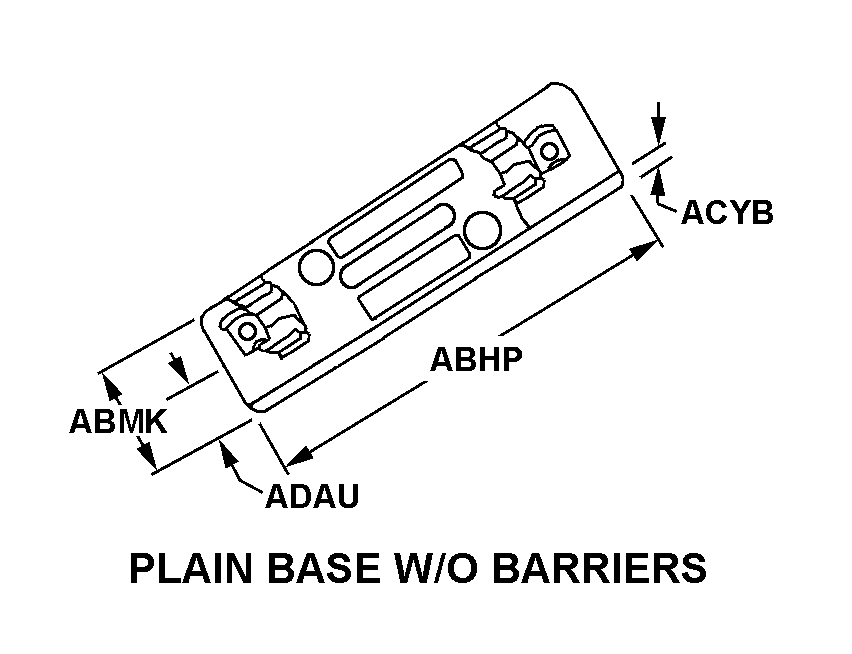

Drawings & Photos | NSN 5920-01-024-4143


Cross Reference | NSN 5920-01-024-4143

Part Number Cage Code Manufacturer
1002A6 04984 CELTECH CORPORATION DBA SPACE DIVISION
70065 19328 DEL CITY WIRE CO INC POBOX 3241 MILWAUKEE WI 532013241

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5920-01-024-4143

Technical Data | NSN 5920-01-024-4143

Characteristic Specifications
FUSE ACCOMMODATION QUANTITY 6
CURRENT CARRYING RATING IN AMPS 20.0
VOLTAGE IN VOLTS 250.0
FUSE TERMINAL TYPE ACCOMMODATED FERRULE
TERMINAL TYPE AND QUANTITY 12 SCREW
CONTACT MATERIAL BERYLLIUM COPPER
CONTACT SURFACE TREATMENT SILVER PLATED
BODY STYLE C19 PLAIN BASE W/O BARRIERS
OVERALL LENGTH 5.688 INCHES NOMINAL
OVERALL WIDTH 3.000 INCHES NOMINAL
BASE THICKNESS 0.344 INCHES NOMINAL
BODY HEIGHT ANY ACCEPTABLE
MOUNTING HOLE STYLE F28 IN-LINE ALONG THE LENGTH
CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH 4.500 INCHES NOMINAL
MOUNTING HOLE QUANTITY 6
MOUNTING HOLE DIAMETER 0.156 INCHES NOMINAL
ACCOMMODATED FUSE LENGTH 1.250 INCHES NOMINAL
ACCOMMODATED FERRULE DIAMETER 0.250 INCHES NOMINAL
INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY 6 POLE, MAINLINE, FUSED
III BODY MATERIAL PLASTIC, PHENOL-FORMALDEHYDE
III PRECIOUS MATERIAL SILVER
III PRECIOUS MATERIAL AND LOCATION CONTACT SURFACE SILVER
