NSN 5920-01-021-5194 01-021-5194, 010215194
Product Details | EXTRACTOR POST FUSEHOLDER
5920-01-021-5194 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: 5920-01-021-5194, 01-021-5194, 5920010215194, 010215194
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01-021-5194 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
Cross Reference | NSN 5920-01-021-5194
Part Number | Cage Code | Manufacturer |
---|---|---|
70EA1C4FAJ1L14-5 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
70HB11J3 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
A509517-2 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
A509517-2 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
FHL49U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
MIL-PRF-19207/33 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
MILF19207-33 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5920-01-021-5194
Related Products | NSN 5920-01-021-5194
Technical Data | NSN 5920-01-021-5194
Characteristic | Specifications |
---|---|
FUSE ACCOMMODATION QUANTITY | 1 |
CURRENT CARRYING RATING IN AMPS | 30.0 |
VOLTAGE IN VOLTS | 125.0 |
FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
CONTACT MATERIAL | ANY ACCEPTABLE |
CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |

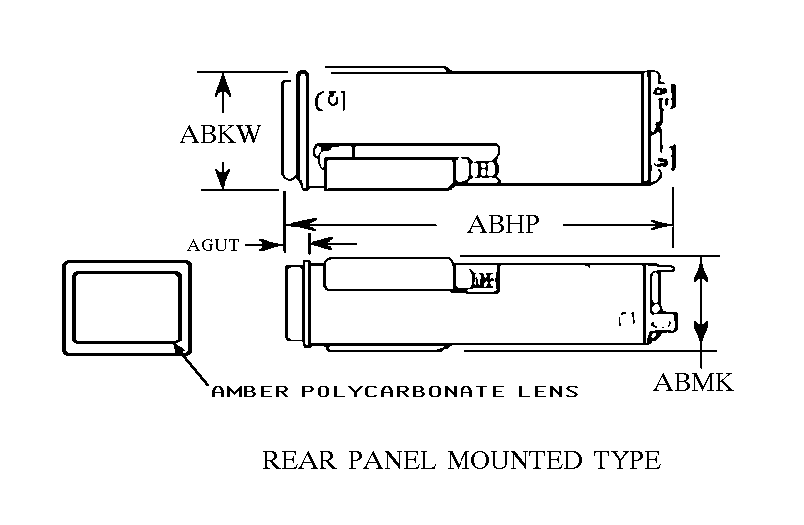

BODY STYLE | D21 REAR PANEL MOUNTED TYPE |
