Product Details | INCLOSED LINK FUSE

5920-01-019-8880 A fuse in which the element is inclosed in a body of other than cylindrical shape. It may include visual indication that the fusible element is severed. For cylindrical items, see FUSE, CARTRIDGE. Excludes FUSE, OPEN LINK; and FUSE LINK, ELECTRICAL.

Part Alternates: A012130, A012-130, P450, 5920-01-019-8880, 01-019-8880, 5920010198880, 010198880

Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors

Supply Group (FSG) NSN Assign. NIIN
59 20 APR 1976 01-019-8880

Drawings & Photos | NSN 5920-01-019-8880


Cross Reference | NSN 5920-01-019-8880

Part Number Cage Code Manufacturer
A012-130 51984 NEC AMERICA INC
P450 51984 NEC AMERICA INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5920-01-019-8880

Technical Data | NSN 5920-01-019-8880

Characteristic Specifications

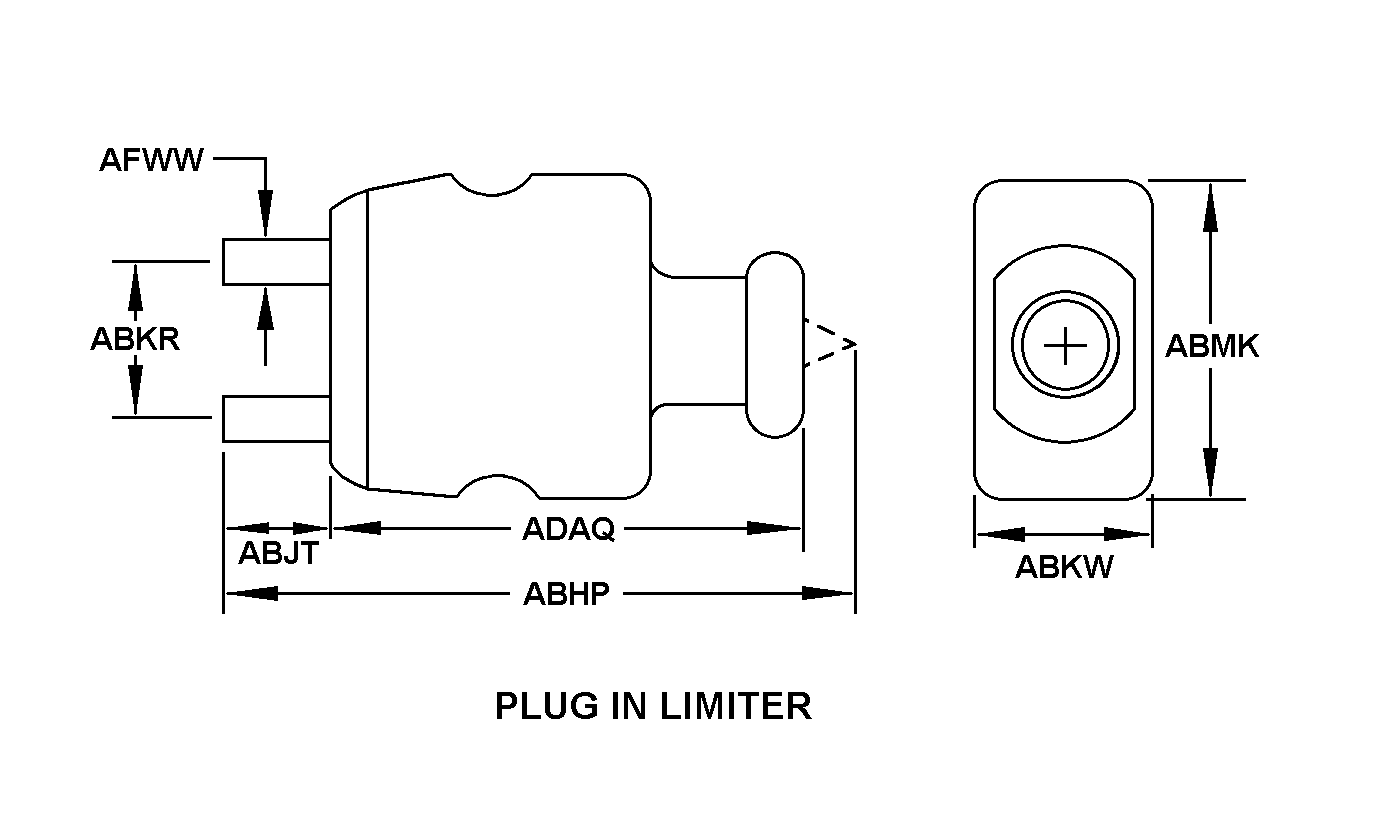

BODY STYLE 7B PLUG IN LIMITER
OVERALL LENGTH 35.0 MILLIMETERS NOMINAL
TERMINAL LENGTH 12.0 MILLIMETERS NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH 22.0 MILLIMETERS NOMINAL
OVERALL HEIGHT 10.0 MILLIMETERS NOMINAL
OVERALL WIDTH 32.0 MILLIMETERS NOMINAL
BODY LENGTH 23.0 MILLIMETERS NOMINAL
TERMINAL WIDTH 6.8 MILLIMETERS NOMINAL
CONTINUOUS CURRENT RATING IN AMPS 5.000
MAXIMUM VOLTAGE RATING IN VOLTS 220.0 AC AND 250.0 DC
CIRCUIT OVER-CURRENT INTERRUPTION TYPE NORMAL INSTANTANEOUS
INTERRUPTION INDICATOR METHOD VISIBLE ELEMENT
SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS 2500.0
III CASE MATERIAL PLASTIC, PHENOLIC RESIN, PAPER BASE
III TERMINAL MATERIAL PHOSPHOR BRONZE
