NSN 5920-00-967-1396 A6Y100TYPE4, 00-967-1396, 009671396
Product Details | CARTRIDGE FUSE
5920-00-967-1396 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: A6Y100TYPE4, 5920-00-967-1396, 00-967-1396, 5920009671396, 009671396
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-967-1396 | 00248 ( FUSE, CARTRIDGE ) |

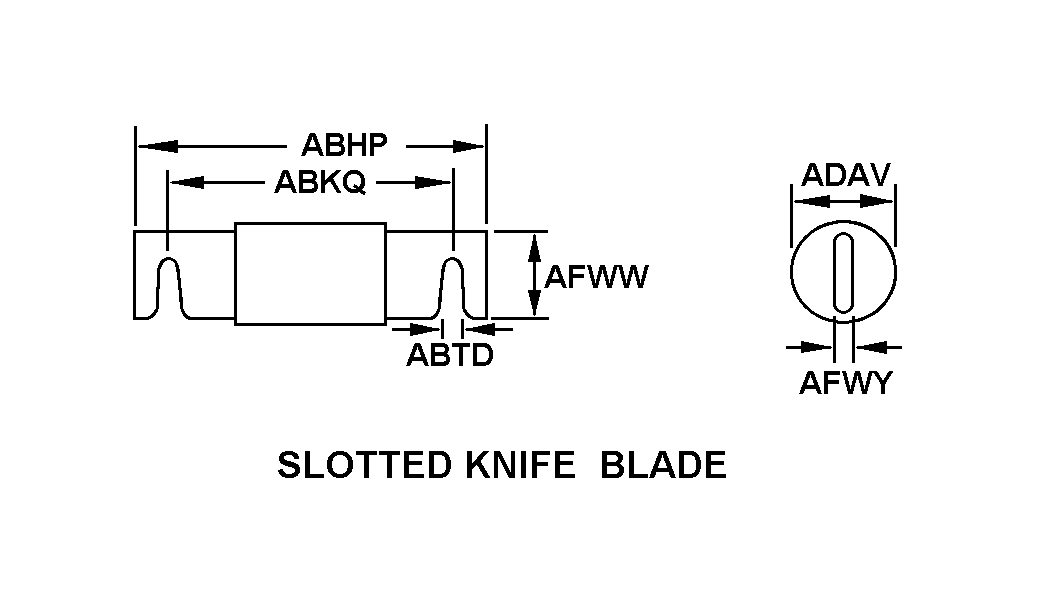

Drawings & Photos | NSN 5920-00-967-1396
Cross Reference | NSN 5920-00-967-1396
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A6Y100TYPE4 | 71424 | FERRAZ SHAWMUT INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-967-1396
Technical Data | NSN 5920-00-967-1396
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 16A SLOTTED KNIFE BLADE |
| OVERALL LENGTH | 7.875 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 6.875 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.203 INCHES NOMINAL |
| OVERALL DIAMETER | 1.062 INCHES NOMINAL |
| TERMINAL WIDTH | 0.719 INCHES NOMINAL |
| TERMINAL THICKNESS | 0.125 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 100.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 600.0 AC AND 600.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 2000000.0 |
| TERMINAL SURFACE TREATMENT | SILVER PLATED |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| III CASE MATERIAL | FIBER |
Restrictions/Controls & Freight Information | NSN 5920-00-967-1396
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
