Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-964-4384 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: MS254741, MS25474-1, FH8510, FHN28W8, FHN28WB, FHN28WD, L00391, MIL-PRF-19207/17, MILPRF1920717, 1667AS2591, 1667AS259-1, 22300A, 22-300A, 6103619, 610361-9, 928D116PC9 , 5920-00-964-4384, 00-964-4384, 5920009644384, 009644384
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 JUN 1966 | 00-964-4384 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |

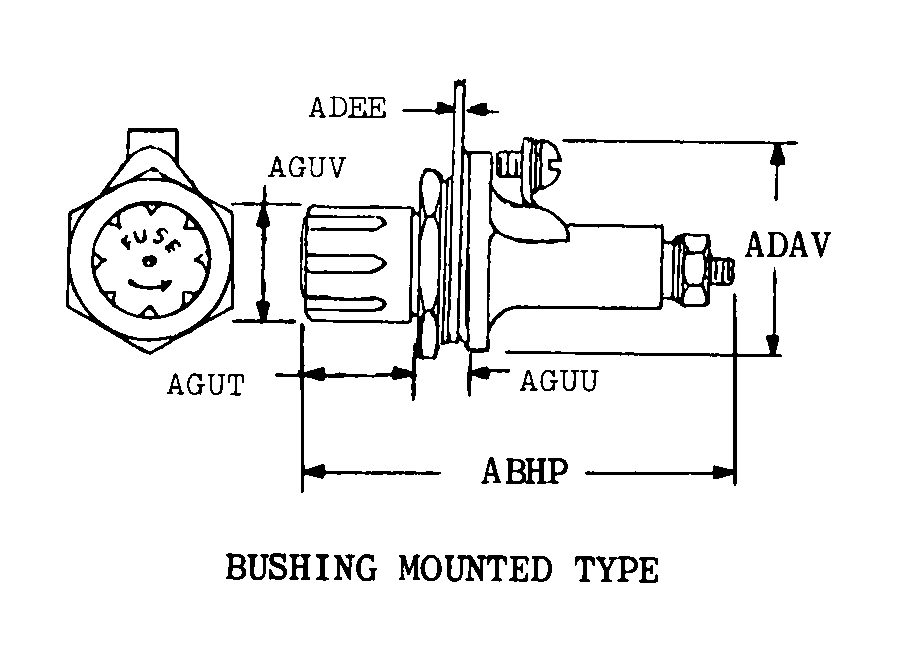

Drawings & Photos | NSN 5920-00-964-4384
Demand History | NSN 5920-00-964-4384
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-964-4384 | 2023-09-268 | 12 | US |
| FHN28WB | 2020-01-27 | 4 | United States |
| 5920-00-964-4384 | 2018-10-292 | 10 | US |
| 5920-00-964-4384 | 2016-04-119 | 1545 | DIBBS |
| 5920-00-964-4384 | 2015-12-344 | 1159 | DIBBS |
| 5920-00-964-4384 | 2015-07-186 | 150 | DIBBS |
| 5920-00-964-4384 | 2014-12-353 | 110 | DIBBS |
| 5920-00-964-4384 | 2012-05-142 | 135 | DIBBS |
Cross Reference | NSN 5920-00-964-4384
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1667AS259-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 22-300A | 84613 | FIC CORPORATION |
| 610361-9 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 928D116PC9 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| FH8510 | 64133 | ANDERSON MACHINE MANUFACTURING CO., INC. |
| FHN28W8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FHN28WB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FHN28WB | 84613 | FIC CORPORATION |
| FHN28WD | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| L00391 | 16236 | DLA LAND AND MARITIME |
| MIL-PRF-19207/17 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25474-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-964-4384
Related Products | NSN 5920-00-964-4384
Technical Data | NSN 5920-00-964-4384
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 1 THREADED STUD AND 1 SCREW |
| SCREW THREAD DIAMETER | 0.138 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | SILVER PLATED, QQ-S-365 |
| BODY STYLE | D16 BUSHING MOUNTED TYPE |
| OVERALL LENGTH | 2.350 INCHES MINIMUM AND 2.390 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.240 INCHES MAXIMUM |
| PANEL THICKNESS | 0.125 INCHES MAXIMUM |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 0.540 INCHES MINIMUM AND 0.580 INCHES MAXIMUM |
| BUSHING THREAD LENGTH | 0.175 INCHES MAXIMUM |
| CAP DIAMETER | 0.600 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| MOUNTING HOLE STYLE | F17 BUSHING MOUNTING |
| BUSHING HOLE DIAMETER | 0.625 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| FLATTED SIDE BUSHING HOLE LENGTH | 0.590 INCHES MINIMUM AND 0.595 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 1 |
| BUSHING DIAMETER | 0.625 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 1.250 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.250 INCHES NOMINAL |
| ENVIRONMENTAL PROTECTION | WATERTIGHT AND BODY SEALED |
| TEST DATA DOCUMENT | 81349-MIL-F-19207 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-19207/17 GOVERNMENT SPECIFICATION |
| III BODY MATERIAL | PLASTIC, MIL-P-14, TYPE MAI-60 |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FHN28WB |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-19207/17 |
