NSN 5920-00-961-3618 NCL15, 00-961-3618, 009613618
Product Details | CARTRIDGE FUSE
5920-00-961-3618 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: NCL15, 5920-00-961-3618, 00-961-3618, 5920009613618, 009613618
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-961-3618 | 00248 ( FUSE, CARTRIDGE ) |

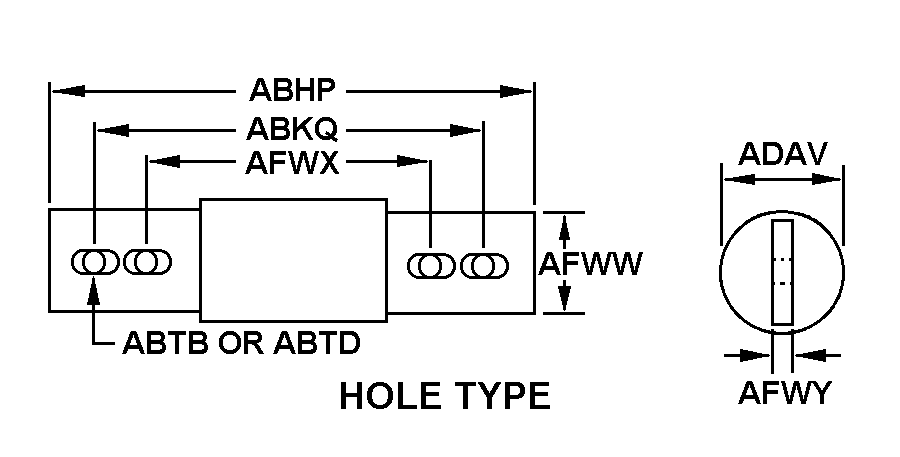

Drawings & Photos | NSN 5920-00-961-3618
Cross Reference | NSN 5920-00-961-3618
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NCL15 | 72076 | FEDERAL PACIFIC ELECTRIC CO ECONOMY FUSE DIV |
