NSN 5920-00-948-5765 FAL15G001, FAL15G-001, FHL15G
Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-948-5765 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: FAL15G001, FAL15G-001, FHL15G, FHL15G001, FHL15G-001, MILF192076, MILF19207-6, MIL-PRF-19207/6, MILPRF192076, 5920-00-948-5765, 00-948-5765, 5920009485765, 009485765
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 APR 1966 | 00-948-5765 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
Drawings & Photos | NSN 5920-00-948-5765
Demand History | NSN 5920-00-948-5765
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-948-5765 | 2024-07-197 | 14 | DIBBS |
| 5920-00-948-5765 | 2024-07-186 | 14 | DIBBS |
| 5920-00-948-5765 | 2024-05-126 | 5 | DIBBS |
| 5920-00-948-5765 | 2023-08-215 | 13 | DIBBS |
| 5920-00-948-5765 | 2023-07-200 | 13 | DIBBS |
| 5920-00-948-5765 | 2023-05-145 | 3 | DIBBS |
| 5920-00-948-5765 | 2023-03-60 | 2 | DIBBS |
| 5920-00-948-5765 | 2023-02-47 | 10 | DIBBS |
| 5920-00-948-5765 | 2019-07-198 | 13 | DIBBS |
| 5920-00-948-5765 | 2019-04-118 | 9 | DIBBS |
| 5920-00-948-5765 | 2019-01-06 | 7 | DIBBS |
| 5920-00-948-5765 | 2018-12-344 | 1 | DIBBS |
| 5920-00-948-5765 | 2016-06-153 | 15 | DIBBS |
| 5920-00-948-5765 | 2012-04-95 | 15 | DIBBS |
| 5920-00-948-5765 | 2012-03-61 | 4 | DIBBS |
| 5920-00-948-5765 | 2011-10-301 | 9 | DIBBS |
| 5920-00-948-5765 | 2011-10-292 | 5 | DIBBS |
| 5920-00-948-5765 | 2010-12-335 | 12 | DIBBS |
| 5920-00-948-5765 | 2010-10-294 | 3 | DIBBS |
| 5920-00-948-5765 | 2010-07-194 | 5 | DIBBS |
| 5920-00-948-5765 | 2008-01-31 | 7 | DIBBS |
Cross Reference | NSN 5920-00-948-5765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FAL15G-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FHL15G | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FHL15G-001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-19207/6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILF19207-6 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-948-5765
Related Products | NSN 5920-00-948-5765
Technical Data | NSN 5920-00-948-5765
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 1000.0 |
| VOLTAGE IN VOLTS | 500.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | KNIFE BLADE |
| TERMINAL TYPE AND QUANTITY | 2 THREADED STUD |
| SCREW THREAD DIAMETER | 0.312 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 18.0 |
| CONTACT MATERIAL | ANY ACCEPTABLE |
| CONTACT SURFACE TREATMENT | SILVER PLATED, QQ-S-365 |

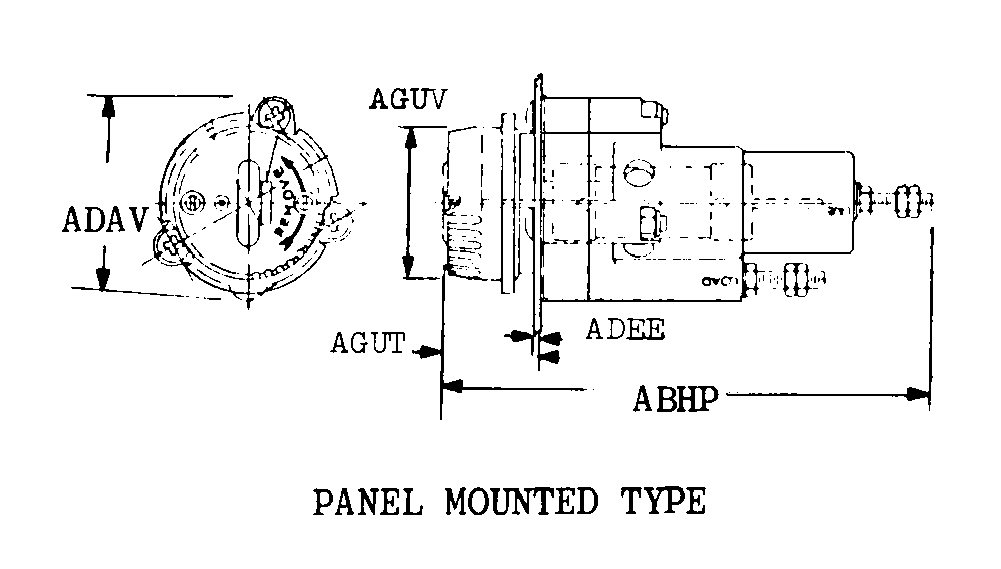

| BODY STYLE | D3 PANEL MOUNTED TYPE |
| OVERALL LENGTH | 8.990 INCHES MINIMUM AND 9.010 INCHES MAXIMUM |
| OVERALL DIAMETER | 2.980 INCHES MINIMUM AND 3.020 INCHES MAXIMUM |
| PANEL THICKNESS | 0.250 INCHES MAXIMUM |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 1.870 INCHES MINIMUM AND 1.880 INCHES MAXIMUM |
| CAP DIAMETER | 2.480 INCHES MINIMUM AND 2.520 INCHES MAXIMUM |

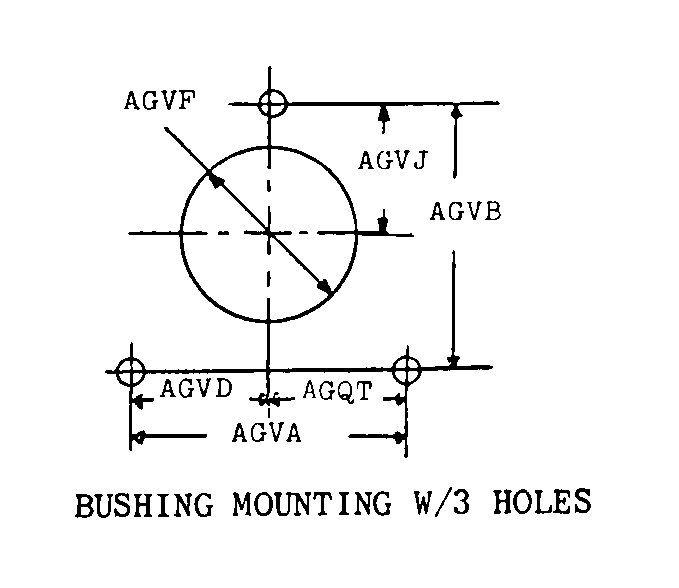

| MOUNTING HOLE STYLE | F16 BUSHING MOUNTING W/3 HOLES |
| SHORTEST CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.964 INCHES MINIMUM AND 0.974 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.928 INCHES MINIMUM AND 1.948 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 2.350 INCHES MINIMUM AND 2.400 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN INSIDE MOUNTING HOLES ALONG LENGTH | 0.964 INCHES MINIMUM AND 0.974 INCHES MAXIMUM |
| BUSHING HOLE DIAMETER | 2.182 INCHES MINIMUM AND 2.192 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN BUSHING HOLE AND MOUNTING HOLE | 1.370 INCHES MINIMUM AND 1.380 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 3 |
| MOUNTING HOLE DIAMETER | 0.279 INCHES MINIMUM AND 0.283 INCHES MAXIMUM |
| ACCOMMODATED FUSE LENGTH | 1.000 INCHES MINIMUM |
| ACCOMMODATED FUSE WIDTH | 0.715 INCHES MINIMUM AND 0.785 INCHES MAXIMUM |
| ACCOMMODATED FUSE THICKNESS | 0.122 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| INTERRUPTION INDICATOR METHOD | NEON LAMP |
| RESISTOR RATING | 160.0 KILOHMS AND 160.0 KILOHMS |
| INDICATING LAMP VOLTAGE RANGE IN VOLTS | 90.0 TO 500.0 AND 90.0 TO 500.0 |
| ENVIRONMENTAL PROTECTION | DRIPPROOF |
| TEST DATA DOCUMENT | 81349-MIL-F-19207 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-19207/6 GOVERNMENT SPECIFICATION |
| III BODY MATERIAL | PLASTIC, POLYESTER, MIL-M-14, TYPE MAI-60 |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND | CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5920-00-948-5765
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
