Product Details | CARTRIDGE FUSE
5920-00-938-7660 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: M13726, M137-26, M234192018, M23419-2-018, MILF234192, MILF23419-2, MIL-PRF-23419/2, MILPRF234192, FM02125V2A, FM02-125V-2A, FM022A, FM02A125V2A, FM02A125V-2A, 351-052-018, 46623, 67A30A850, 724002, 5920-00-938-7660, 00-938-7660, 5920009387660, 351052018, 009387660
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23 MAR 1967 | 00-938-7660 | 00248 ( FUSE, CARTRIDGE ) |

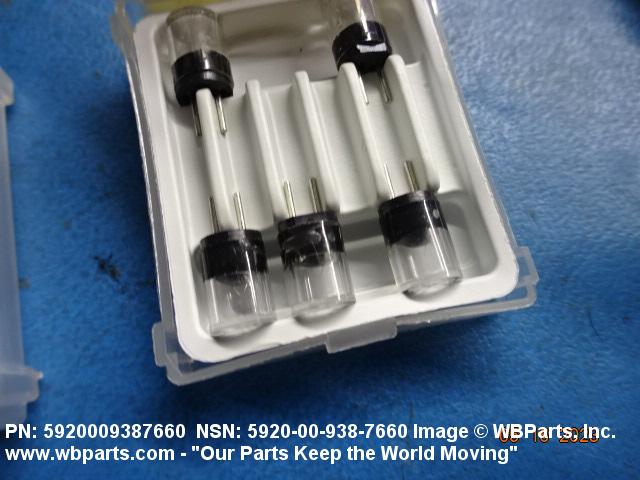

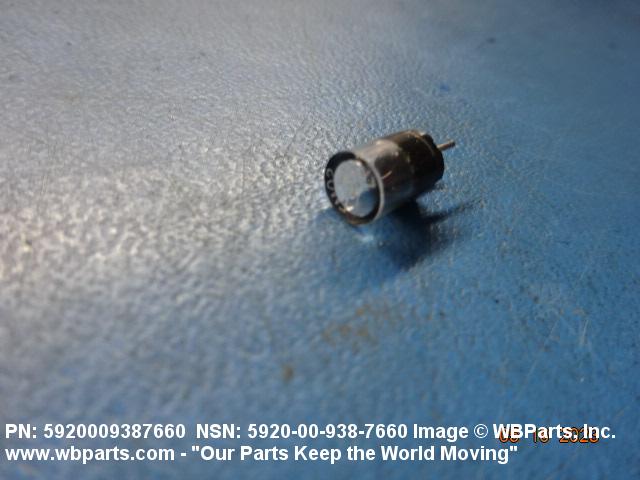

Drawings & Photos | NSN 5920-00-938-7660
Demand History | NSN 5920-00-938-7660
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-938-7660 | 2024-08-214 | 53 | United States |
| 5920-00-938-7660 | 2024-08-214 | 53 | United States |
| 5920-00-938-7660 | 2023-05-124 | 18 | Taiwan |
| 5920-00-938-7660 | 2023-05-122 | 28 | Taiwan |
| 5920-00-938-7660 | 2019-10-283 | 18 | DIBBS |
| 5920-00-938-7660 | 2019-05-140 | 4726 | DIBBS |
| 5920-00-938-7660 | 2019-05-129 | 4726 | DIBBS |
| 5920-00-938-7660 | 2017-02-53 | 72 | MANUAL |
| 5920-00-938-7660 | 2015-07-186 | 4466 | DIBBS |
| 5920-00-938-7660 | 2012-11-334 | 2806 | DIBBS |
| 5920-00-938-7660 | 2010-06-161 | 2806 | DIBBS |
| 5920-00-938-7660 | 2009-12-342 | 2996 | DIBBS |
| FM022A | 2007-09-247 | 1 | US |
| 5920-00-938-7660 | 2007-07-205 | 2708 | DIBBS |
| 5920-00-938-7660 | 2007-06-159 | 1976 | DIBBS |
| 5920-00-938-7660 | 2007-04-120 | 2000 | DIBBS |
| 5920-00-938-7660 | 2007-04-99 | 1528 | DIBBS |
| FM02A125V2A | 2006-05-123 | 22 | US |
Cross Reference | NSN 5920-00-938-7660
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 351-052-018 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 46623 | 04034 | GEMS SENSORS INC. |
| 67A30A850 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 724002 | 75915 | LITTELFUSE, INC. |
| FM02+2A | 75915 | LITTELFUSE, INC. |
| FM02-125V-2A | 09922 | SOURIAU USA, INC. |
| FM02-125V-2A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FM02A125V-2A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M137-26 | 54418 | MILTOPE CORPORATION |
| M23419-2-018 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-23419/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILF23419-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-938-7660
Related Products | NSN 5920-00-938-7660
Technical Data | NSN 5920-00-938-7660
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 30A PLUG-IN TYPE |
| OVERALL LENGTH | 0.498 INCHES MINIMUM AND 0.538 INCHES MAXIMUM |
| TERMINAL LENGTH | 0.160 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |
| BODY LENGTH | 0.338 INCHES MINIMUM AND 0.358 INCHES MAXIMUM |

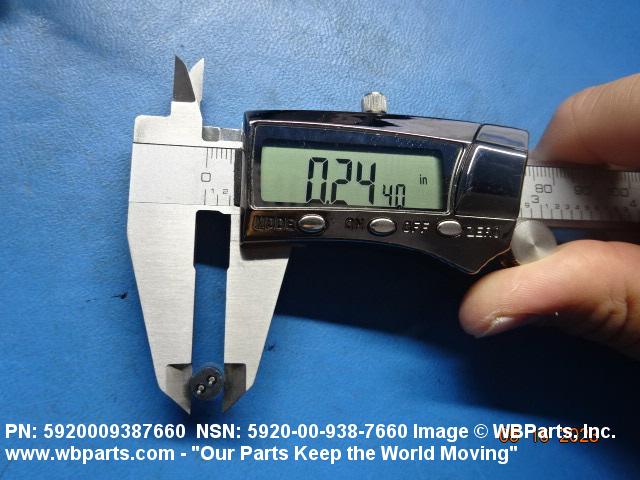

| OVERALL DIAMETER | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |

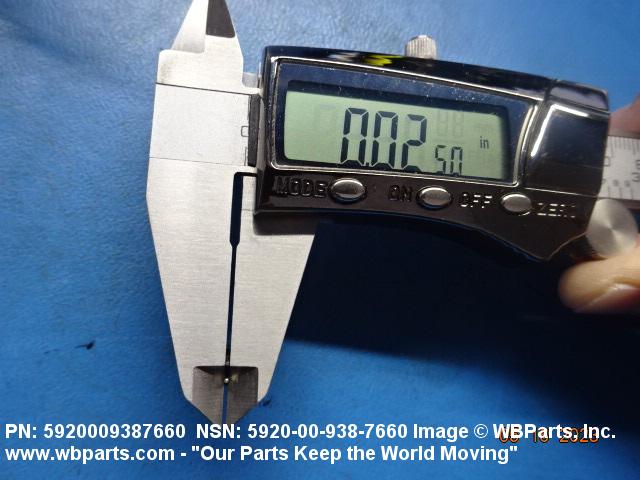

| TERMINAL DIAMETER | 0.024 INCHES MINIMUM AND 0.026 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 0.100 INCHES MINIMUM AND 0.108 INCHES MAXIMUM |
| CONTINUOUS CURRENT RATING IN AMPS | 2.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC AND 125.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 10000.0 |
| TERMINAL SURFACE TREATMENT | NICKEL |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81349-MIL-F-23419 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-23419/2 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | PLASTIC |
| III TERMINAL MATERIAL | COPPER |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FM02A125V-2A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-23419/2 |
