NSN 5920-00-931-0593 M234192020, M23419-2-020, ASC1559795

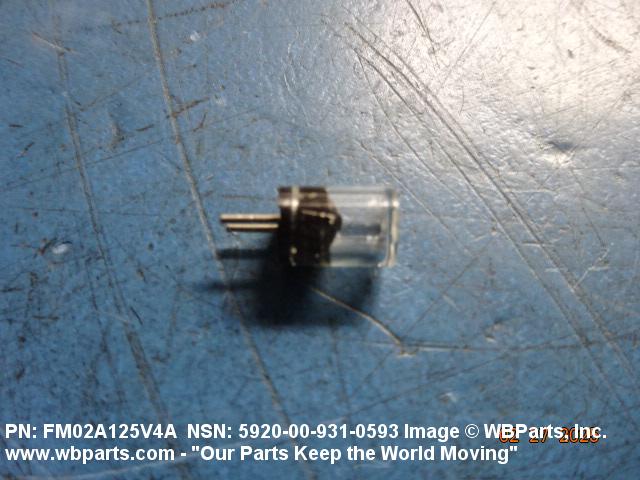

Product Details | CARTRIDGE FUSE
5920-00-931-0593 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: M234192020, M23419-2-020, ASC1559795, FM02125V4A, FM02-125V4A, FM02A1125V4A, FM02A125V4A, MILF234192, MILF23419-2, MIL-PRF-23419/2, MILPRF234192, 41861520, 418615-20, 5920-00-931-0593, 00-931-0593, 5920009310593, 009310593
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 SEP 1966 | 00-931-0593 | 00248 ( FUSE, CARTRIDGE ) |
Drawings & Photos | NSN 5920-00-931-0593
Cross Reference | NSN 5920-00-931-0593
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 418615-20 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| ASC1559795 | Z4779 | ASC PTY LTD |
| FM02-125V4A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FM02A1125V4A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FM02A125V4A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M23419-2-020 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-PRF-23419/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILF23419-2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-931-0593
Related Products | NSN 5920-00-931-0593
Technical Data | NSN 5920-00-931-0593
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 30A PLUG-IN TYPE |
| OVERALL LENGTH | 0.518 INCHES NOMINAL |
| TERMINAL LENGTH | 0.170 INCHES NOMINAL |
| BODY LENGTH | 0.348 INCHES NOMINAL |
| OVERALL DIAMETER | 0.250 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.025 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 0.100 INCHES MINIMUM AND 0.108 INCHES MAXIMUM |
| CONTINUOUS CURRENT RATING IN AMPS | 4.000 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC AND 125.0 DC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | TIME DELAY |
| CIRCUIT OVER-CURRENT INTERRUPTION DELAY TIME IN SECONDS | 10.0 200 PCT OF CURRENT RATING |
| INTERRUPTION INDICATOR METHOD | VISIBLE ELEMENT |
| SHORT-CIRCUIT/INTERRUPT CURRENT RATING IN AMPS | 300.0 |
| TERMINAL SURFACE TREATMENT | NICKEL |
| FEATURES PROVIDED | NONRENEWABLE FUSIBLE ELEMENT |
| TEST DATA DOCUMENT | 81349-MIL-F-23419 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-23419/2 GOVERNMENT SPECIFICATION |
| III TERMINAL MATERIAL | COPPER |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FM02A125V4A |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-23419/2 |
