Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-904-0690 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: 2488130, 2488-130, 5920-00-904-0690, 00-904-0690, 5920009040690, 009040690
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-904-0690 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
Drawings & Photos | NSN 5920-00-904-0690
Cross Reference | NSN 5920-00-904-0690
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2488-130 | 74006 | RELIANCE COMM/TEC CORP LORAIN PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-904-0690
Related Products | NSN 5920-00-904-0690
Technical Data | NSN 5920-00-904-0690
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 10.0 |
| VOLTAGE IN VOLTS | 300.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 2 PIN |
| CONTACT MATERIAL | BRASS OR COPPER |
| CONTACT SURFACE TREATMENT | SOLDER DIP |
| BODY STYLE | D20 REAR PANEL MOUNTED TYPE |
| OVERALL LENGTH | 3.438 INCHES NOMINAL |
| OVERALL HEIGHT | 0.906 INCHES NOMINAL |
| OVERALL WIDTH | 0.969 INCHES NOMINAL |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 0.438 INCHES NOMINAL |

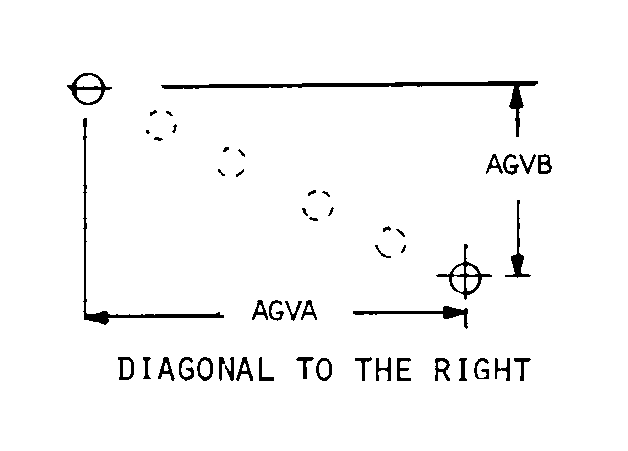

| MOUNTING HOLE STYLE | F26 DIAGONAL TO THE RIGHT |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 0.718 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.718 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.082 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 1.250 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.281 INCHES NOMINAL |
| INTERRUPTION INDICATOR METHOD | VISUAL INDICATING |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| III BODY MATERIAL | PLASTIC |
