NSN 5920-00-901-4731 M19207/1-004, M192071004, M192071TYFHL10V

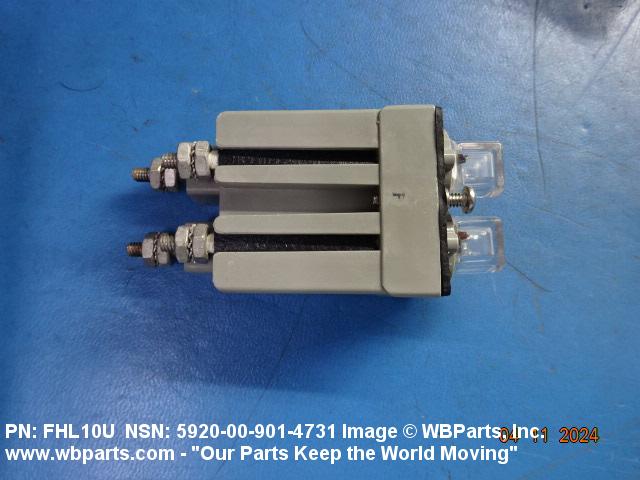

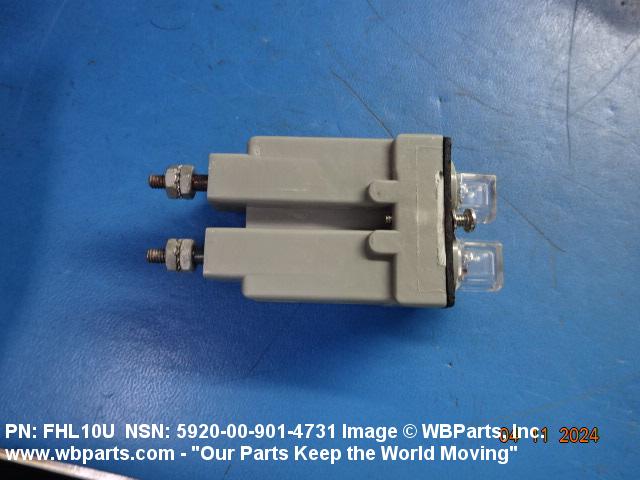

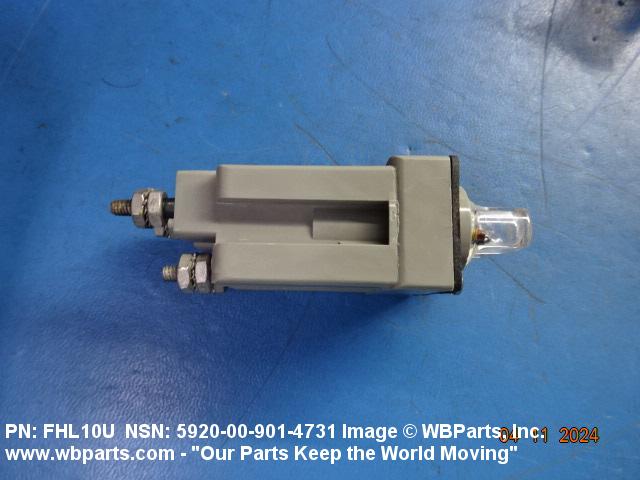

Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-901-4731 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: M19207/1-004, M192071004, M192071TYFHL10V, M19207-1TYFHL10V, H7610107010, H761-0107-010, H791400131, H791-4001-31, H83272015, H832-7201-5, HGA-C, S6505H3289232PIECE15, S6505H-3289232PIECE15, SKEE517 ITEM 11, SKEE517ITEM11, MIL-PRF-19207/1, MILPRF192071, PL1976923 IT. 8, PL1976923IT8, PL705646 PC 27, PL705646PC27, PM-53241-EB PIECE 14, PM53241EBPIECE14, PMFH13, PM-FH13, EE2050 ITEM 33, EE2050ITEM33, EHL100, F337721081, F3377-2108-1, FH1 10U, FH110U, FHL102, FHL10U, FHL10V, FHL1OU, FHLIOU, FLH10U, 694034-004, 70370692365, 703-7069236-5, 705164-124, 77800 ITEM 11, 77800ITEM11, 90005620274228, 9000-56202-74228, 9000S62027428, 9000-S6202-7428, HSA, 705164-122, HGAC, 10FH2, 14049001, 14049-001, 15482, 17366099, 1736609-9, 181-00-01-04, 23123981, 2312398-1, 23123991, 2312399-1, 2635-088-22 ITEM 1-24, 263508822ITEM124, 298117, 32057 PC NO 35, 32057PCNO35, 377-160-168, 4150142PC41, 4150-142PC41, 43767269038, 437-6726903-8, 43864044906, 438-6404490-6, 45594L1, 474153, 53431032P3, 5343-1032P3, 551-7610107-010, 556706827731, 556-7068277-31, 6174574, 617457-4, 63A0257, 5920-00-901-4731, 00-901-4731, 5920009014731, 5517610107010, 694034004, 009014731, 211023580, 181000104, 377160168, 705164124, 705164122
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 01 JAN 1960 | 00-901-4731 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
Demand History | NSN 5920-00-901-4731
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5920-00-901-4731 | 2024-04-107 | 952 | DIBBS |
5920-00-901-4731 | 2024-02-57 | 540 | DIBBS |
5920-00-901-4731 | 2024-01-03 | 12 | United States |
5920-00-901-4731 | 2023-08-222 | 617 | DIBBS |
5920-00-901-4731 | 2023-08-220 | 55 | DIBBS |
5920-00-901-4731 | 2023-07-198 | 445 | DIBBS |
5920-00-901-4731 | 2023-07-191 | 233 | DIBBS |
5920-00-901-4731 | 2023-05-131 | 31 | United States |
5920-00-901-4731 | 2023-05-128 | 219 | DIBBS |
5920-00-901-4731 | 2023-04-115 | 219 | DIBBS |
5920-00-901-4731 | 2023-03-73 | 10 | United States |
5920-00-901-4731 | 2022-11-332 | 154 | DIBBS |
5920-00-901-4731 | 2022-09-258 | 214 | DIBBS |
5920-00-901-4731 | 2022-05-129 | 252 | DIBBS |
5920-00-901-4731 | 2022-01-20 | 278 | DIBBS |
5920-00-901-4731 | 2022-01-09 | 278 | DIBBS |
5920-00-901-4731 | 2021-10-298 | 56 | DIBBS |
5920-00-901-4731 | 2021-06-159 | 528 | DIBBS |
5920-00-901-4731 | 2021-04-102 | 259 | DIBBS |
5920-00-901-4731 | 2021-04-95 | 13 | us |
5920-00-901-4731 | 2021-03-89 | 259 | DIBBS |
5920-00-901-4731 | 2021-03-64 | 149 | DIBBS |
5920-00-901-4731 | 2021-02-53 | 149 | DIBBS |
5920-00-901-4731 | 2020-08-219 | 5 | DIBBS |
5920-00-901-4731 | 2020-05-126 | 107 | DIBBS |
5920-00-901-4731 | 2020-04-114 | 113 | DIBBS |
5920-00-901-4731 | 2020-04-100 | 179 | DIBBS |
5920-00-901-4731 | 2019-06-178 | 114 | DIBBS |
5920-00-901-4731 | 2019-03-68 | 138 | DIBBS |
5920-00-901-4731 | 2019-01-13 | 82 | DIBBS |
FHL10U | 2018-10-283 | 60 | United States |
5920-00-901-4731 | 2018-10-282 | 130 | DIBBS |
5920-00-901-4731 | 2018-09-270 | 130 | DIBBS |
5920-00-901-4731 | 2018-05-149 | 216 | DIBBS |
5920-00-901-4731 | 2018-05-137 | 216 | DIBBS |
5920-00-901-4731 | 2017-10-288 | 123 | DIBBS |
5920-00-901-4731 | 2017-06-166 | 143 | DIBBS |
5920-00-901-4731 | 2016-01-06 | 135 | DIBBS |
5920-00-901-4731 | 2015-06-154 | 285 | DIBBS |
5920-00-901-4731 | 2015-04-109 | 219 | DIBBS |
5920-00-901-4731 | 2013-03-74 | 236 | DIBBS |
5920-00-901-4731 | 2012-11-334 | 273 | DIBBS |
5920-00-901-4731 | 2012-10-284 | 123 | DIBBS |
5920-00-901-4731 | 2012-07-208 | 90 | DIBBS |
5920-00-901-4731 | 2012-06-153 | 206 | DIBBS |
5920-00-901-4731 | 2012-04-114 | 152 | DIBBS |
FHL10U | 2011-01-26 | 30 | Taiwan |
5920-00-901-4731 | 2011-01-21 | 575 | DIBBS |
5920-00-901-4731 | 2010-09-272 | 379 | DIBBS |
FHL10U | 2008-10-289 | 24 | us |
EHL100 | 2008-08-239 | 3 | US |
5920-00-901-4731 | 2007-05-134 | 65 | DIBBS |
Cross Reference | NSN 5920-00-901-4731
Part Number | Cage Code | Manufacturer |
---|---|---|
10FH2 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
10FH2 | 89103 | PEARL HARBOR NAVAL SHIPYARD AND INTERMEDIATE MAINTENANCE FACILITY |
14049-001 | 12763 | DYNALEC CORPORATION |
15482 | 04034 | GEMS SENSORS INC. |
1736609-9 | 53711 | NAVAL SEA SYSTEMS COMMAND |
181-00-01-04 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
211023580 | 53711 | NAVAL SEA SYSTEMS COMMAND |
2312398-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
2312399-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
2635-088-22 ITEM 1-24 | 96169 | ELECTRIC BOAT CORPORATION |
298117 | 23905 | L-3 COMMUNICATIONS WESTWOOD CORPORATION |
32057 PC NO 35 | 39425 | MCNAB, INCORPORATED |
377-160-168 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
4150-142PC41 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
437-6726903-8 | 53711 | NAVAL SEA SYSTEMS COMMAND |
438-6404490-6 | 53711 | NAVAL SEA SYSTEMS COMMAND |
45594L1 | 95802 | AIR SYSTEM COMPONENTS, INC DBA TRION IAQ DIV |
474153 | 82328 | DRESSER RAND CO TERRY CORP STEAM TURBINE MOTOR AND |
5343-1032P3 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
551-7610107-010 | 53711 | NAVAL SEA SYSTEMS COMMAND |
556-7068277-31 | 53711 | NAVAL SEA SYSTEMS COMMAND |
617457-4 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
63A0257 | 52025 | SIEMENS ENERGY & AUTOMATION, INC. DIV SIEMENS ENERGY & AUTOMATION DBA |
694034-004 | 14100 | STROMBERG-CARLSON CORP A PLESSEY TELECOMMUNICATIONS CO |
703-7069236-5 | 53711 | NAVAL SEA SYSTEMS COMMAND |
705164-122 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
705164-124 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
77800 ITEM 11 | 04034 | GEMS SENSORS INC. |
9000-56202-74228 | 28199 | L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL |
9000-S6202-7428 | 71400 | COOPER BUSSMANN INC |
EE2050 ITEM 33 | 01417 | GENERAL DYNAMICS LAND SYSTEMS INC. DBA GENERAL DYNAMICS LAND SYSTEMS |
EE2050 ITEM 33 | 24290 | DRS TEST & ENERGY MANAGEMENT, LLC |
EHL100 | 51435 | EMS DEVELOPMENT CORPORATION |
F3377-2108-1 | 57230 | GOULD INC SIMULATION SYSTEMS DIV |
FH1 10U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
FHL102 | 71400 | COOPER BUSSMANN INC |
FHL10U | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
FHL10U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
FHL10V | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
FHL1OU | 71400 | COOPER BUSSMANN INC |
FHLIOU | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
FLH10U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
FLH10U | 84613 | FIC CORPORATION |
H761-0107-010 | 96169 | ELECTRIC BOAT CORPORATION |
H791-4001-31 | 96169 | ELECTRIC BOAT CORPORATION |
H832-7201-5 | 96169 | ELECTRIC BOAT CORPORATION |
HGA-C | 71400 | COOPER BUSSMANN INC |
HSA | 71400 | COOPER BUSSMANN INC |
M19207-1TYFHL10V | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
M19207/1-004 | 072E5 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
M19207/1-004 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
MIL-PRF-19207/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
PL1976923 IT. 8 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
PL705646 PC 27 | 58475 | WESTWOOD CORPORATION DBA NMP DIVISION |
PM-53241-EB PIECE 14 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
PM-FH13 | 00062 | MARINE ELECTRIC SYSTEMS, INC. DBA MESYS |
S6505H-3289232PIECE15 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
SKEE517 ITEM 11 | 24290 | DRS TEST & ENERGY MANAGEMENT, LLC |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5920-00-901-4731
Technical Data | NSN 5920-00-901-4731
Characteristic | Specifications |
---|---|
FUSE ACCOMMODATION QUANTITY | 2 |
CURRENT CARRYING RATING IN AMPS | 30.0 |
VOLTAGE IN VOLTS | 250.0 |
FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |

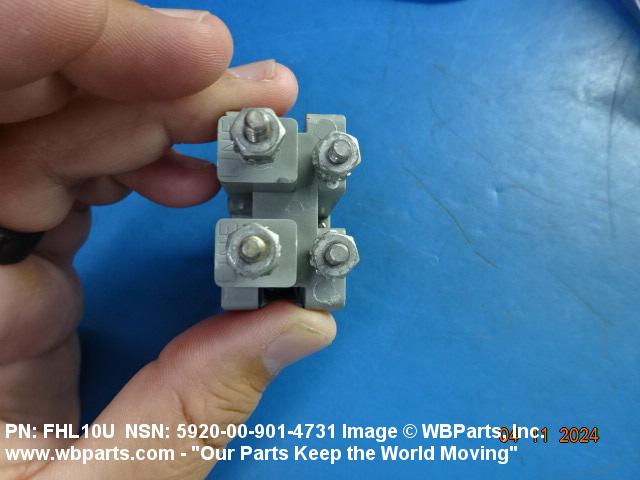

TERMINAL TYPE AND QUANTITY | 4 THREADED STUD |
SCREW THREAD DIAMETER | 0.164 INCHES NOMINAL |
SCREW THREAD QUANTITY PER INCH | 32.0 |
CONTACT MATERIAL | ANY ACCEPTABLE |
CONTACT SURFACE TREATMENT | SILVER PLATED, QQ-S-365 |
BODY STYLE | D4 PANEL MOUNTED TYPE |

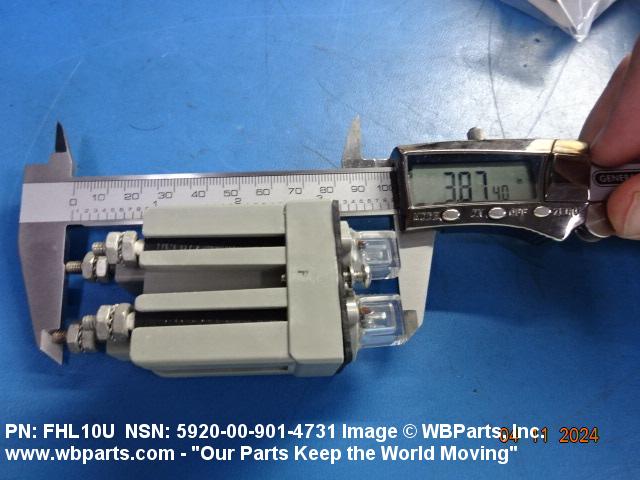

OVERALL LENGTH | 3.750 INCHES MINIMUM AND 4.000 INCHES MAXIMUM |

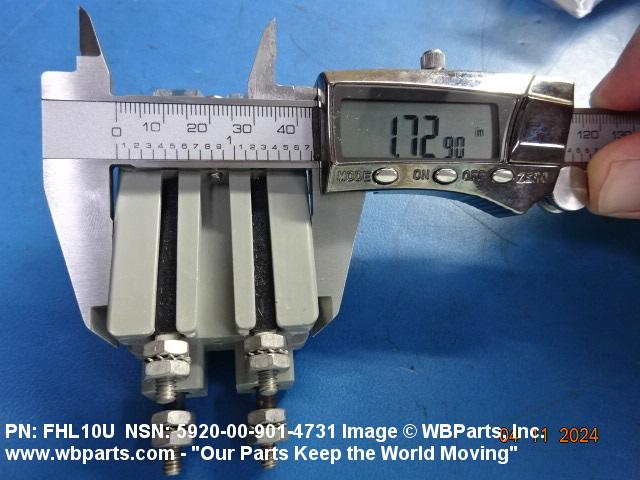

OVERALL HEIGHT | 1.812 INCHES MINIMUM AND 1.817 INCHES MAXIMUM |

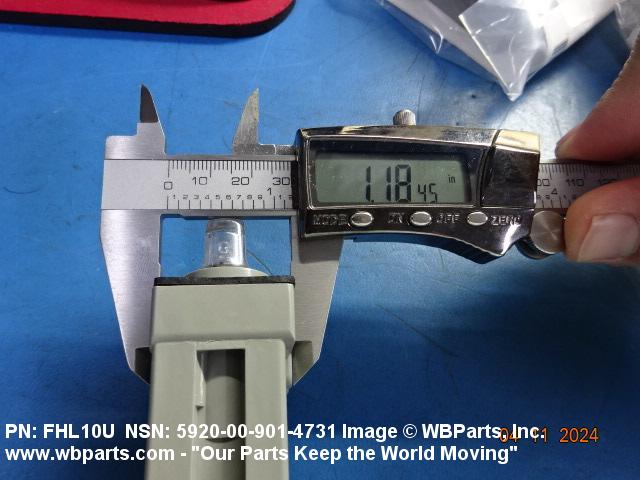

OVERALL WIDTH | 1.180 INCHES MINIMUM AND 1.185 INCHES MAXIMUM |
LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 0.798 INCHES MINIMUM AND 0.828 INCHES MAXIMUM |
MOUNTING HOLE STYLE | F23 2 BUSHING MOUNTING W/2 HOLES |
CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.933 INCHES MINIMUM AND 0.943 INCHES MAXIMUM |
BUSHING HOLE DIAMETER | 0.869 INCHES MINIMUM AND 0.879 INCHES MAXIMUM |
CENTER TO CENTER DISTANCE BETWEEN BUSHING HOLES | 0.795 INCHES MINIMUM AND 0.805 INCHES MAXIMUM |
CENTER TO CENTER DISTANCE BETWEEN KEYWAY AND BUSHING HOLE | 0.464 INCHES MINIMUM AND 0.474 INCHES MAXIMUM |
MOUNTING HOLE QUANTITY | 2 |
MOUNTING HOLE DIAMETER | 0.151 INCHES MINIMUM AND 0.161 INCHES MAXIMUM |
ACCOMMODATED FUSE LENGTH | 1.250 INCHES NOMINAL |
ACCOMMODATED FERRULE DIAMETER | 0.250 INCHES NOMINAL |

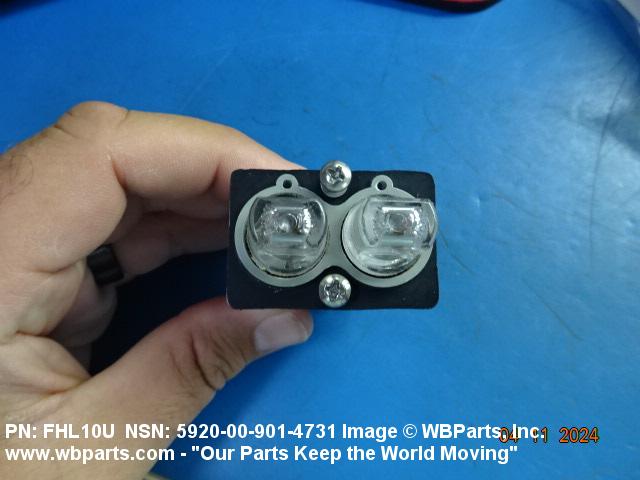

INTERRUPTION INDICATOR METHOD | NEON LAMP |
RESISTOR RATING | 120.0 KILOHMS |
INDICATING LAMP VOLTAGE RANGE IN VOLTS | 90.0 TO 250.0 |
ENVIRONMENTAL PROTECTION | SALT SPRAY PROOF |
TEST DATA DOCUMENT | 81349-MIL-F-19207 SPECIFICATION |
SPECIFICATION/STANDARD DATA | 81349-MIL-F-19207/1 GOVERNMENT SPECIFICATION |
III TERMINAL MATERIAL | ANY ACCEPTABLE |
III TERMINAL SURFACE TREATMENT | ANY ACCEPTABLE |
III BODY MATERIAL | PLASTIC, DIALLYL PHTHALATE, MIL-M-14, TYPE SDG |
III PRECIOUS MATERIAL | SILVER |
III PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
MANUFACTURERS CODE | 81349 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FHL10U |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-19207/1 |
Restrictions/Controls & Freight Information | NSN 5920-00-901-4731
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | S | Item contains silver |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
Category | Code | Description |
---|---|---|
NMF Description | 061680 | ELEC WIRING PLUGS ETC |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 658 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-00-901-4731
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
Price Validation | V | The current standard price has been validated.
|
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DF | Department of the Air Force |
Service Organization | F | U.S. Air Force |
Reparability | N | Stock Fund (except Munitions) |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DM | U.S. Marine Corps |
Service Organization | M | U.S. Marine Corps |
Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
