Product Details | CARTRIDGE FUSE
5920-00-894-2455 A fuse in which the element is inclosed in a cylindrical body. The element may be renewable. The terminals may be of varying types. It may contain a visual indication that the fusible element is severed, and may also provide an audible alarm through auxiliary circuitry. For noncylindrical items, see FUSE, INCLOSED LINK.
Part Alternates: MCL30, ATM30, JL113, KLK30, KTK30, KTK-30, 700092, 70-0092, 00070-0092, 3966B09, 3966B-09, 5150623051, 515-06230-51, 55505552, 5550555-2, 5920-00-894-2455, 00-894-2455, 5920008942455, 000700092, 008942455
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-894-2455 | 00248 ( FUSE, CARTRIDGE ) |
Drawings & Photos | NSN 5920-00-894-2455
Demand History | NSN 5920-00-894-2455
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 00070-0092 | 2023-02-33 | 544 | DIBBS |
| 515-06230-51 | 2023-02-33 | 544 | DIBBS |
| ATM30 | 2023-02-33 | 544 | DIBBS |
| KLK30 | 2023-02-33 | 544 | DIBBS |
| KTK30 | 2023-02-33 | 544 | DIBBS |
| 00070-0092 | 2019-03-87 | 950 | DIBBS |
| 515-06230-51 | 2019-03-87 | 950 | DIBBS |
| ATM30 | 2019-03-87 | 950 | DIBBS |
| KLK30 | 2019-03-87 | 950 | DIBBS |
| KTK30 | 2019-03-87 | 950 | DIBBS |
| 5920-00-894-2455 | 2016-07-207 | 1 | IT |
| 5920-00-894-2455 | 2015-07-202 | 730 | DIBBS |
| 5920-00-894-2455 | 2015-05-138 | 696 | DIBBS |
| 5920-00-894-2455 | 2015-05-125 | 696 | DIBBS |
| 5920-00-894-2455 | 2014-03-80 | 776 | DIBBS |
| 5920-00-894-2455 | 2014-03-65 | 776 | DIBBS |
| 5920-00-894-2455 | 2014-02-45 | 145 | DIBBS |
| 5920-00-894-2455 | 2014-01-30 | 145 | DIBBS |
| 5920-00-894-2455 | 2014-01-09 | 83 | DIBBS |
| 5920-00-894-2455 | 2013-12-359 | 83 | DIBBS |
| 5920-00-894-2455 | 2013-12-347 | 125 | DIBBS |
| 5920-00-894-2455 | 2013-11-332 | 125 | DIBBS |
| 5920-00-894-2455 | 2013-11-309 | 189 | DIBBS |
| 5920-00-894-2455 | 2013-10-294 | 189 | DIBBS |
| 5920-00-894-2455 | 2013-09-252 | 2351 | DIBBS |
| 5920-00-894-2455 | 2013-08-240 | 2971 | DIBBS |
| 5920-00-894-2455 | 2013-02-32 | 1798 | DIBBS |
| 5920-00-894-2455 | 2013-01-15 | 846 | DIBBS |
| 5920-00-894-2455 | 2010-04-111 | 1111 | DIBBS |
| 5920-00-894-2455 | 2009-11-323 | 767 | DIBBS |
| 5920-00-894-2455 | 2009-10-292 | 180 | DIBBS |
| 5920-00-894-2455 | 2008-11-325 | 261 | DIBBS |
| 5920-00-894-2455 | 2008-11-309 | 259 | DIBBS |
| 5920-00-894-2455 | 2008-05-141 | 500 | DIBBS |
| 5920-00-894-2455 | 2007-06-165 | 609 | DIBBS |
Cross Reference | NSN 5920-00-894-2455
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00070-0092 | 79343 | SCIENCE APPLICATIONS INTERNATIONAL CORPORATION |
| 00070-0092 | 93568 | HARSCO CORP BMY-COMBAT SYSTEMS DIV |
| 3966B-09 | 22501 | HOWELL LABORATORIES, INC. |
| 515-06230-51 | 32770 | KATO ENGINEERING INC. |
| 5550555-2 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 70-0092 | 93568 | HARSCO CORP BMY-COMBAT SYSTEMS DIV |
| ATM30 | 71424 | FERRAZ SHAWMUT INC |
| JL113 | 80531 | C AND D BATTERIES AN ALLIED CO |
| KLK30 | 74400 | HOBBS CORP |
| KLK30 | 75915 | LITTELFUSE, INC. |
| KTK-30 | 24796 | AMF INC POTTER AND BRUMFIELD DIV |
| KTK30 | 71400 | COOPER BUSSMANN INC |
| MCL30 | 72076 | FEDERAL PACIFIC ELECTRIC CO ECONOMY FUSE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-894-2455
Related Products | NSN 5920-00-894-2455
Technical Data | NSN 5920-00-894-2455
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A TUBE TYPE |

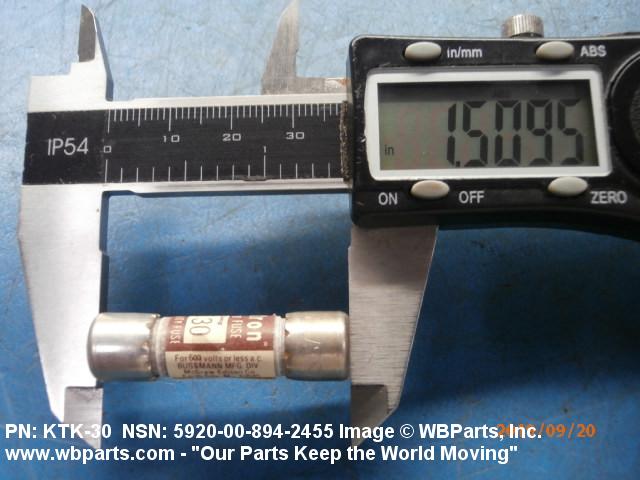

| OVERALL LENGTH | 1.500 INCHES NOMINAL |

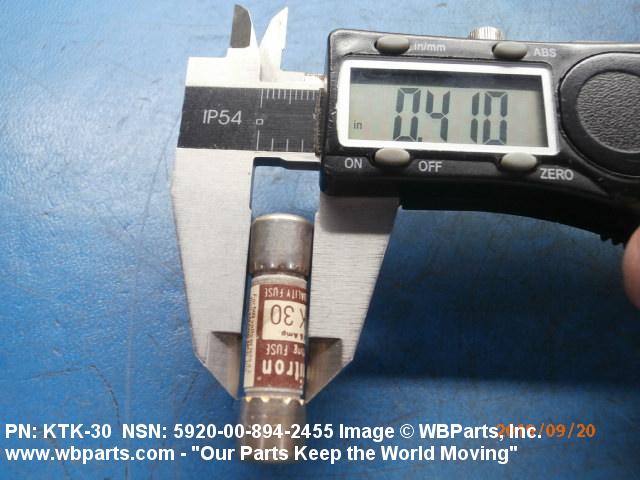

| OVERALL DIAMETER | 0.406 INCHES NOMINAL |
