NSN 5920-00-892-9695 H17B2534, H17B2-534, 265-1175-00
Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-892-9695 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: H17B2534, H17B2-534, 265-1175-00, 2651175000, 265-1175-000, 5920-00-892-9695, 00-892-9695, 5920008929695, 265117500, 008929695
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-892-9695 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
Drawings & Photos | NSN 5920-00-892-9695
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-892-9695
Related Products | NSN 5920-00-892-9695
Technical Data | NSN 5920-00-892-9695
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 2 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 450.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 4 THREADED STUD |
| SCREW THREAD DIAMETER | 0.164 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | SILVER PLATED |

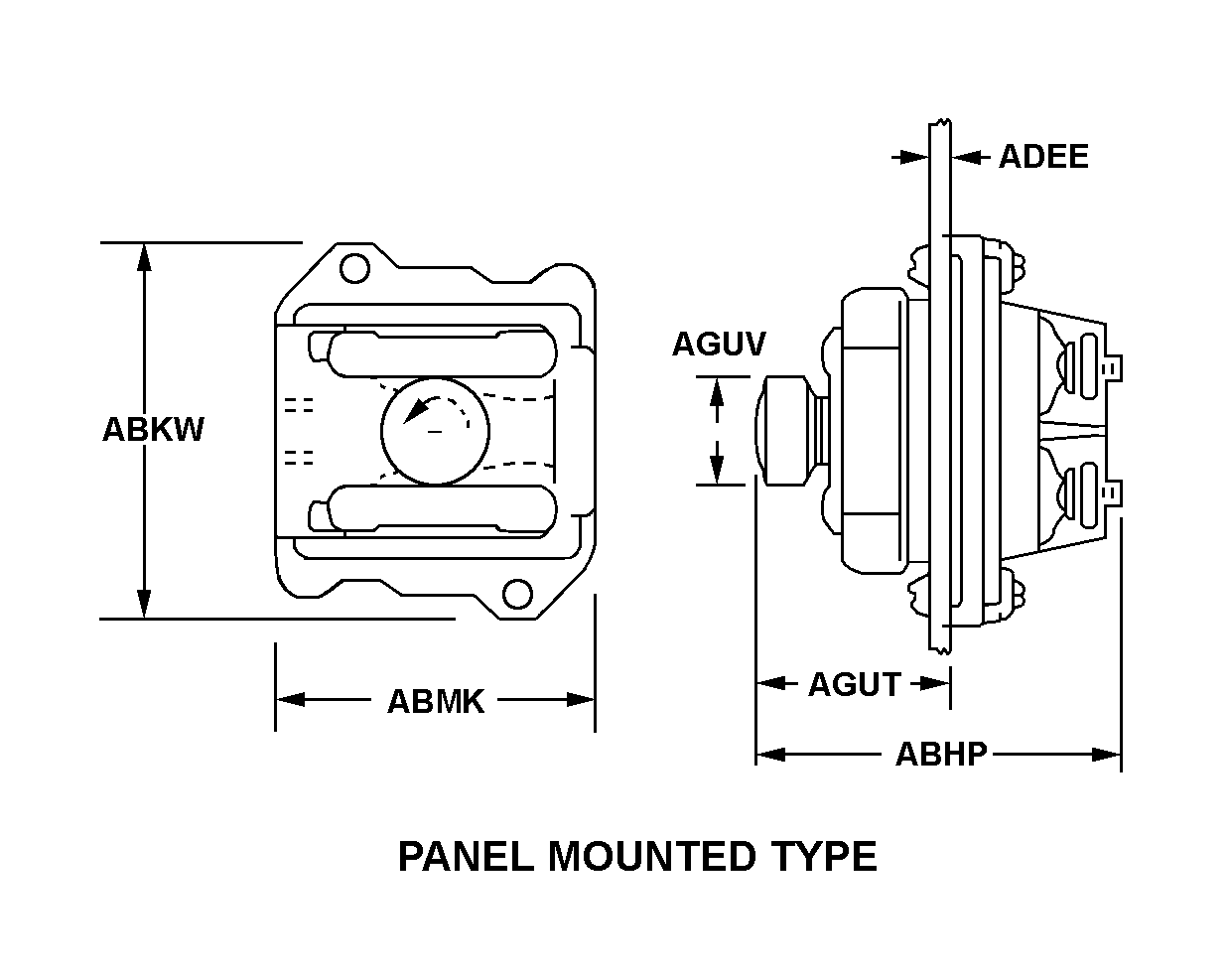

| BODY STYLE | D2 PANEL MOUNTED TYPE |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.562 INCHES NOMINAL |
| OVERALL WIDTH | 1.844 INCHES NOMINAL |
| PANEL THICKNESS | 0.125 INCHES NOMINAL |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 1.062 INCHES NOMINAL |
| CAP DIAMETER | 0.625 INCHES NOMINAL |

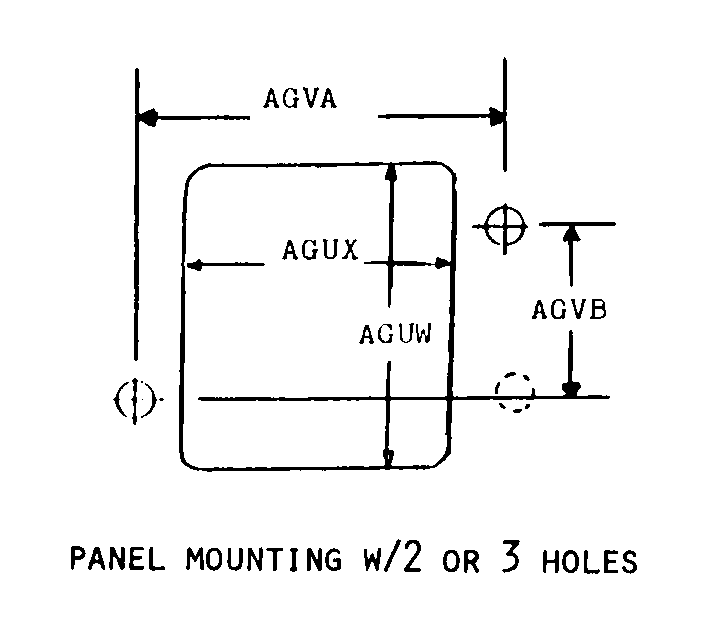

| MOUNTING HOLE STYLE | F13 PANEL MOUNTING W/2 OR 3 HOLES |
| MOUNTING HOLE HEIGHT | 1.844 INCHES NOMINAL |
| MOUNTING HOLE WIDTH | 1.562 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.968 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 1.000 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.140 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 1.500 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.406 INCHES NOMINAL |
| INTERRUPTION INDICATOR METHOD | NEON LAMP |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| III BODY MATERIAL | PLASTIC, GLASS FIBER, REINFORCED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE TREATMENT SILVER |
