Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-892-9336 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: 102912, 5920-00-892-9336, 00-892-9336, 5920008929336, 008929336
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-892-9336 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
Drawings & Photos | NSN 5920-00-892-9336
Cross Reference | NSN 5920-00-892-9336
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102912 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-892-9336
Related Products | NSN 5920-00-892-9336
Technical Data | NSN 5920-00-892-9336
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 20.0 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| CONTACT MATERIAL | BRASS |
| CONTACT SURFACE TREATMENT | COPPER AND TIN PLATED AND ZINC PLATED |

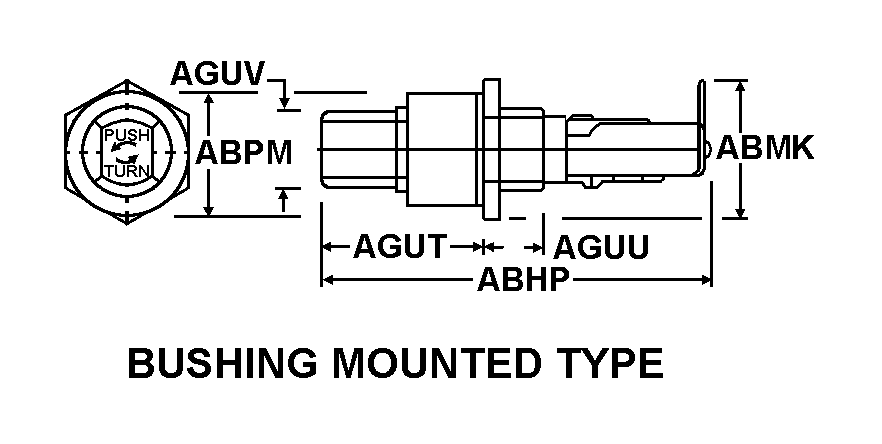

| BODY STYLE | D8 BUSHING MOUNTED TYPE |
| OVERALL LENGTH | 2.840 INCHES MAXIMUM |
| OVERALL WIDTH | 0.800 INCHES MINIMUM AND 0.840 INCHES MAXIMUM |
| BODY DIAMETER | 0.800 INCHES MINIMUM AND 0.840 INCHES MAXIMUM |
| LENGTH FROM FRONT PROTRUSION TO MOUNTING SURFACE | 1.170 INCHES MINIMUM AND 1.210 INCHES MAXIMUM |
| BUSHING THREAD LENGTH | 0.420 INCHES MINIMUM AND 0.460 INCHES MAXIMUM |

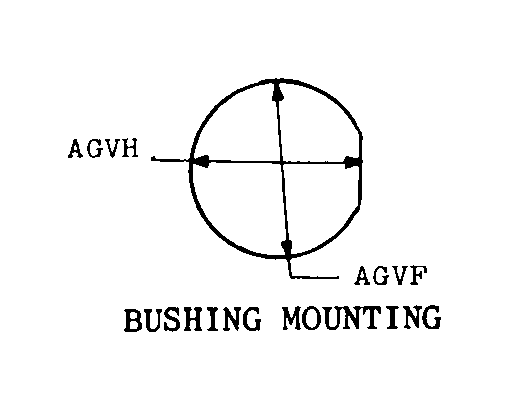

| MOUNTING HOLE STYLE | F17 BUSHING MOUNTING |
| BUSHING HOLE DIAMETER | 0.625 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| FLATTED SIDE BUSHING HOLE LENGTH | 0.570 INCHES MINIMUM AND 0.575 INCHES MAXIMUM |
| BUSHING DIAMETER | 0.625 INCHES NOMINAL |
| ACCOMMODATED FUSE LENGTH | 1.250 INCHES NOMINAL |
| ACCOMMODATED FERRULE DIAMETER | 0.250 INCHES NOMINAL |
| INTERRUPTION INDICATOR METHOD | NEON LAMP |
| RESISTOR RATING | 120.0 KILOHMS |
| INDICATING LAMP VOLTAGE RANGE IN VOLTS | 90.0 TO 250.0 |
| ENVIRONMENTAL PROTECTION | DRIPPROOF |
| III BODY MATERIAL | PLASTIC |
