NSN 5920-00-876-3312 39003, 39-003, 00-876-3312
Product Details | FUSE RETAINER
5920-00-876-3312 An item designed to be placed over the clips of a FUSEHOLDER (as modified) to prevent the fuse(s) mounted therein from being thrown from the clips under conditions of severe vibration or shock. Excludes CLAMP, ELECTRICAL; CLIP, ELECTRICAL; FUSEHOLDER (as modified); and SHELL, FUSE.
Part Alternates: 39003, 39-003, 5920-00-876-3312, 00-876-3312, 5920008763312, 008763312
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-876-3312 | 08096 ( RETAINER, FUSE ) |
Drawings & Photos | NSN 5920-00-876-3312
Cross Reference | NSN 5920-00-876-3312
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 39-003 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5920-00-876-3312
Technical Data | NSN 5920-00-876-3312
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

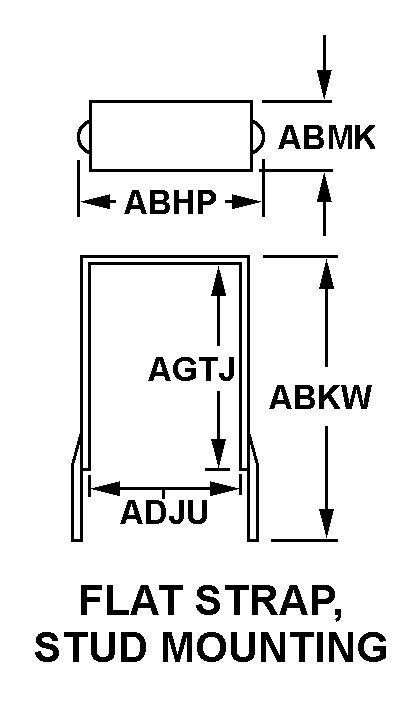

| STYLE DESIGNATOR | 10B FLAT STRAP, STUD MOUNTING |
| OVERALL LENGTH | 0.219 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 0.031 INCHES NOMINAL |
| INSIDE LENGTH | ANY ACCEPTABLE |
| DISTANCE FROM MOUNTING SURFACE TO RETAINING SURFACE | ANY ACCEPTABLE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 STUD SINGLE MOUNTING FACILITY |
| MOUNTING STUD LENGTH | 0.250 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.210 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUP |
Restrictions/Controls & Freight Information | NSN 5920-00-876-3312
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5920-00-876-3312
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
