Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-861-6091 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: 23014541, 2301454-1, 284107, 60097029801, 6009-702980-1, 5920-00-861-6091, 00-861-6091, 5920008616091, 008616091
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 OCT 1967 | 00-861-6091 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |

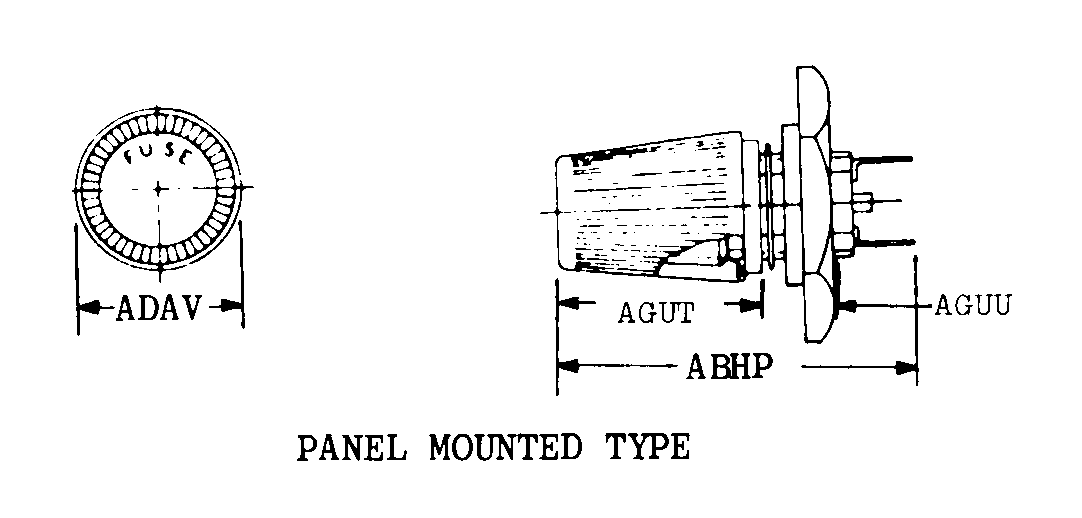

Drawings & Photos | NSN 5920-00-861-6091
