Product Details | EXTRACTOR POST FUSEHOLDER
5920-00-858-8161 A fuseholder in which the clips or contacts for electrical connection to the fuse are mounted in a tubular body or similar inclosure which surrounds the fuse. It generally contains a removable cap or knob. It includes in-the-line type and those designated as miniature type FUSEHOLDER (as modified).
Part Alternates: AA55504, AA55504/2-001B, AA555042001B, HTB44I, HTB-44I, 100F01001, 129758, 342048, 342048A, 5920-00-858-8161, 00-858-8161, 5920008588161, 008588161
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 OCT 1967 | 00-858-8161 | 28909 ( FUSEHOLDER, EXTRACTOR POST ) |
Drawings & Photos | NSN 5920-00-858-8161
Demand History | NSN 5920-00-858-8161
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-858-8161 | 2018-12-339 | 614 | DIBBS |
| 5920-00-858-8161 | 2016-06-174 | 523 | DIBBS |
| 5920-00-858-8161 | 2013-08-233 | 250 | DIBBS |
| 5920-00-858-8161 | 2013-03-87 | 174 | DIBBS |
| 5920-00-858-8161 | 2010-05-121 | 395 | DIBBS |
Cross Reference | NSN 5920-00-858-8161
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100F01001 | 50816 | SYKES DATATRONICS INC |
| 129758 | 96795 | GOULD INSTRUMENT SYSTEMS INC |
| 129758 | C1389 | LING DYNAMIC SYSTEMS GMBHMESSTECHNIK DIVISION |
| 342048 | 75915 | LITTELFUSE, INC. |
| 342048A | 75915 | LITTELFUSE, INC. |
| AA55504 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA55504/2-001B | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| HTB-44I | 71400 | COOPER BUSSMANN INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-858-8161
Related Products | NSN 5920-00-858-8161
Technical Data | NSN 5920-00-858-8161
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 1 |
| CURRENT CARRYING RATING IN AMPS | 20.0 |
| VOLTAGE IN VOLTS | 250.0 |
| FUSE TERMINAL TYPE ACCOMMODATED | FERRULE |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | NICKEL PLATED |

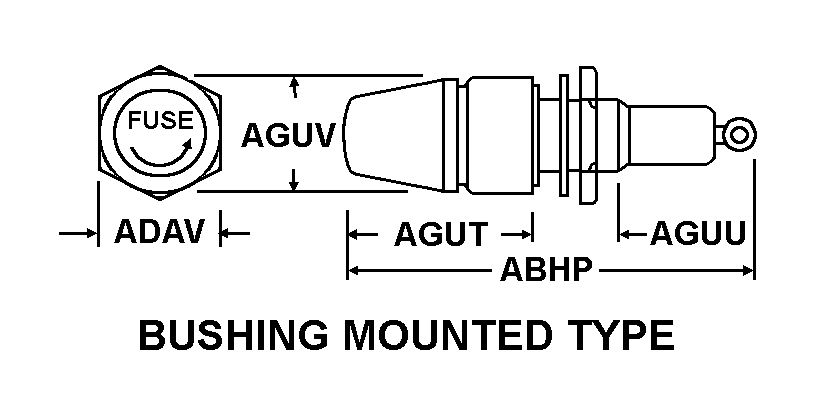

| BODY STYLE | D7 BUSHING MOUNTED TYPE |
