NSN 5920-00-857-8418 AA55509, A-A-55509, AA55509015
Product Details | INDICATOR ALARM FUSE
5920-00-857-8418 A fuse in which the element may or may not be enclosed. It is specifically designed to close an auxiliary circuit. When the fuse element is broken, it may provide a visual signal.
Part Alternates: AA55509, A-A-55509, AA55509015, A-A-55509-015, D27087A11, GMT7 1-2, GMT712, 018-000025, 264-0609-00, 401 07.5, 401075, 40966211, 409662-11, 5920-00-857-8418, 00-857-8418, 5920008578418, 018000025, 264060900, 008578418
Electrical and Electronic Equipment Components | Fuses, Arrestors, Absorbers, and Protectors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-857-8418 | 00250 ( FUSE, INDICATOR ALARM ) |
Drawings & Photos | NSN 5920-00-857-8418
Demand History | NSN 5920-00-857-8418
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5920-00-857-8418 | 2016-05-123 | 1068 | DIBBS |
| 5920-00-857-8418 | 2015-06-175 | 421 | DIBBS |
| 5920-00-857-8418 | 2013-06-164 | 428 | DIBBS |
| 5920-00-857-8418 | 2012-10-284 | 166 | DIBBS |
| 5920-00-857-8418 | 2012-09-248 | 103 | DIBBS |
| 5920-00-857-8418 | 2011-04-115 | 100 | DIBBS |
| 5920-00-857-8418 | 2010-03-63 | 66 | DIBBS |
| 5920-00-857-8418 | 2009-10-293 | 136 | DIBBS |
Cross Reference | NSN 5920-00-857-8418
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 018-000025 | 74861 | CHARLES INDUSTRIES, LTD. DIV TELECOM/MARINE AND INDUSTRIAL |
| 264-0609-00 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 401 07.5 | 75915 | LITTELFUSE, INC. |
| 409662-11 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| A-A-55509 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-55509-015 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| D27087A11 | 04773 | GTE COMMUNICATION SYSTEMS CORP |
| GMT7 1-2 | 71400 | COOPER BUSSMANN INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5920-00-857-8418
Related Products | NSN 5920-00-857-8418
Technical Data | NSN 5920-00-857-8418
| Characteristic | Specifications |
|---|---|

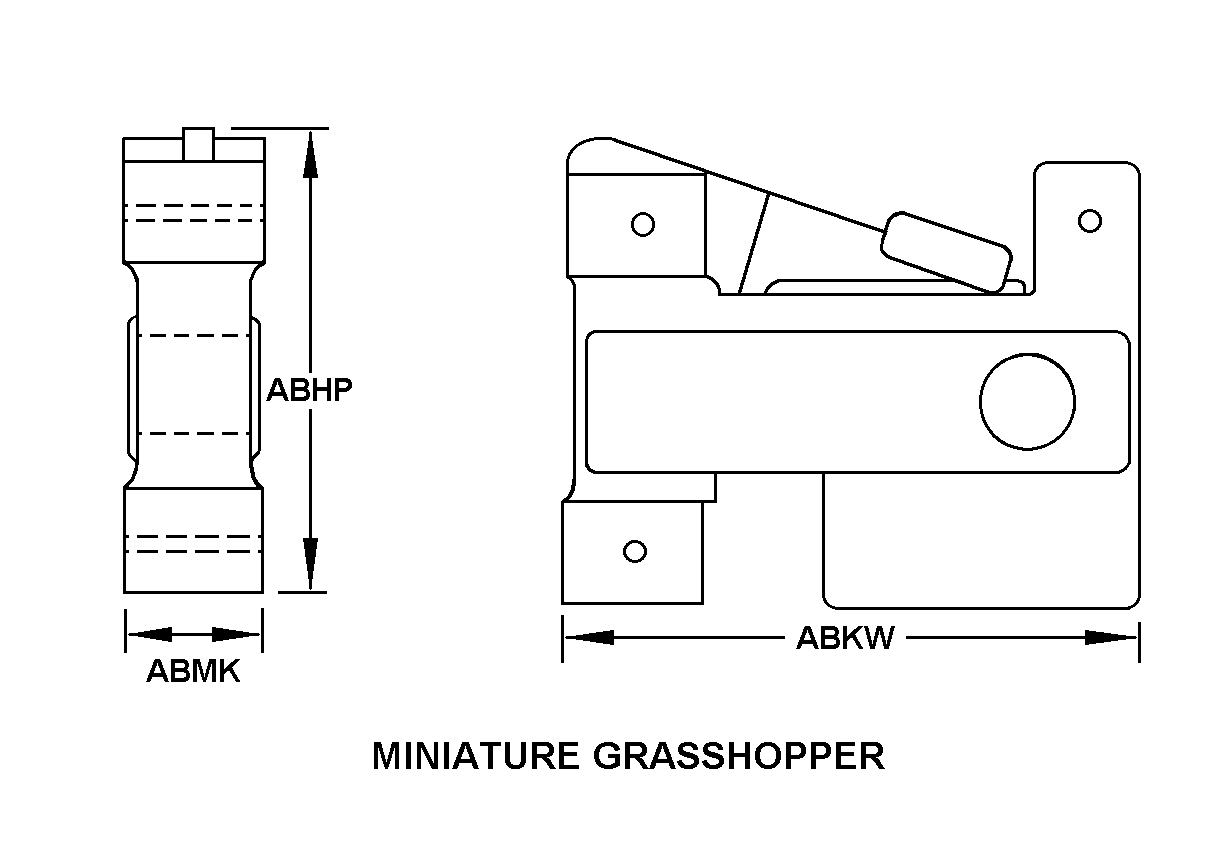

| BODY STYLE | 1C MINIATURE GRASSHOPPER |
